Communication
11.2 PROFINET
S7-1200 Programmable controller
950 System Manual, V4.2, 09/2016, A5E02486680-AK

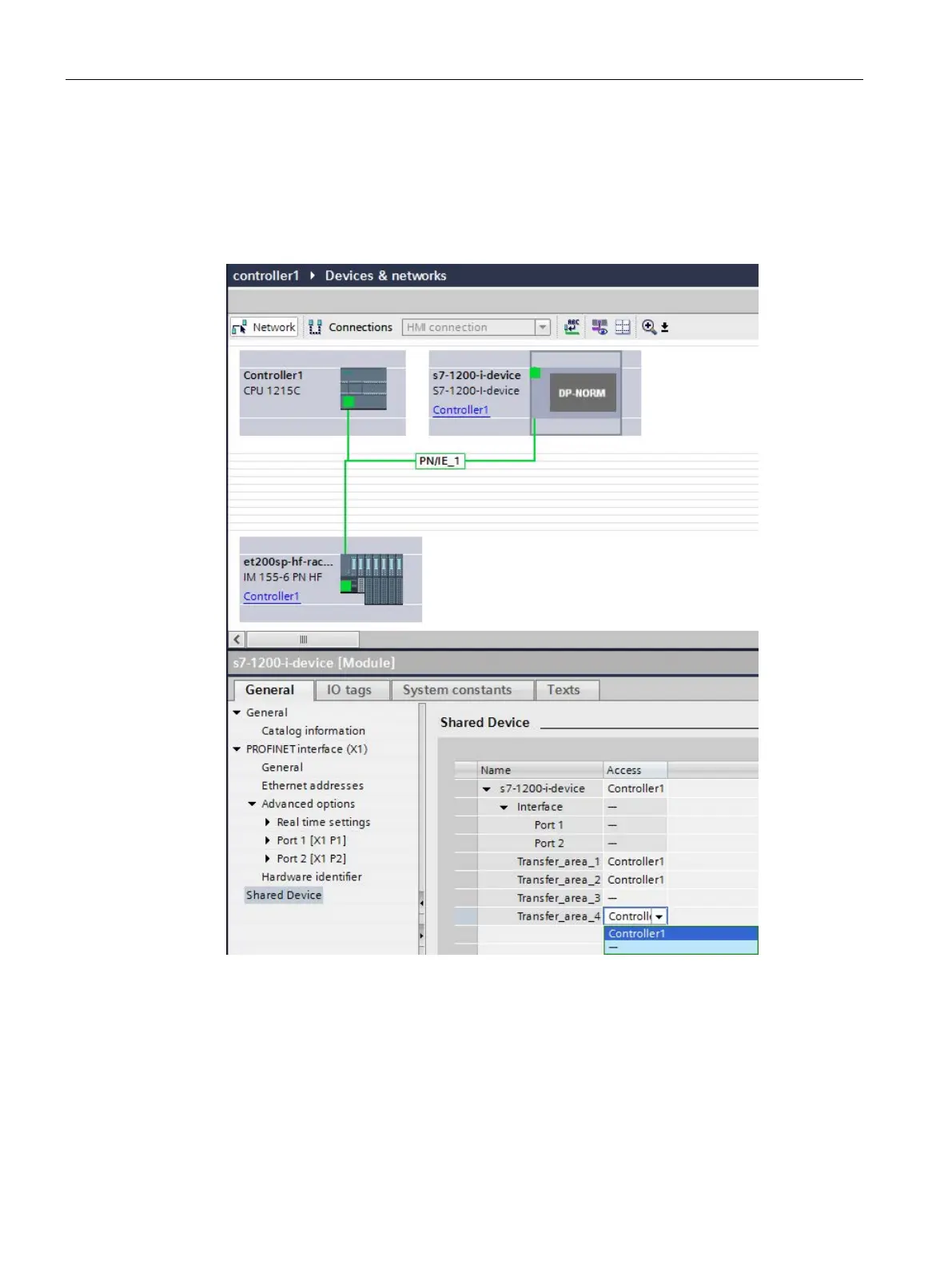

7. Select the "Shared device" area in the properties of the I-device:
– In the table, all transfer areas and the PROFINET interface are assigned to the local
IO controller (Controller1).
– Define the transfer areas to which the Controller1 CPU should
have access. Select
the "---" entry for these areas. These transfer areas are provided for Controller2.
