149 Programmable Hardware Manual (PHM)
© Tibbo Technology Inc.
The NB1010 board is functionally equivalent to the EM1000 embedded module. The
board features Ethernet, as well as optional Wi-Fi and GPRS network interfaces. If
you only need the Ethernet interface, then you may use the NB1000 board.
The NB1010 product includes the LB1000 LED board as well. The NB1010 and the
LB1000 come assembled together and interconnected by the LC1000 cable.
Additionally, the NB1010 comes with the IC1000 interboard cable. Therefore, you
don't need to order the LB1000, LC1000, or IC1000 separately when purchasing the
NB1010 board.
Read carefully the explanation about external antennas that should be used
when the NB1010 is ordered with Wi-Fi and/or GPRS options.

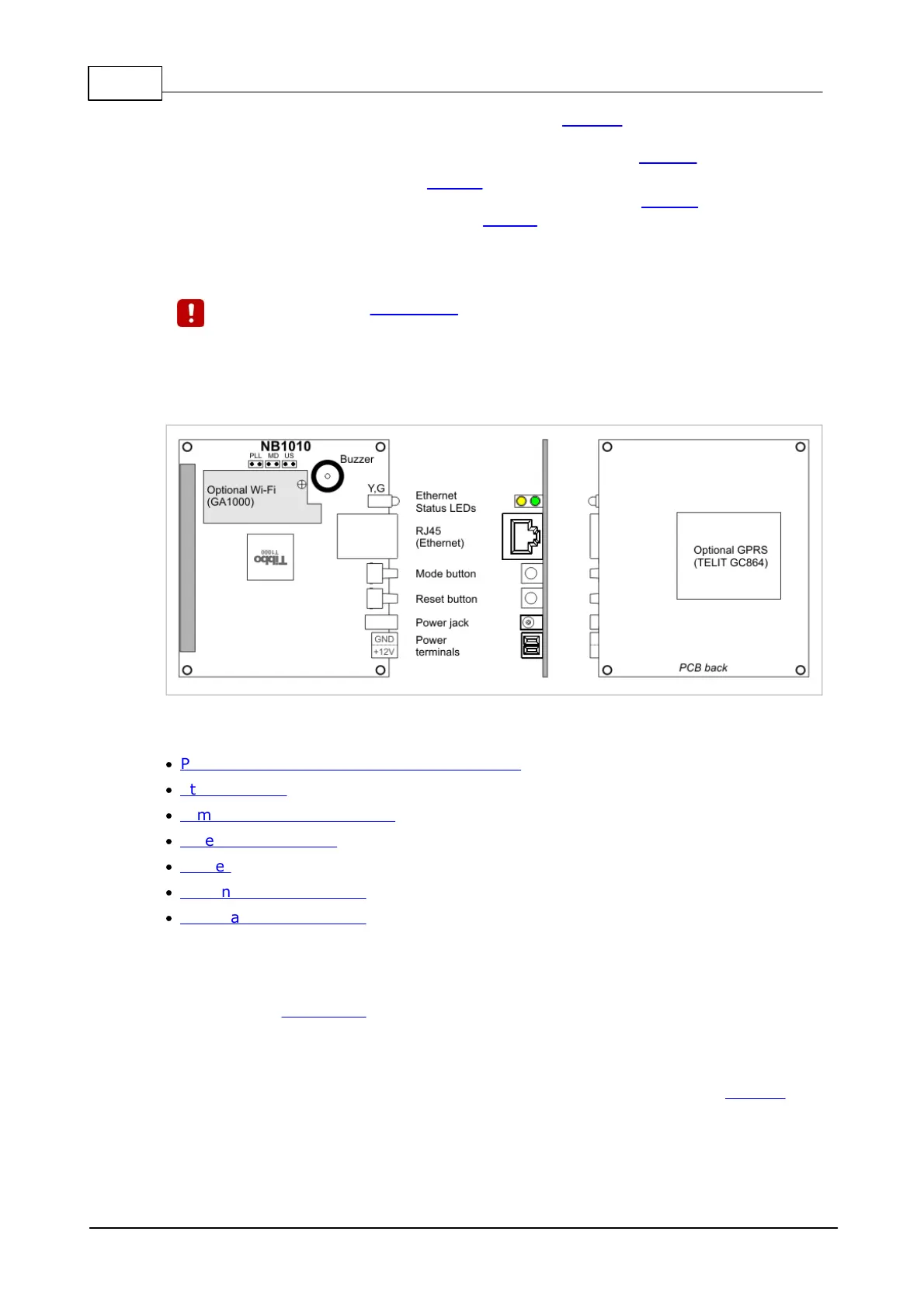

NB1010 Connectors and Controls
Refer to the following topics to learn more about the NB1000:
·
Power Jack, Terminals, and Power Regulator
·
Ethernet Jack
·
Jumpers, Buttons, and LEDs
·
External LED Control
·
Buzzer
·
Optional Wi-Fi Interface
·
Optional GPRS Interface
Power Jack, Terminals and Power Regulator
Power jack of the NB1010 accepts "small" power connectors with 3.5mm diameter.
Use 12VDC/1A APR-P0008 (APR-P0009, or APR-P0010) power adaptor supplied by
Tibbo or similar adaptor. On the power jack, the ground is "on the outside", as
shown on the figure below.
Another way to connect power is through the power terminals located next to the
power jack. Ground and "+" terminal positions are shown on the NB1010 drawing.
Acceptable supply power range is 10-18VDC (12VDC nominal).
