Tibbo EM1000 User Manual

218Boards
© Tibbo Technology Inc.
n6
Aver
.
33.0
PCB outline dimension
n7
Aver
.
9.0
Horizontal distance between LEDs (present on the EM1202EV-RS
only)
n8
Aver
.
15.0
Distance from the vertical centerline of the PCB to the vertical
centerline of the power jack (present on the EM1202EV-RS and "-
TM" only)
n9
Max.
5.1
Power jack width (the power jack is present on the EM1202EV-RS
and "-TM" only)
n1
0
Aver
.
14.5
Distance from the vertical centerline of the PCB to the vertical
centerline of the setup button
h1
Max.
7.5
Power jack height (the power jack is present on the EM1202EV-RS
and "-TM" only)
h2
Aver
.
5.5
Distance from the bottom surface of the PCB to the center of the
setup button
h3
Max.
2.5
Height of the tallest component on the bottom side of the PCB
h4
Aver
.
6.2
Distance from the bottom surface of the PCB to the centerline of
the DB9M connector (present on the EM1202EV-RS only)
p
Aver
.
2.0
TTL connector pin pitch (connector present on the EM1202EV-TM
and "-TS" only)
Dimensions are for reference only. Tibbo assumes no responsibility for any errors in
this Manual, and does not make any commitment to update the information
contained herein.
Ordering Info and Specifications

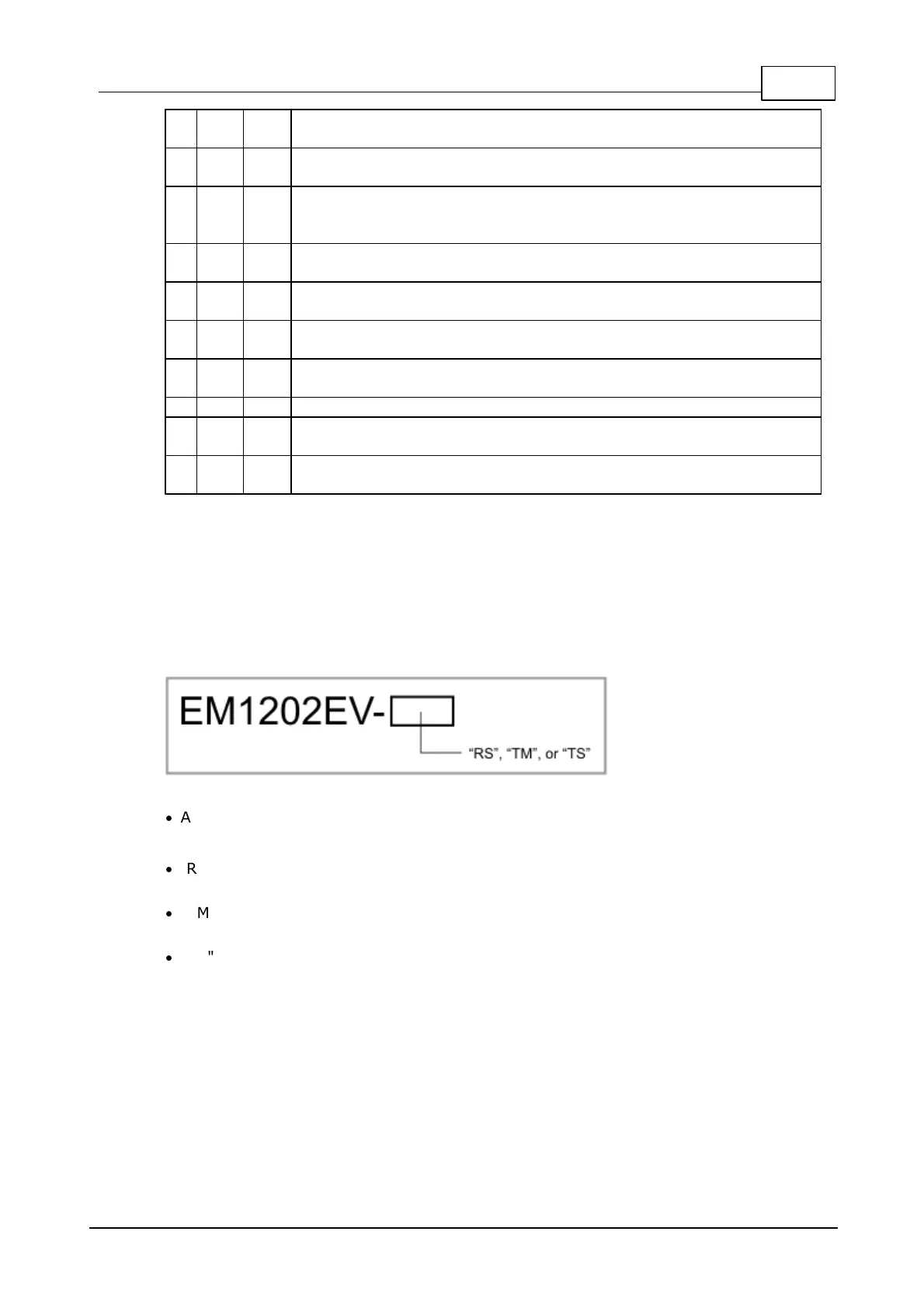

Device numbering scheme is as follows:
· All EM1202EV boards are equipped with 1024KBytes of flash memory.
· "RS" version: "true" RS232 port on the DB9M connector, power jack and "12V"-to-
3.3V power regulator.
· "TM" version: TTL serial port on the pin header connector, power jack and "12V"-
to-3.3V power regulator.
· "TS" version: TTL serial port on the pin header connector, direct 3.3V power
input.
"TM" and "TS" versions are not standard and cannot be ordered from our online
store. Contact Tibbo if you wish to order DS1206B devices in "TM" or "TS"
configurations.
Examples of valid model numbers

Tibbo EM1000 Specifications

General

Brand	Tibbo
Model	EM1000
Category	Control Unit
Language	English
