Tibbo EM1000 - Assembled Retail Package

To Next Page

To Previous Page

436Tibbo Project System (TPS)

Assembled Retail Package

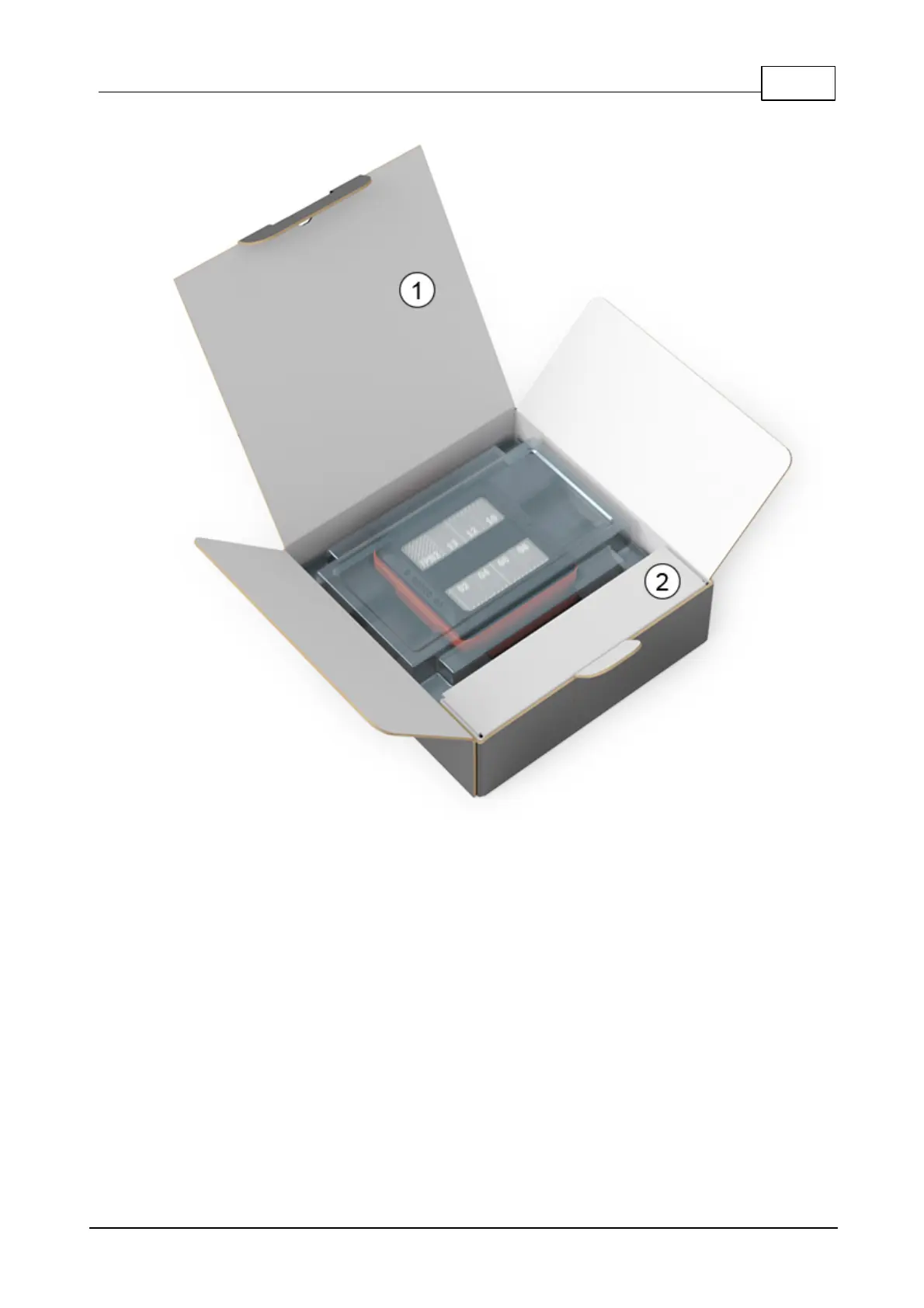

This is how the assembled retail package looks. The accessories box (2) goes into

the retail package box (1). The accessories box is meant for transporting Wi-Fi

antennas, wires, cables, etc.
