297 Programmable Hardware Manual (PHM)
© Tibbo Technology Inc.
7.2.9.13

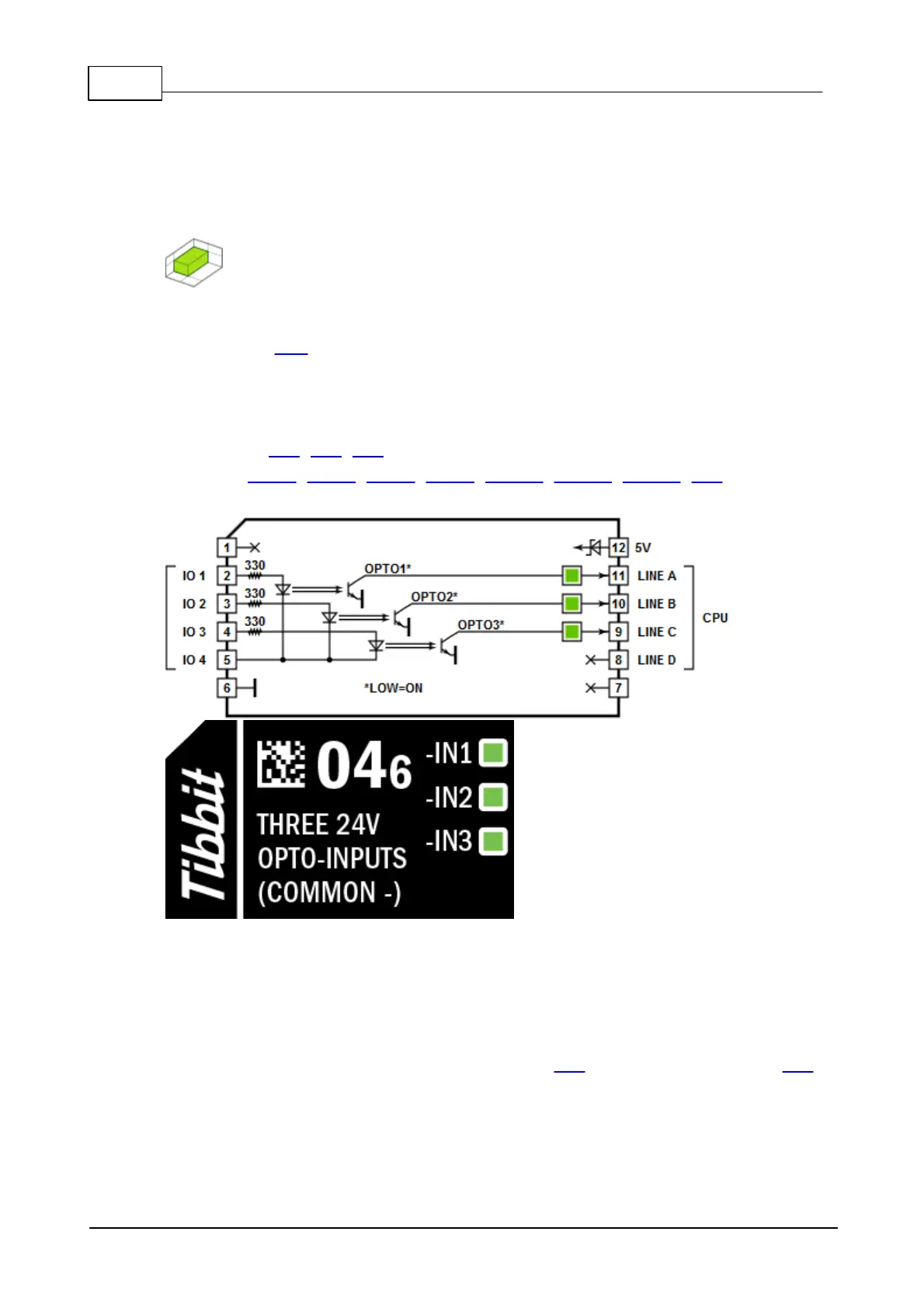

#04-6, M1S: Three 24V Isolated Inputs, Common (-)
Function: Three optically isolated inputs with common (-). Inputs are fully isolated
from system ground.
Form factor: M1S
Category: Input module
Special needs: ---
Power requirements: 5V/35mA
Mates with: #19, #20, #21
See also: #04-1, #04-2, #04-3, #04-4, #04-05, #04-07, #04-08, #54
Details
This Tibbit is optimized for the nominal input voltage of 24V. If no external resistor is
added these inputs activate at about 13V. Forward current should not exceed
10mA, and this caps the maximum input voltage at around 30V. Add external
resistors if you need to apply higher input voltage.
Combine this Tibbit with terminal block devices -- #20 (nine terminal blocks) or #21
(four terminal blocks).
LEDs
