Tibbo EM1000 User Manual

257 Programmable Hardware Manual (PHM)
© Tibbo Technology Inc.
7.2.1.1
M1 "Narrow" Tibbits
M1 Tibbits are single-width modules occupying one "M" socket on the standard tile.
Their footprint is roughly 7 x 14 "squares" (one "square" is 2.54 x 2.54 mm).
M1 devices have four I/O lines for interfacing with the outside world. We found four
to be the magic number. it is just right for a wide variety of I/O functions.

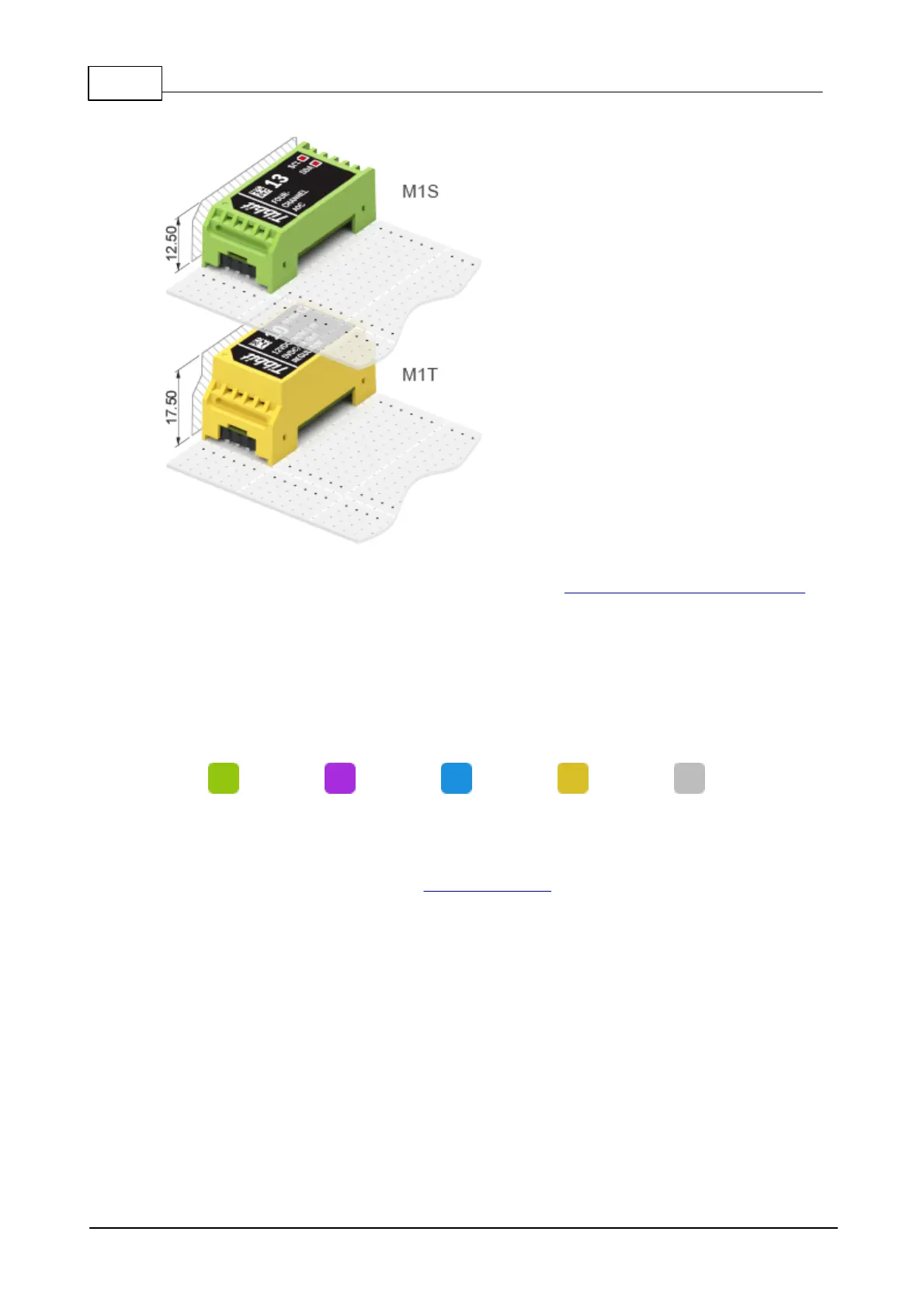

M1s can be short (M1S) or tall (M1T). Most M1 devices fit into "short" 12.5mm
shells, selected few are 17.5mm "tall".
Each M1 module's color will tell you if it is an...
Input
module
Output
module
Input/
Output
Power
supply
Blank
module
M1 Tibbits can incorporate up to four status LEDs.
I/O pins
M1 modules have 2 rows of 6 pins:
