503 Programmable Hardware Manual (PHM)
© Tibbo Technology Inc.
Wiring the Probes to other hardware
Although the Cable Probes are primarily intended for use with TPS devices, they can
also be wired to other hardware. When connecting to third-party hardware devices,
remember to add a pull-up resistor (of about 2KOhm) to the SCL line of Probes
##1~3 (this is not necessary for wiring to TPS devices).
Testing Cable Probes
Perhaps the most convenient way of testing the Cable Probes ##01~0-3 is by using
a TPS2(G2) system running one of these testing apps:
·
Sensor-Tester-UI — Automatically identifies the connected Probe and displays
its readings on the LCD of a TPS2L(G2) device. You can find this app and its
description here: https://github.com/tibbotech/Sensor-Tester-UI.
·
Sensor-Tester-Web — offers the same functionality, but shows the readings on
a web page. You can find this app and its description here:
https://github.com/tibbotech/Sensor-Tester-Web.
We recommend testing the Cable Probe #04 using this application:
http://tibbo.com/programmable/applications/office_aircon_control.html.

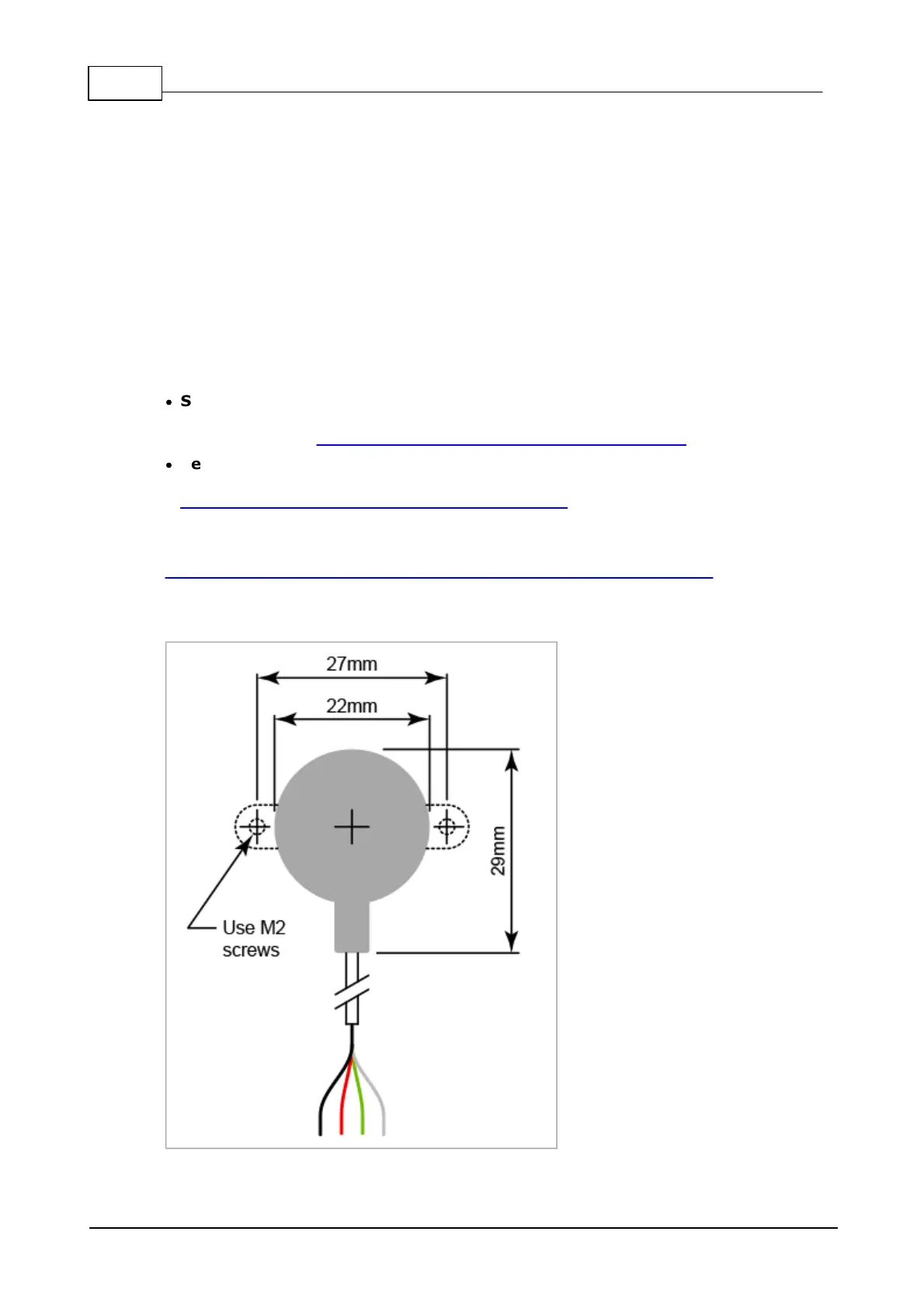

Outline Dimensions
