395 Programmable Hardware Manual (PHM)
© Tibbo Technology Inc.
·
When the jumpers are in the 1-2 position, four power lines from the RJ45 jack are
connected to four I/O lines of (S11). Under this arrangement you can install an M1
PoE device into the (S11), or M2 PoE device into the (S9)-(S11).
·
When the jumpers are in the 2-3 position, the RJ45 jack is disconnected from the
socket (S11). The socket (S11) is instead connected to (S12) in a "standard tile
way".
7.3.1.4

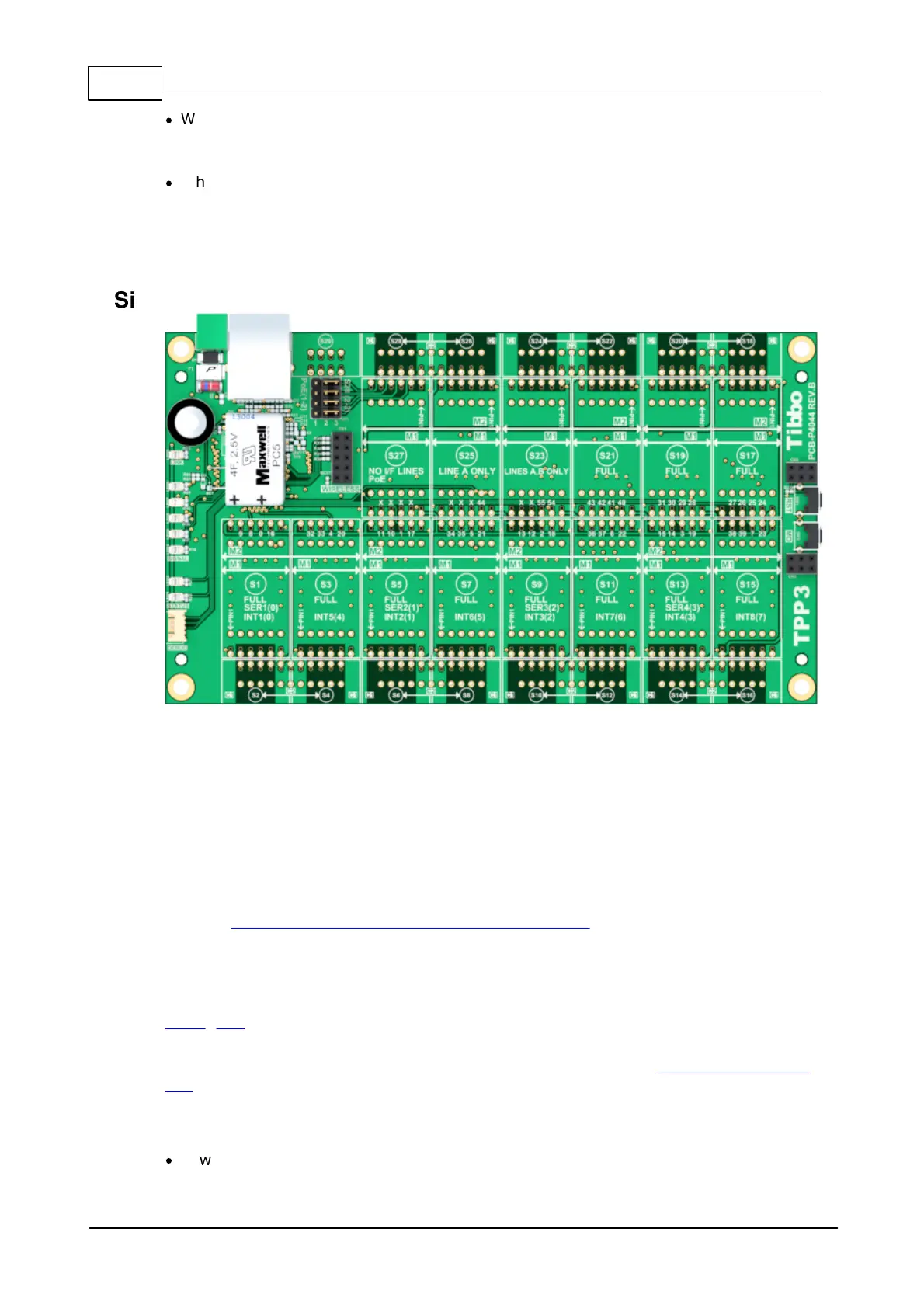

Size 3 Tibbo Project PCB (TPP3)
Introduction
Size 3 Tibbo Project PCB (TPP3) runs Tibbo OS and is programmable in Tibbo BASIC
and Tibbo C.
TPP3 is ideal for applications that require no human-machine interface (HMI) while
calling for a significant number of I/O lines and/or functions.
The board can be used to replace dumb PLC controllers or work as a safety,
security, or access control device. The TPB3 is also ideal for factory, lab, shop,
building, hotel, and home automation projects.
Offering 7 tiles for a total of 14 "M" and 14 "C" sockets, the TPP3 can be used to
construct devices with up to four full serial ports, up to 25 relays, or up to 47 opto-
inputs, PWM, or open-collector outputs.
Further, the generous number of available Tibbit sockets means you can increase
your system's versatility by offering multiple power supply options, such as +5V,
+12V, PoE, etc. You can also install multiple power supply Tibbits to increase total
available power or provide power redundancy.
This product can be used as a bare board, or assembled into a size 3 Tibbo Project
Box.
Hardware features
·
Powered by Tibbo OS (TiOS)
