Tibbo EM1000 User Manual

45 Programmable Hardware Manual (PHM)
© Tibbo Technology Inc.
L
Max
.
38.
4
Module length
W
Max
.
28.
4
Module width
H
Max
.
5.5
Module height
H
'
Max
.
11.
0
Module height with the WA2000 module soldered into the
EM1000 module
h
Max
.
4
Additional height added by the supercapacitor ("-S" option
devices only)
I
Min
.
6.0
Lead length
p
Ave
r.
2.5
4
Pin pitch
Dimensions are for reference only. Tibbo assumes no responsibility for any errors in
this Manual, and does not make any commitment to update the information
contained herein.
Ordering Info and Specifications

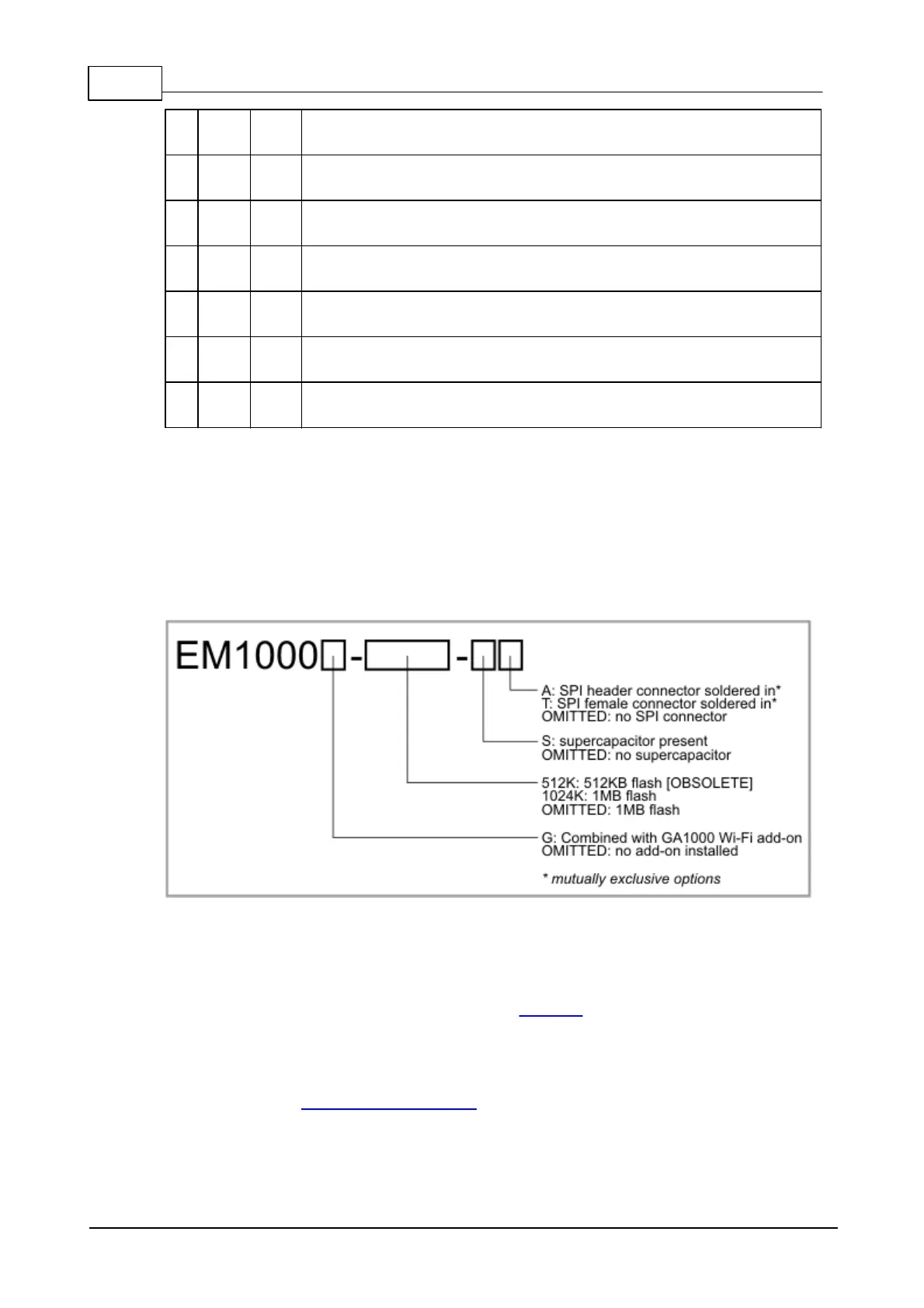

Device numbering scheme is as follows:
"A" and "T" versions are not standard and cannot be ordered from our online store.
Contact Tibbo if you wish to order EM1000 devices with "A" or "T" options.
512K devices are no longer available.
If the flash memory size is omitted, 1024K option is implied.
To order the EM1000 in combination with the WA2000 Wi-Fi/BLE add-on module, use
the "EM1000NC" ordering code for the WA2000C (chip antenna onboard), and
"EM1000NU" ordering code for the WA2000U (coaxial connector for an external
antenna). These codes mean that the EM1000 module will be supplied with the
WA2000 add-on soldered into it (the resulting mechanical structure is presented as
"option B" on the Mechanical Dimensions drawing).
