EM500 "MiniMo" BASIC/C-programmable
Ethernet Module
NOT RECOMMENDED FOR NEW DESIGNS
Introduction

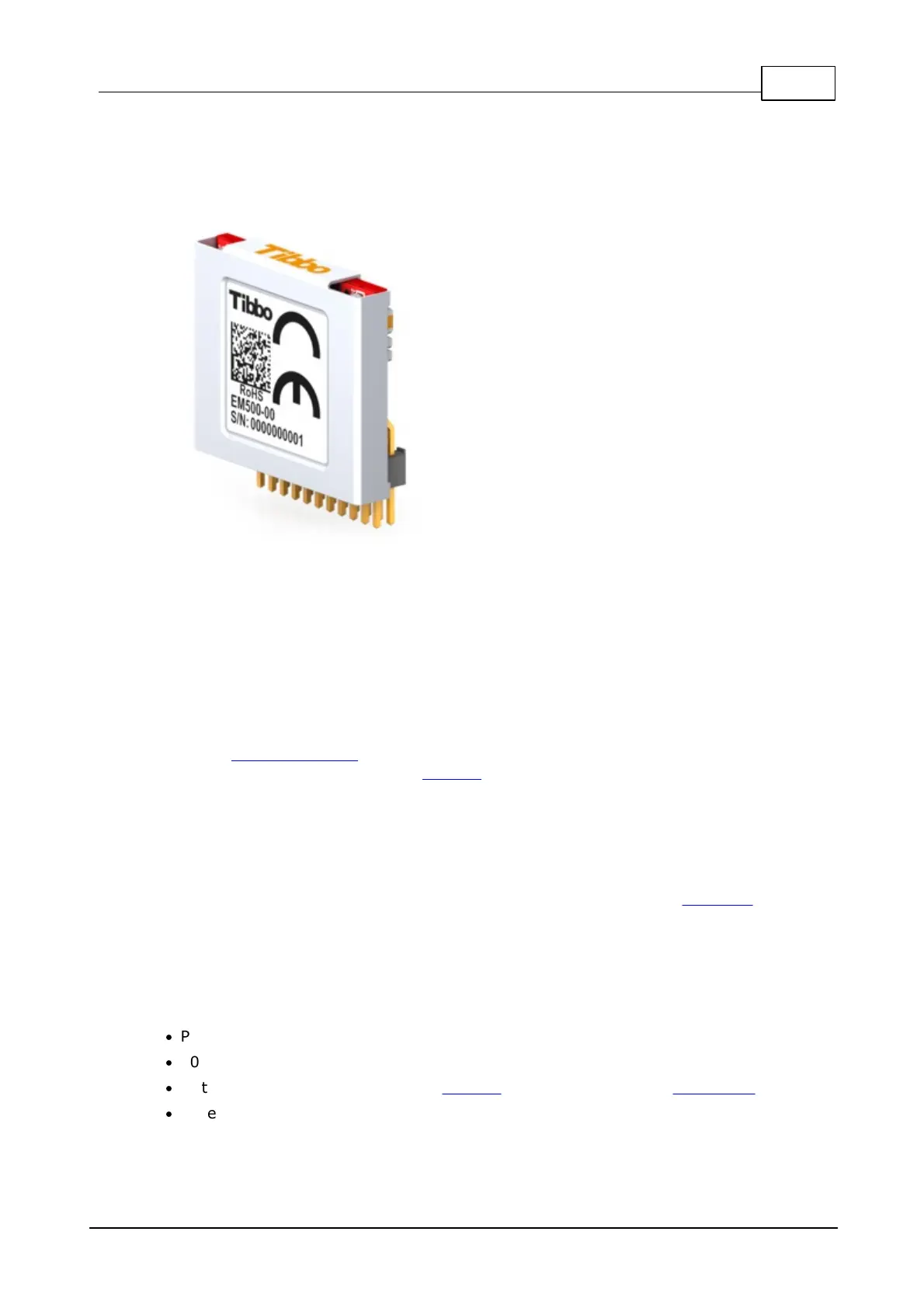

The EM500 "MiniMo"* device is a miniature stand-alone BASIC-programmable
embedded module, designed to be used in combination with a standard
LED/magnetics RJ45 jack. The combined footprint of the EM500 and a standard jack
is only 28.5x18.5mm.
The module's hardware mix, which includes 10/100BaseT Ethernet port, a serial port,
and 8 I/O lines, has been carefully tailored to address the basic needs of lightweight
network-enabled control devices. If your application has a need to store data in
files, an external flash IC can be connected to the EM500. The EM500 also supports
Wi-Fi communications (using the GA1000 add-on board).
Compact dimensions, innovative "vertical slice" mechanical design, low power
consumption, and patented dual-function LED control lines make the module an
excellent fit for miniature, cost-sensitive designs.
The EM500 is fully supported by TIDE software and a dedicated EM500 platform that
covers all hardware facilities of the module (see TIDE, TiOS, Tibbo BASIC, and Tibbo
C Manual). For convenient testing and evaluation Tibbo offers the EM500EV
development system.
The EM500 can be ordered standalone or in combination with an industry-standard
RJ45 jack and/or other discrete components required to complete a working circuit.
Hardware features
·
Powered by Tibbo OS (TiOS).
·
10/100BaseT auto-MDIX Ethernet port (no magnetics).
·
Optional Wi-Fi interface (requires GA1000 add-on module to be connected).
·
One serial port (CMOS-level):
- Baudrates of up to 460'800bps;
- None/even/odd/mark/space parity modes;
To Next Page
