DS110x
Introduction
The DS110x is a family of compact BASIC-programmable controllers designed for
serial-over-IP and serial control applications.
The DS110x family currently includes:
· The DS1100 serial controller with a single-channel RS232 port, this model targets
cost-sensitive applications;
· The DS1101 serial controller with the 3.5-channel RS232 port;
· The DS1102 serial controller with the universal RS232 (3-channel)/422/485 port.
The family is fully supported by TIDE software.
DS110x devices ship preloaded with a fully functional serial-over-IP application.
Written in Tibbo BASIC, the application is compatible with Tibbo Device Server
Toolkit software, comes with full source codes, and can be modified by the user.

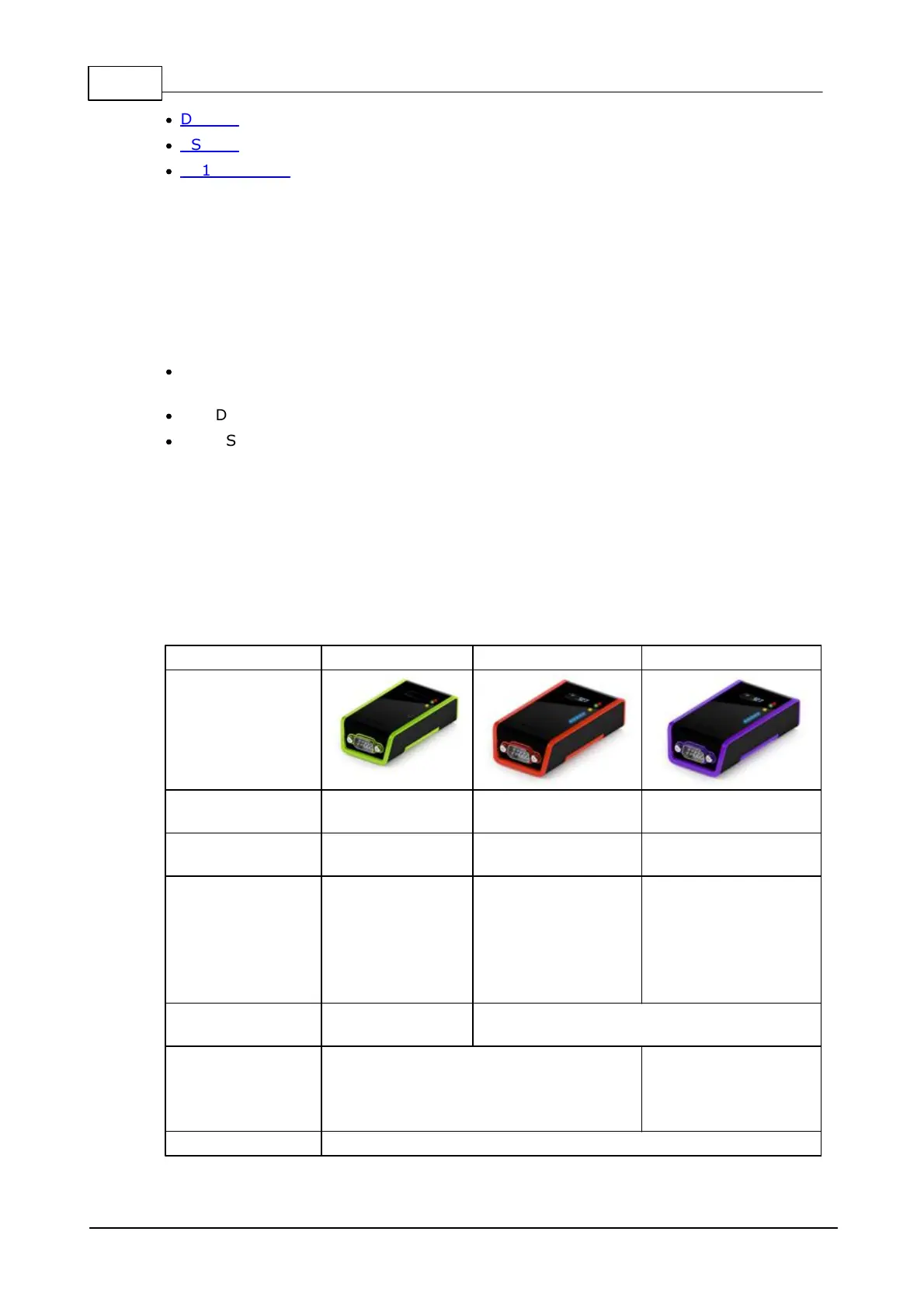

Differentiating features
DS1100
DS1101
DS1102
Device color
Serial port
RS232 port on
DB9M connector
RS232 port on
DB9M connector
RS232/422/485 port
on DB9M conn.
No of serial port
channels
1 channel
3.5 channels
3 channels (RS232),
1 ch.(RS422/485)
Serial port lines
TX, RX, RTS,
CTS, DTR, DSR
TX, RX, RTS, CTS,
DTR, DSR, DCD
TX, RX, RTS, CTS,
DTR, DSR (RS232)
TX, RX, RTS, CTS
(RS422)
TX, RX half-duplex
(RS485)
Maximum
baudrate
Up to
115200bps
Up to 921600bps
Flow and
direction control
Optional RTS/CTS flow control
Opt. RTS/CTS flow
control (232/422)
Direction control
(RS485)
Parity modes
None/even/odd/mark/space parity
