- Net — controls the Ethernet port;

- Ser — in charge of serial channels;

- Ssi — implements up to four serial synchronous interface (SSI) channels,

supports SPI, I2C, clock/data, etc.;

- Io — handles I/O lines, ports, and interrupts;

- Fd — manages flash memory file system and direct sector access;

- Stor — provides access to the EEPROM;

- Romfile — facilitates access to resource files (fixed data);

- Pppoe — provides access to the Internet over an ADSL modem;

- Ppp — provides access to the Internet over a serial modem (GPRS, POTS, etc.);

- Pat — "plays" patterns on green and red status LEDs;

- Button — monitors the setup button;

- Sys — in charge of general device functionality.

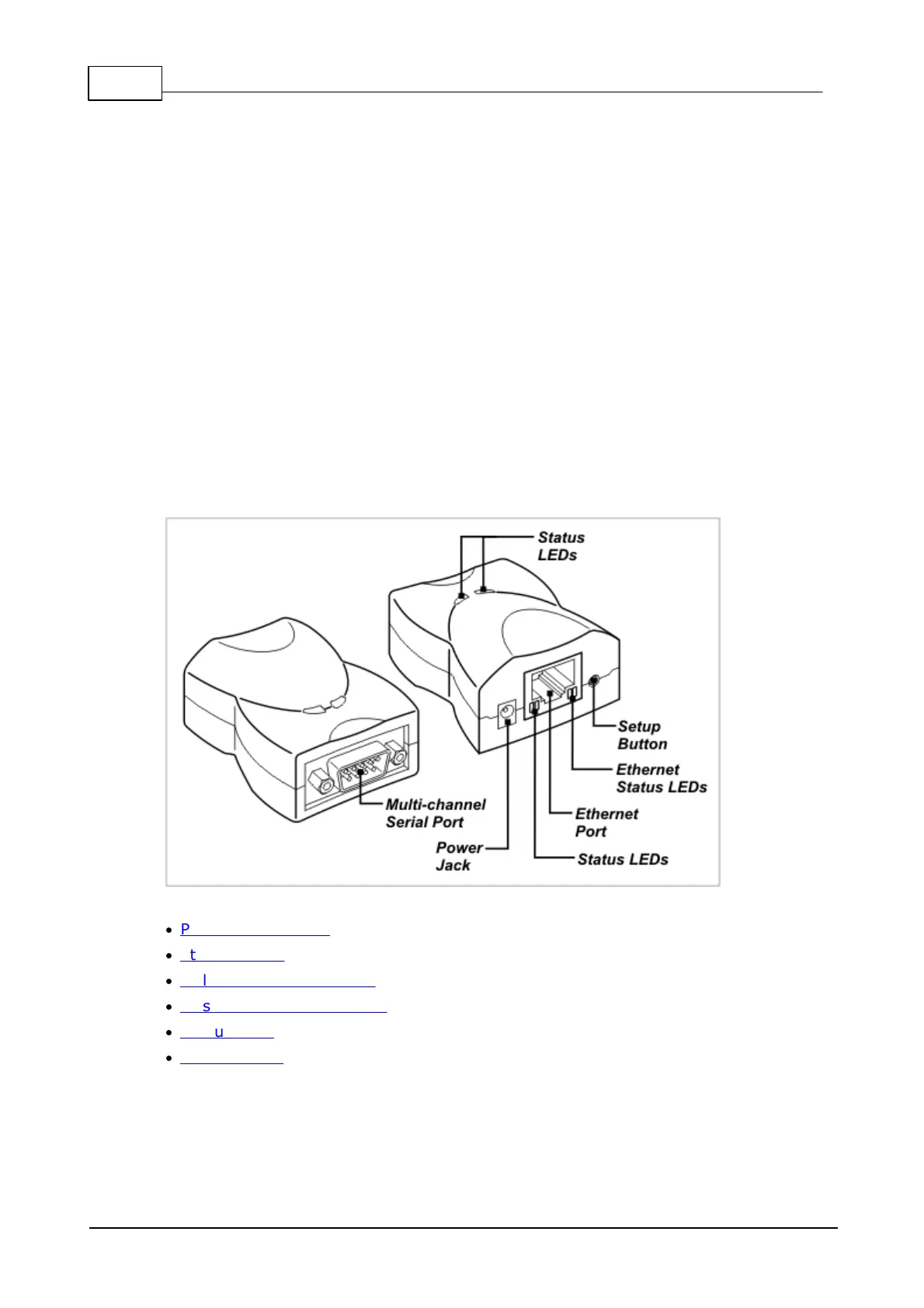

DS1202 Connectors and Controls

Click on one of the links provided below to learn more about the DS1202:

Power arrangement

Ethernet port

Multi-channel RS232 port

Flash and EEPROM memory

Status LEDs

Setup button
