466External Controllers
© Tibbo Technology Inc.

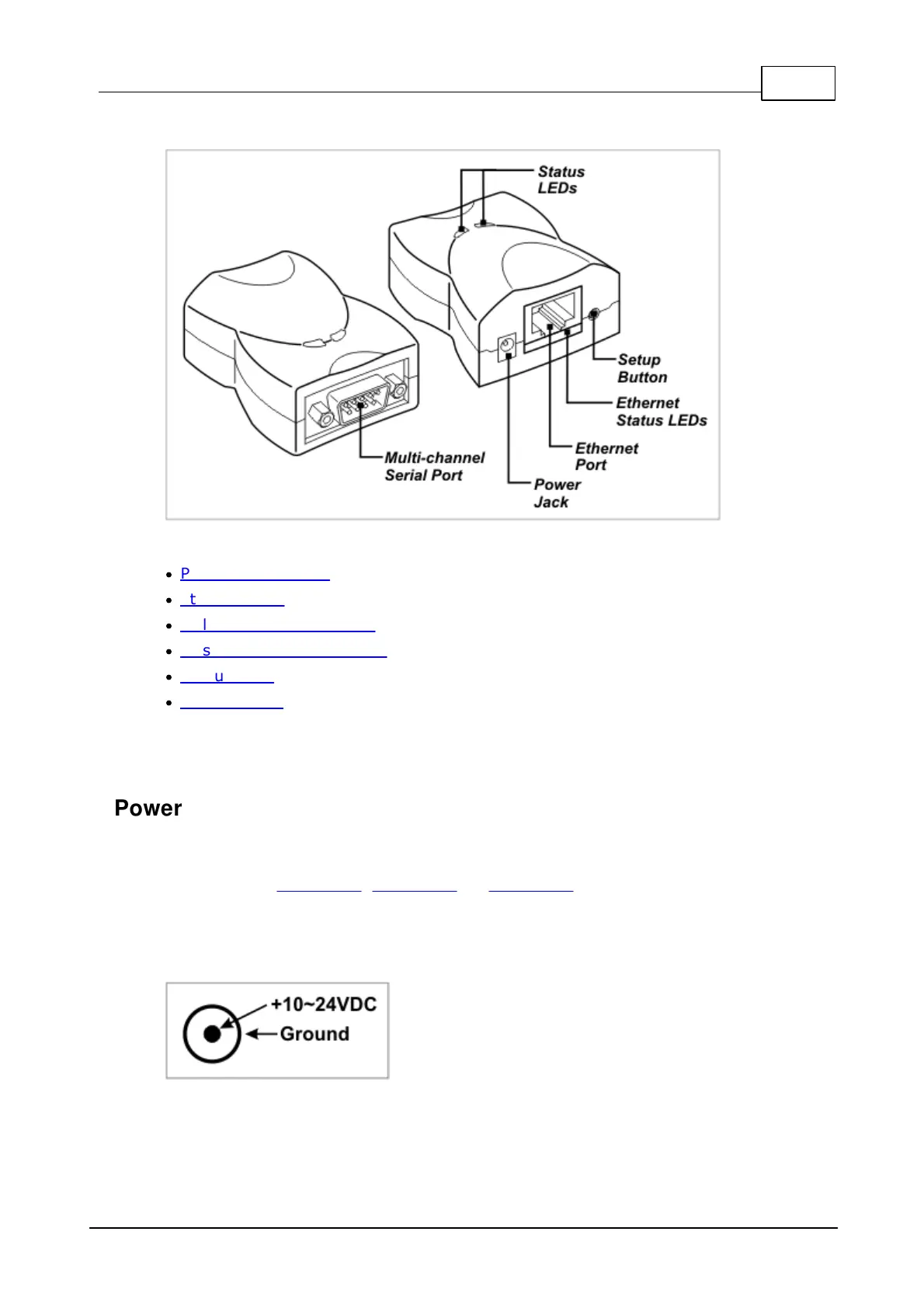

DS1206 Connectors and Controls
Click on one of the links provided below to learn more about the DS1206:
·
Power arrangement
·
Ethernet port
·
Multi-channel RS232 port
·
Flash and EEPROM Memory
·
Status LEDs
·
Setup button
8.2.1.1
Power Arrangement
Normally, the DS1206 is powered through its power jack.
The power jack of the DS1206 accepts "small" power connectors with 3.5mm
diameter. Use APR-P0011, APR-P0012, or APR-P0013 power adaptor supplied by
Tibbo or similar adaptor with 12V nominal output voltage. Adaptor current rating
should be at least 500mA. On the power jack, the ground is "on the outside", as
shown on the figure below.
Alternatively, the DS1206 can be powered through a pin 9 of the DB9M (RS232)
connector. Two internal diodes combine power jack and pin 9 inputs into a single
line, which goes to the internal regulator of the DS1206.
