293 Programmable Hardware Manual (PHM)

7.2.9.9

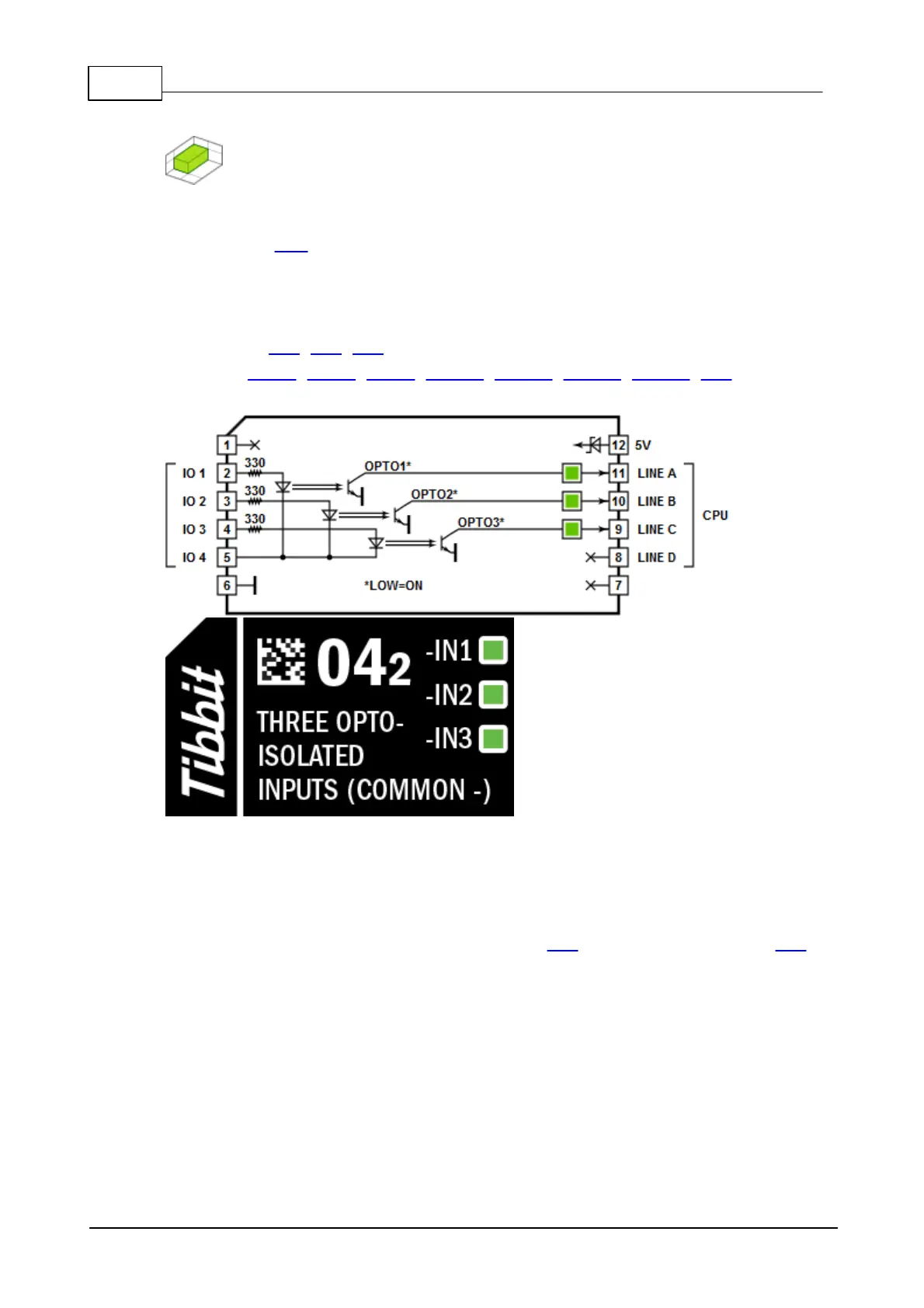

#04-2, M1S: Three Isolated Inputs, Common (-)

Function: Three optically isolated inputs with common (-). Inputs are fully isolated

from system ground.

Form factor: M1S

Category: Input module

Special needs: ---

Power requirements: 5V/35mA

Mates with: #19, #20, #21

See also: #04-1, #04-3, #04-4, #04-05, #04-06, #04-07, #04-08, #54

Details

If no external resistor is added these inputs activate at about 2V. Forward current

should not exceed 10mA, and this caps the maximum input voltage at around 5V.

Add external resistors if you need to apply higher input voltage.

Combine this Tibbit with terminal block devices – #20 (nine terminal blocks) or #21

(four terminal blocks).

LEDs

There are three green LEDs which are connected to three control lines. LEDs light

up for the LOW state of control lines (i.e. when current passes through the diodes

of the opto-couples).
