390Tibbo Project System (TPS)
© Tibbo Technology Inc.
o wln — handles the Wi-Fi interface
·
27 string functions, 8 date/time conversion functions, encryption/hash calculation
functions (RC4, MD5, SHA-1), and more
·
Function groups: String functions, trigonometric functions, date/time conversion
functions, encryption/hash calculation functions (AES, RC4, MD5, SHA-1), and
more
Tiles, Sockets, Connectors, Controls

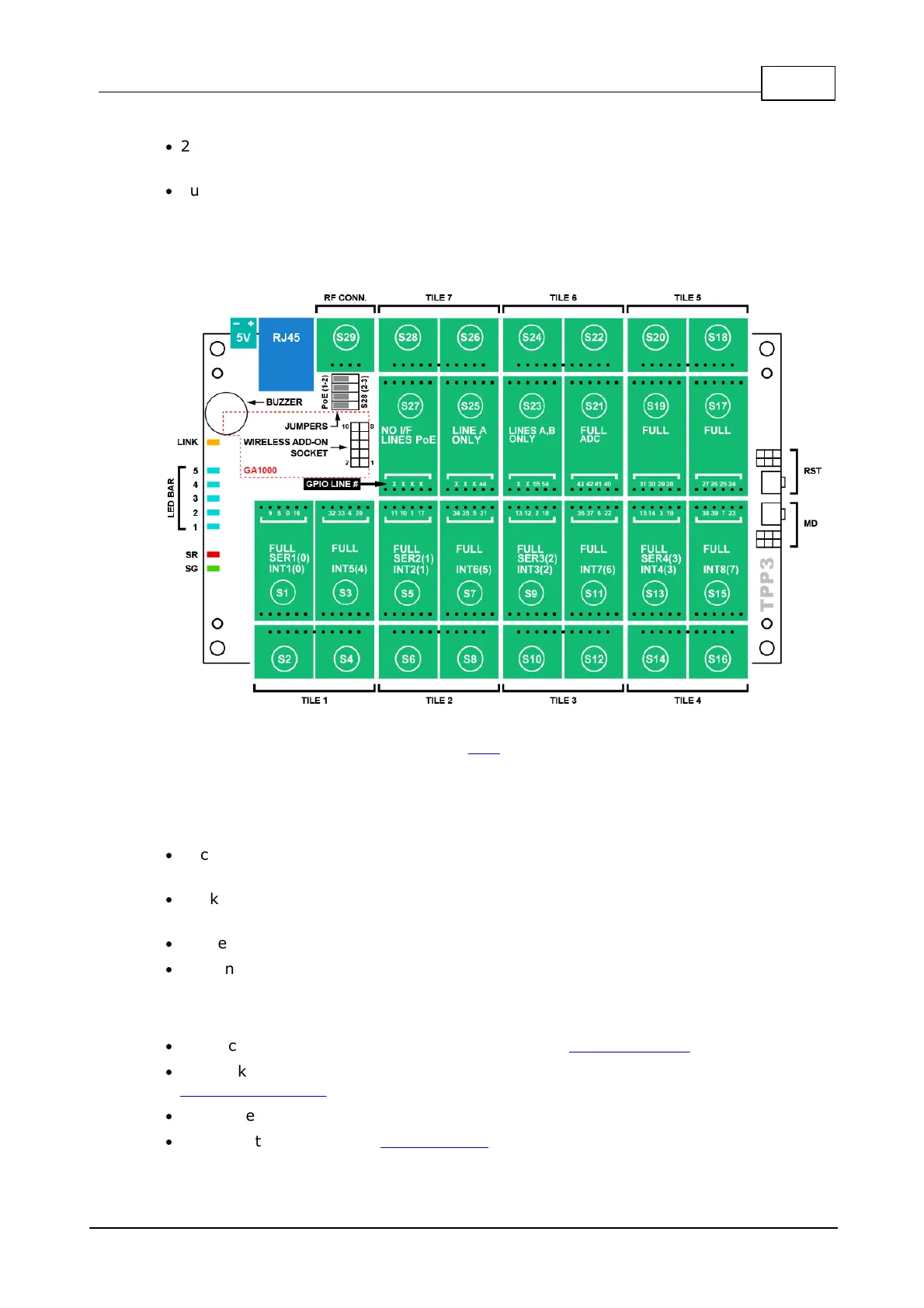

The TPP3(G2) board features 14 x "M" and (14+1) x "C" sockets.
Sockets (S1) ~ (S28) form 7 standard tiles.
There are 47 control lines connecting "M" sockets to the CPU. The number of control
lines is smaller than the number of "M" sockets multiplied by four. This is because
some sockets have a reduced number of control lines, or have no lines connected at
all:
·
Socket (S23) only has control lines A and B. Control lines C and D are not
implemented.
·
Socket (S25) only has the control line A. Control lines B, C, and D are not
implemented.
·
Socket (S27) has no control lines connected to it.
·
Remaining "M" sockets have all four control lines implemented.
Additionally:
·
"M" sockets (S1), (S5), (S9), and (S13) have the UART capability.
·
"M" sockets (S1), (S3), (S5), (S7), (S9), (S11), (S13), and (S15) have the
interrupt capability.
·
"M" socket (S21) has the ADC capability.
·
"M" socket (S27) has the PoE capability, provided that four TPP2(G2) jumpers are
set to 2-3 position (see below).
