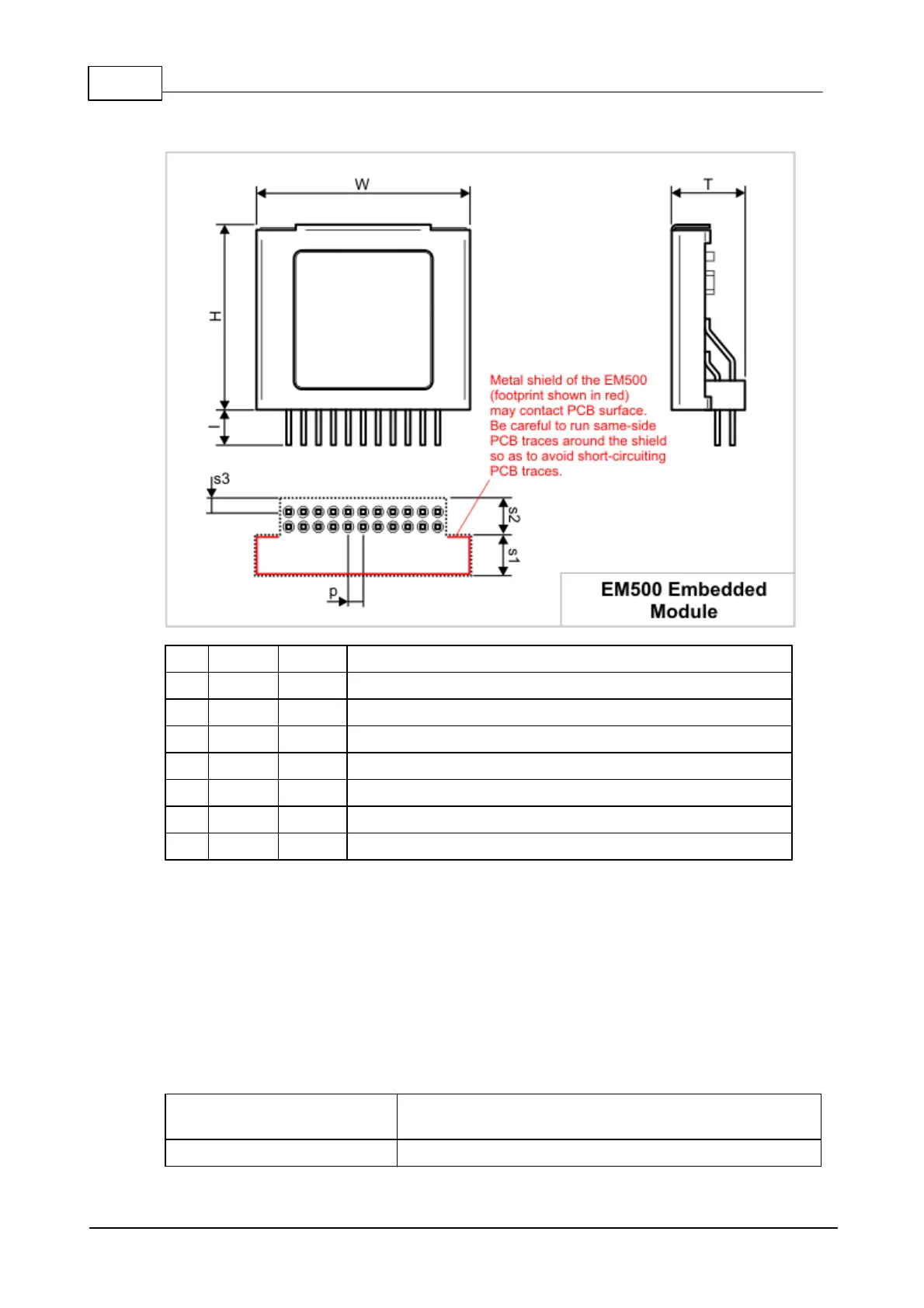

Mechanical Dimensions
H
Max.
16.0
Module height
W
Max.
18.5
Module width
T
Max.
6.5
Module thickness
I
Min.
5.5
Lead length
p
Aver.
1.27
Pin pitch
s1
Max.
3.7
Module footprint dimension
s2
Max.
2.8
Module footprint dimension
s3
Aver.
1.0
Module footprint dimension
Dimensions are for reference only. Tibbo assumes no responsibility for any errors in
this Manual, and does not make any commitment to update the information
contained herein.
Ordering Info and Specifications
The EM500 "MiniMo"* device is only available in a single configuration and can be
ordered as "EM500-00".
Hardware specifications
Ethernet interface
10/100BaseT Ethernet, Auto-MDIX, magnetics not
built-in
Serial ports
1 port, CMOS-level.
