337 Programmable Hardware Manual (PHM)
© Tibbo Technology Inc.
Form factor: C1
Special needs: Tibbit #00-3
Power requirements: 5V/2mA
See also: #28, #30, #35, #36
Details

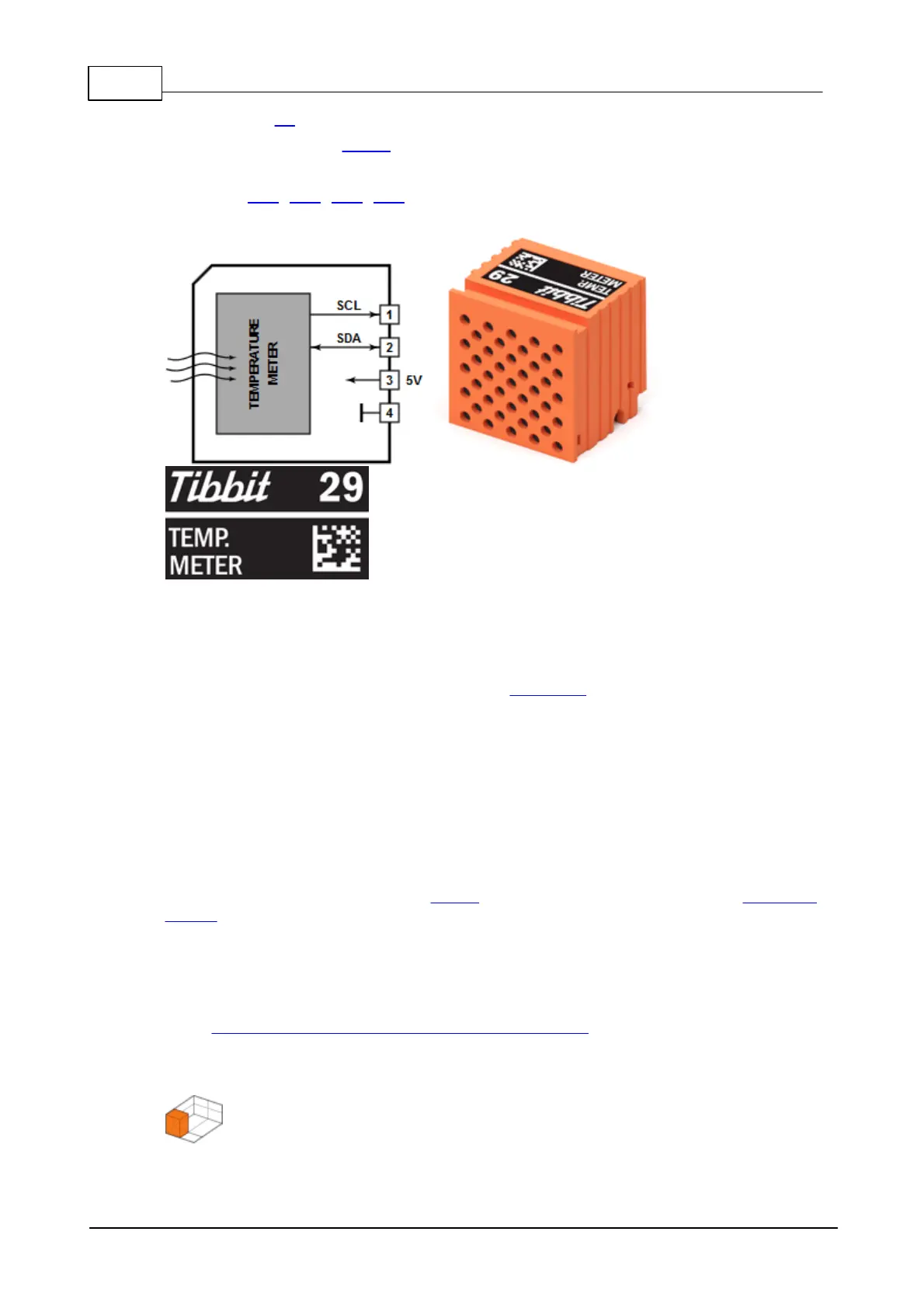

This Tibbit is based on the MCP9808 ambient temperature sensor IC with I2C
interface. The sensor is implemented as the C1 device with perforated front face
and a rubber wall separating the temperature sensor from the internal space of the
TPS system. This is done to minimize the influence of the heat produced by the TPS
motherboard and adjacent Tibbits.
The MCP9808 has programmable resolution and can measure the ambient
temperature in steps as small as 1/16 degree Celsius. The conversion process is
rather slow at this resolution and takes ~250ms. Our sample project (see below)
operates with 1/4 degree precision, which also requires a relatively short conversion
time of ~65ms.
This device operates with a typical accuracy of +/-0.25 deg.C.
This C1 device requires the Tibbit #00-3 to be installed in the neighboring "M" Tibbit
socket. #00-3 provides two direct lines for I2C comms, as well as the ground and
+5V power for the MCP9808.
Sample project
The use of this Tibbit is illustrated by a Tibbo BASIC test project. Yo can find it
here: https://github.com/tibbotech/CA-Test-Tibbit-29.
7.2.9.40
#30, C1: Ambient Humidity/Temperature Meter
Function: Ambient humidity and temperature meter
