EM1000EV

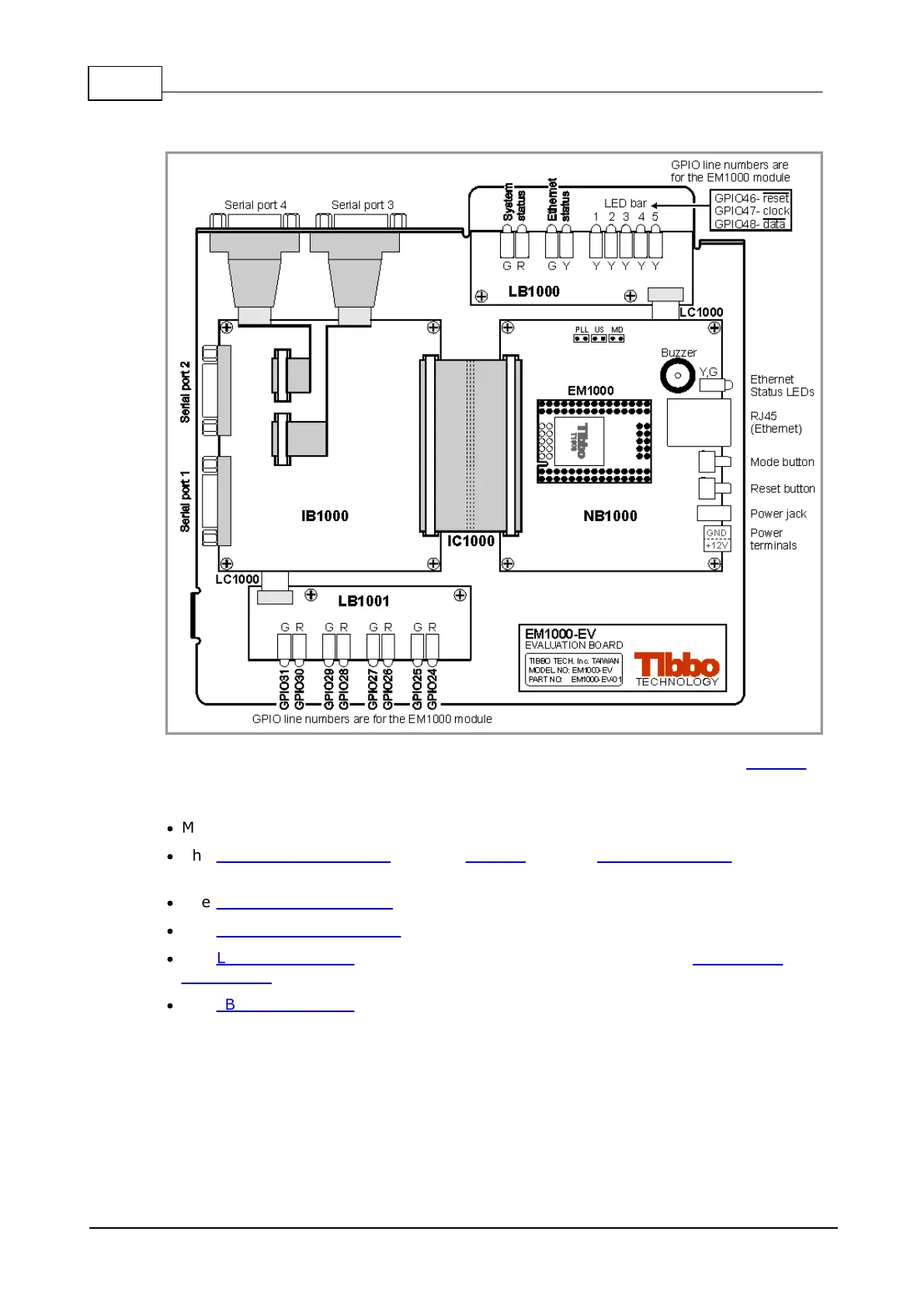

The EM1000-EV Evaluation System offers a convenient way of testing the EM1000
BASIC/C-programmable embedded module. The board features the following
components:
·
Metal base.
·
The NB1000 network board with the EM1000 module (EM1000-512K-ST) installed
on a socket.
·
The IB1000 interface board with four RS232 ports.
·
The IC1000 interboard cable interconnecting the NB1000 and the IB1000.
·
The LB1000 LED board, which is connected to the NB1000 by the LC1000 LED
board cable.
·
The LB1001 LED board, which is connected to the IB1000 by the LC1000 cable.
The EM1000-EV requires 12VDC/0.5A power adaptor.
