206Boards
© Tibbo Technology Inc.

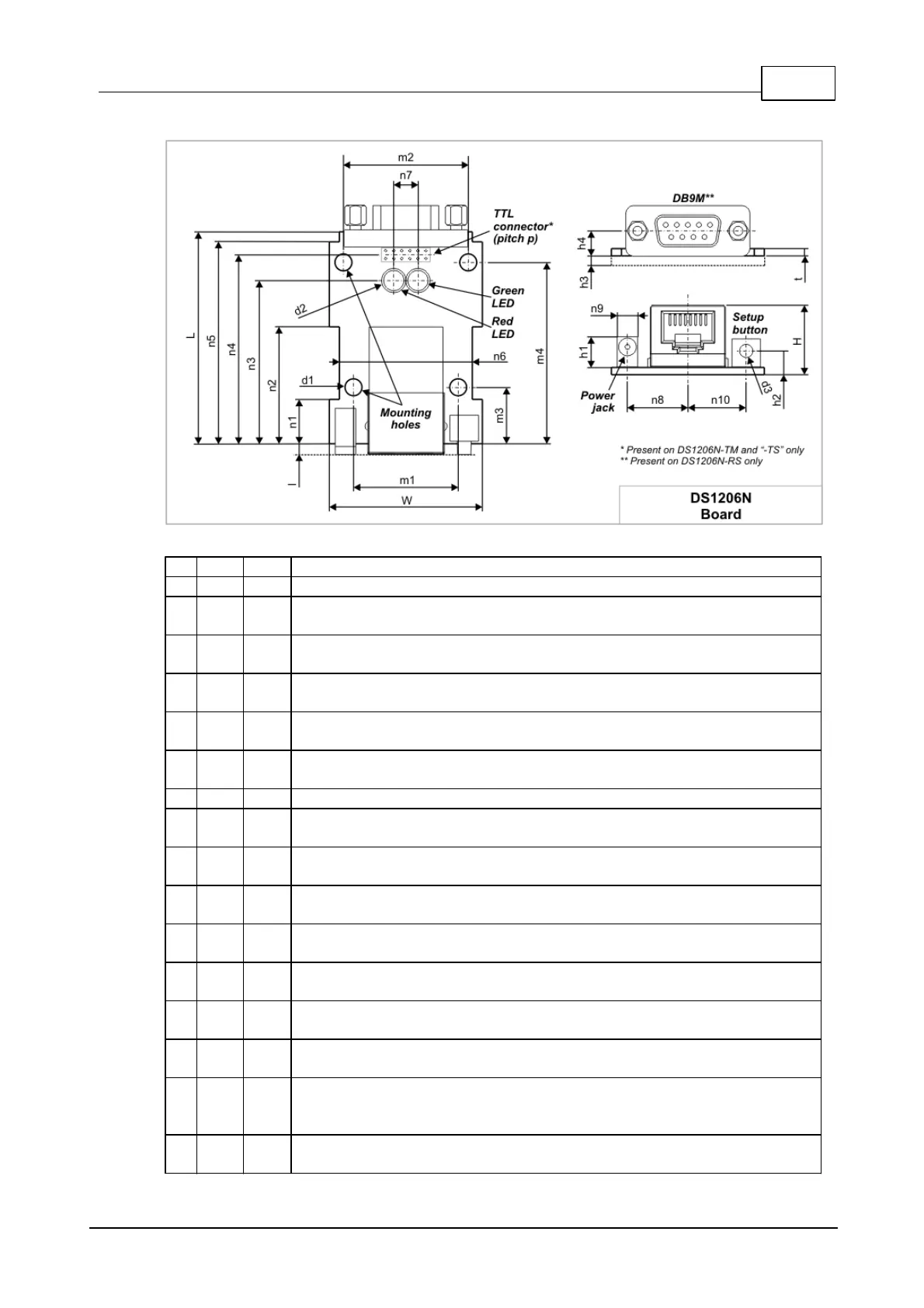

Mechanical Dimensions
L
Max.
52.6
Board length
W
Max.
38.0
Board width
l
Aver
.
2.6
Distance from the front edge of the PCB to the front surface of
the RJ45 jack, power jack, setup button
H
Max.
17.2
Board height with components installed on the top side of the
board
t
Aver
.
1.6
PCB thickness
d1
Aver
.
3.6
Mounting hole diameter
d2
Aver
.
5.0
LED diameter
d3
Max.
3.5
Setup button diameter
m
1
Aver
.
26.0
Horizontal distance between the mounting holes (first pair)
m
2
Aver
.
31.0
Horizontal distance between the mounting holes (second pair)
m
3
Aver
.
14.0
Distance from the front edge of the PCB to the first pair mounting
holes
m
4
Aver
.
45.0
Distance from the front edge of the PCB to the second pair of
mounting holes
n1
Aver
.
11.0
PCB outline dimension
n2
Aver
.
29.0
PCB outline dimension
n3
Aver
.
40.5
Distance from the front edge of the PCB to the LEDs
n4
Aver
.
47.0
Distance from the front edge of the PCB to the horizontal
centerline of the TTL interface connector (present on the
DS1202N-TM and "-TS" only)
n5
Aver
.
50.1
PCB outline dimension
