519 Programmable Hardware Manual (PHM)
© Tibbo Technology Inc.

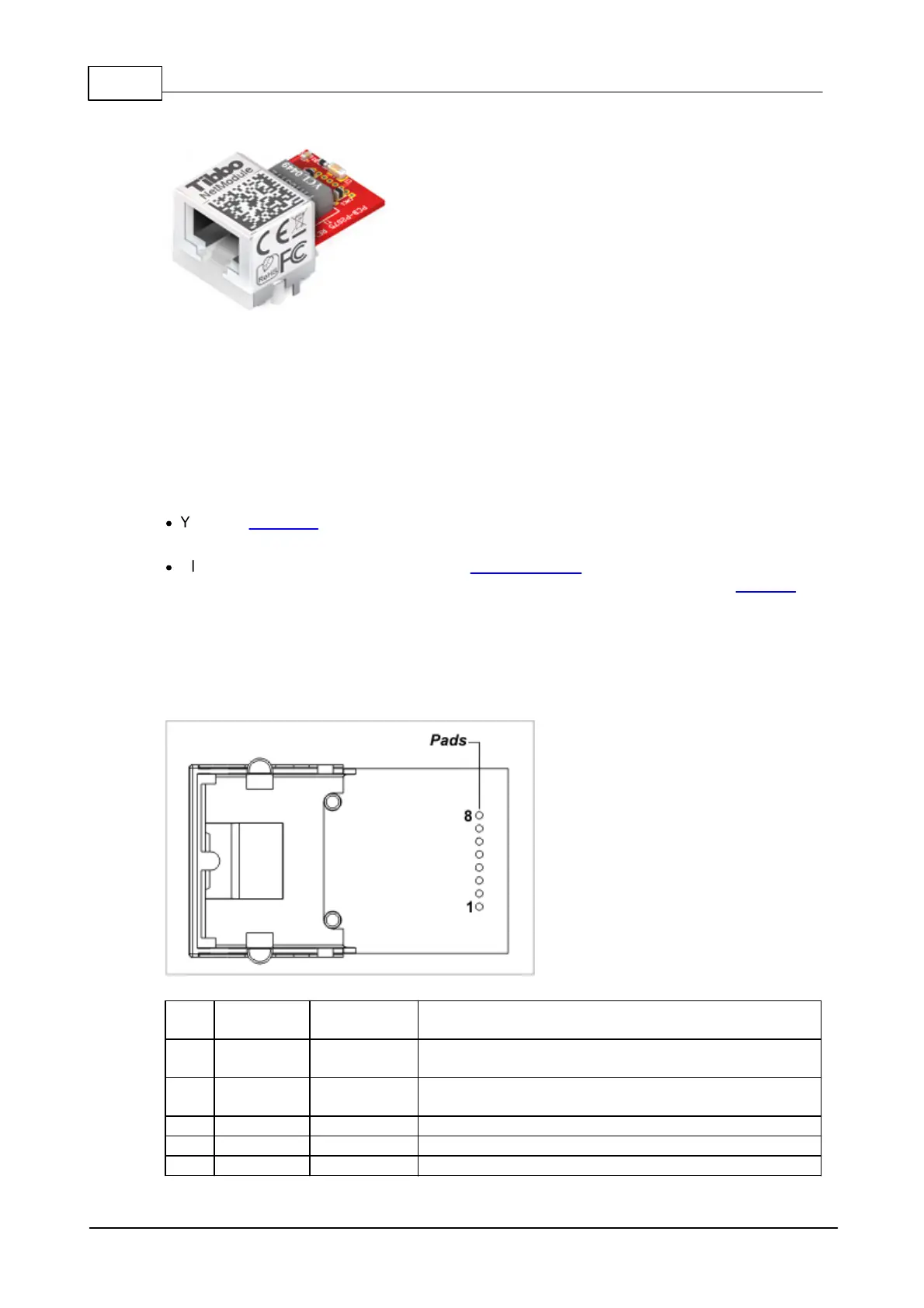

RJ203 Jack/Magnetics Module
The RJ203 is an "Ethernet front-end" module that contains 10/100BaseT Ethernet
magnetics and a standard RJ45 jack. Module's magnetics are designed to work with
Davicom's DM9000B Ethernet controller.
Unique patent-pending design of the module minimizes module's footprint and allows
you to put other components required on your host board under the RJ203, thus
saving valuable host board space. Moreover, translucent housing of the RJ203's face
enables you to place status LEDs directly on the host board and have these LEDs
visible through the front face of the RJ203.
There are two ways in which you can utilize the RJ203 in your design:
·
You can interface the RJ203 to the DM9000B IC located, together with the CPU
and other necessary components, directly on your host PCB.
·
Alternatively, you can use the RJ203 in combination with the EM203 Ethernet-to-
serial module (documented in the "Serial-over-IP Solutions Manual") or EM1206
BASIC/C-programmable Ethernet module. These modules fit right "under" the
RJ203, thus taking (virtually) no additional space on the host PCB.
Interface Pads
The RJ203 has a single row or interface pins.
Ethernet port, positive line of the differential
input signal pair
Ethernet port, negative line of the differential
input signal pair
"Clean" 1.8V power output for magnetics
circuitry
