246Development Systems
© Tibbo Technology Inc.
When connecting a clock/data reader, attach the reader's DATA output to the
positive line of the input 1 of the TEV-IB1 board. Attach the CLOCK output to the
positive line of the input 2. Combine negative lines of inputs 1 and 2 together and
connect them to the ground line of the reader. Leave JP4 jumper opened.
When connecting a Wiegand reader, attach the reader's W0 output to the positive
line of the input 1 of the TEV-IB1 board. Attach the W1 output to the positive line
of the input 2. Combine negative lines of inputs 1 and 2 together and connect them
to the ground line of the reader. Close the jumper JP4.
Most Wiegand readers have open-collector outputs, which means you may need to
install pull-up resistors on their W0 and W1 outputs.
The function of the JP4 is to combine the signals W0 and W1 -- this is required for
the EM1000's serial port operation in Wiegand mode.
Jumpers JP1-3 should be left open.
Ordering Info

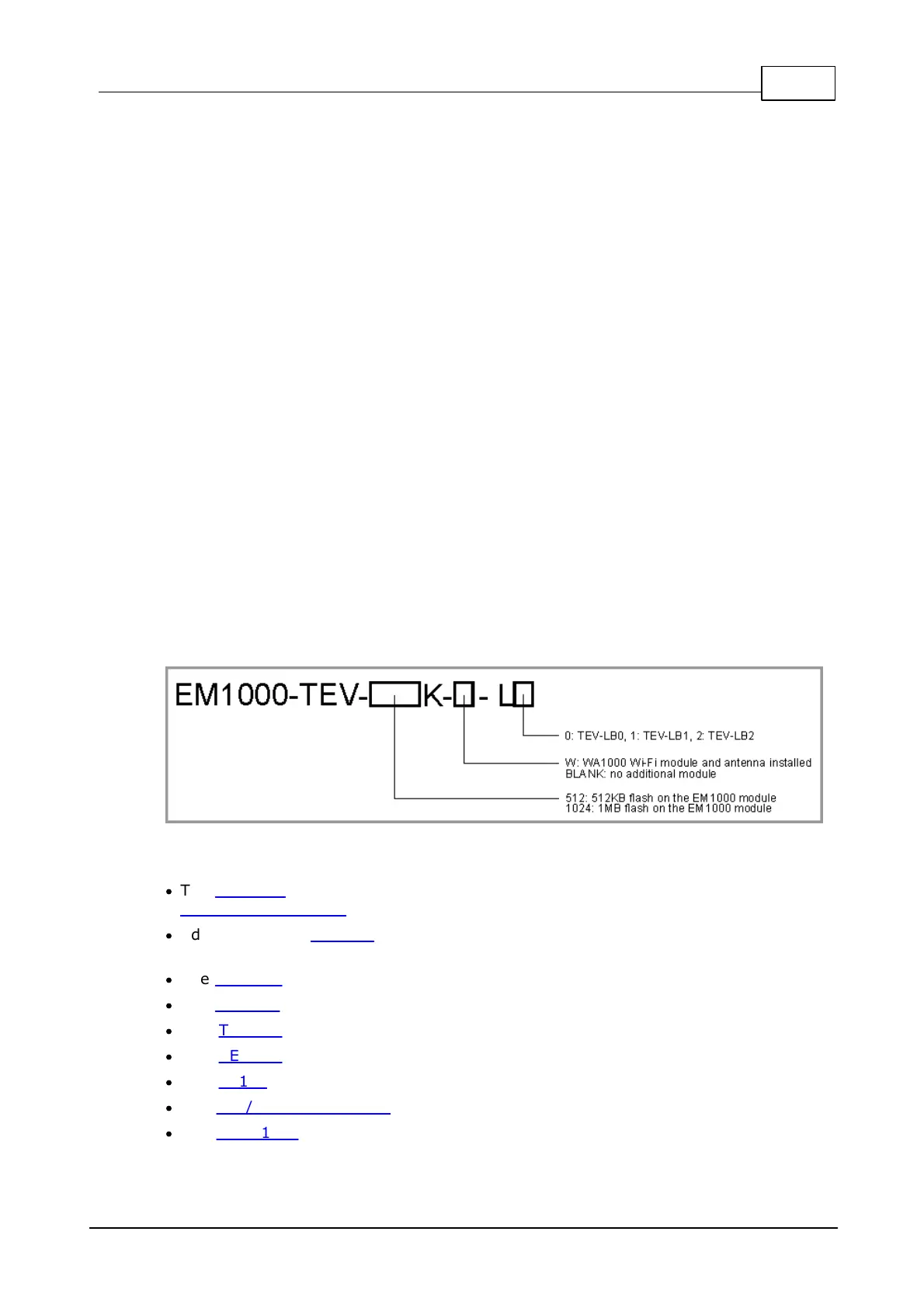

The EM1000-TEV has several versions available. The numbering scheme is as
follows:
The following is included into each EM1000-TEV:
·
The TEV-MB0 board with the EM1000-512K-ST or EM1000-1024K-ST module (see
EM1000 Ordering Info for details).
·
Additionally, the WA2000 Wi-Fi module and antenna are installed if option "N" is
specified.
·
The TEV-KB0 keypad board.
·
The TEV-LBx display board of your choice.
·
Two TEV-IB0 boards, installed on ports 1 and 2.
·
Two TEV-IB1 boards, installed on ports 3 and 4.
·
Two TB100 terminal block adaptors.
·
One 12V/1A power adaptor.
·
One WAS-1499 "straight" Ethernet cable. Good for crossover connections as well,
since the EM1000 supports Auto-MDIX.
