335 Programmable Hardware Manual (PHM)
© Tibbo Technology Inc.

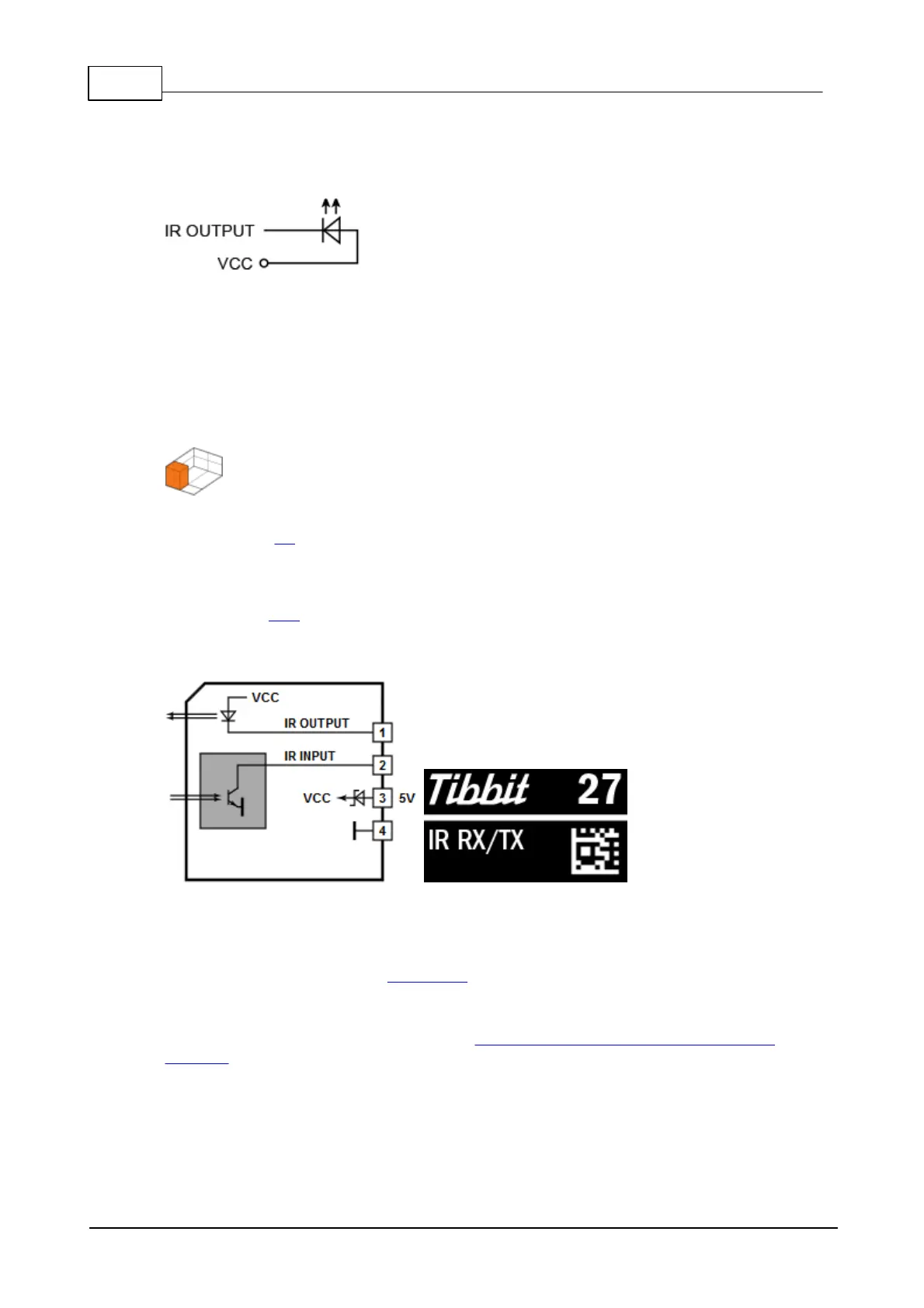

This is a high-power infrared emitting diode, very popular for IR applications. Notice
that a current limiting resistor is not necessary. The diode connects directly to VCC
and IR OUTPUT lines of Tibbit #16.
Xantech 282D "designer" emitter and 283D emitter
To connect this emitter, cut the audio connector off the emitter's cable, then
connect black-and-white wire to VCC and black write to IR OUTPUT.
7.2.9.37
#27, C1: IR Receiver/Transmitter
Function: Infrared receiver circuitry and transmitter diode
Form factor: C1
Special needs: ---
Power requirements: 5V/10mA (the peak current may reach 200mA)
Mates with: #26
See also: ---
Details
This Tibbit is a front end for Tibbit #26 (IR command processor).
The Tibbit contains Vishay TSMP6000 infrared photo detector and TSAL6100
infrared emitter. Some useful information on these parts and the required setup on
the Tibbit #26 side can be found in the Examples of Wiring to IR Receivers and
Emitters topic.
