Tibbo EM1000 User Manual

60Embedded Modules
© Tibbo Technology Inc.
p
Aver
.
1.27
Pin pitch
s1
Aver
.
32.1
5
Distance from the edge of the board to the pins of the main
connector
s2
Aver
.
27.2
Distance from the edge of the board to the pins of the magnetics
connector
s3
Aver
.
3.8
Distance from the edge of the board to the pins of the additional
connector
l
Min.
4.0
Connector pin length
All dimensions are in millimeters. Dimensions are for reference only. Tibbo assumes
no responsibility for any errors in this Manual, and does not make any commitment
to update the information contained herein.
Ordering Info and Specifications

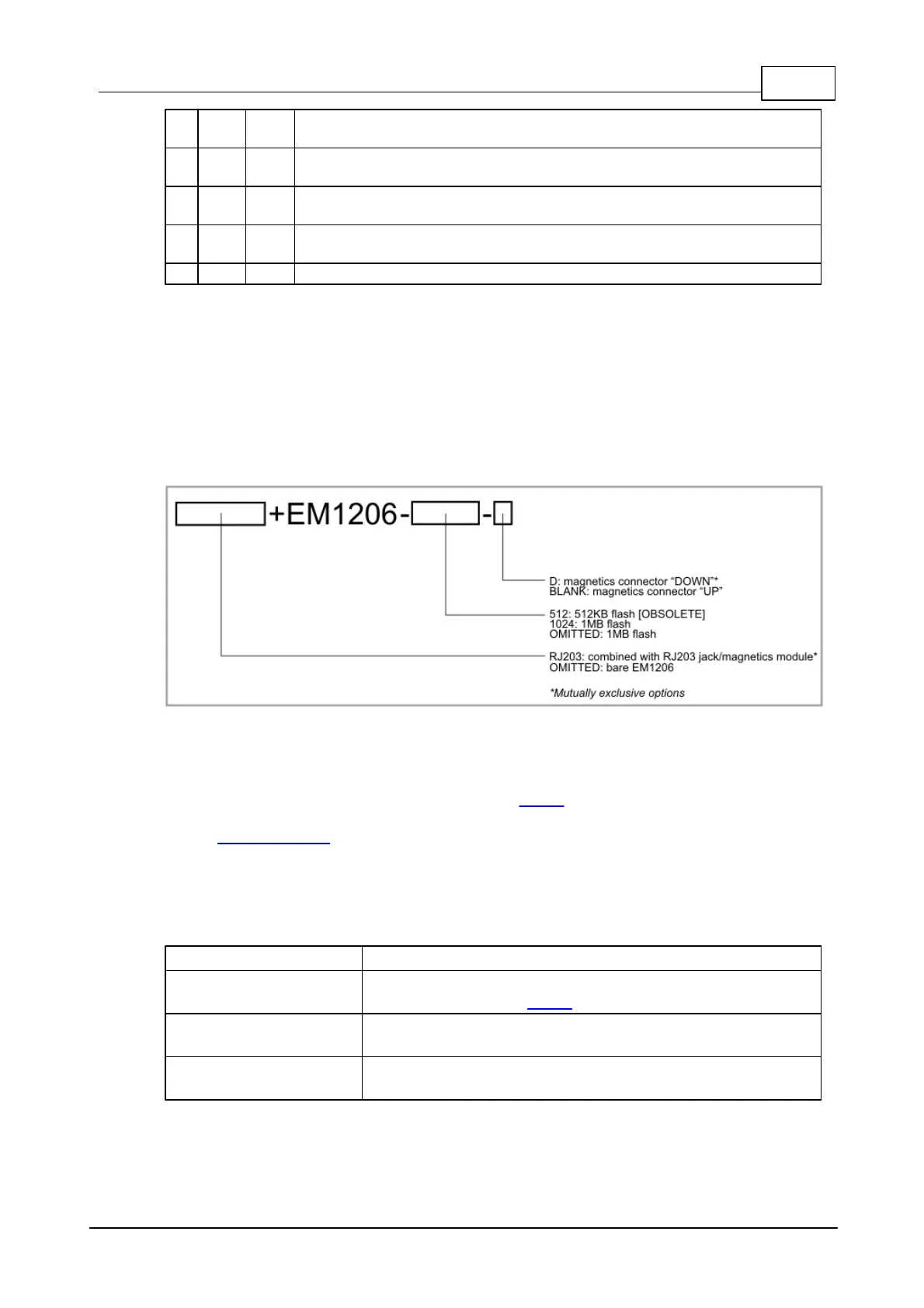

Device numbering scheme is as follows:
512K devices are no longer available.
If the flash memory size is omitted, 1024K option is implied.
To order the EM1206 in combination with the RJ203 module, use the
"RJ203+EM1206" ordering code. This code means that the RJ203 and the EM1206 will
come pre-assembled together.
Examples of valid model numbers
Model number
Description
EM1206-1024K
EM1206 with 1024KBytes of flash memory, configured
for mating with the RJ203
RJ203+EM1206
EM1206 with 1024KBytes of flash, in combination with
the RJ203
EM1206-D
EM1206 with 1024KBytes of flash memory, configured
for mating with the host PCB
