- stor — provides access to the EEPROM.
- sys — in charge of general device functionality.
- wln — handles the Wi-Fi interface.
· Variable Types: Byte, char, integer (word), short, dword, long, real, string, plus
user-defined arrays and structures.
· Function Groups: 27 string functions, 8 date/time conversion functions,
encryption/hash calculation functions (RC4, MD5, SHA-1), and more.
Detailed Device Info

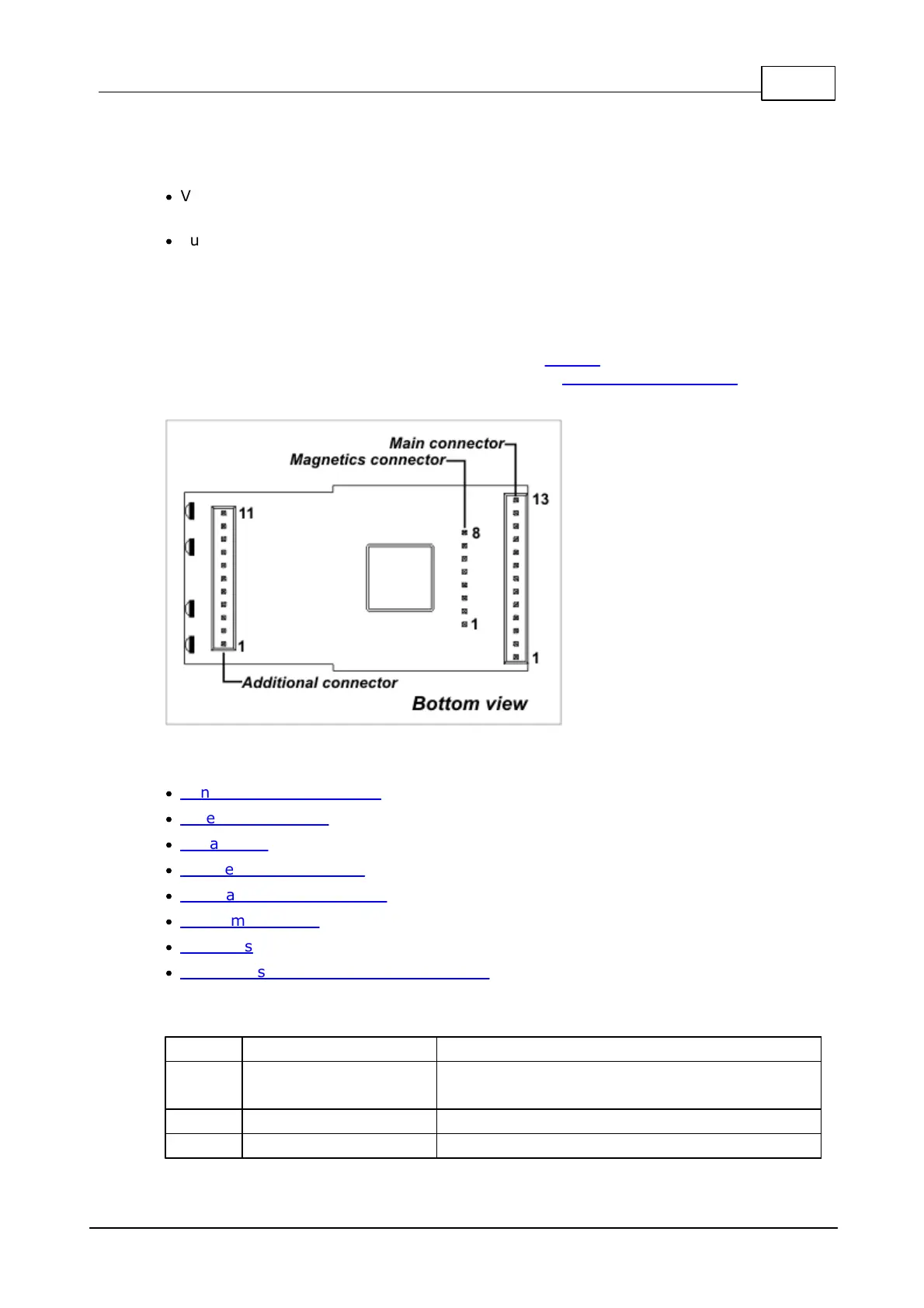

The EM1206 has three connectors: main connector, additional connector, and
magnetics connector. Depending on the EM1206 version, magnetics connector can
be soldered facing up or down, as described in the Mechanical Dimensions topic.
See these topics for more information on various hardware facilities of the EM1206:
· General-purpose I/O Lines
· Ethernet Port Lines
· Serial Ports
· Square Wave Generator
· Flash and EEPROM Memory
· Real-time Counter
· LED Lines
· Power, Reset, and Mode Selection Lines
Main connector
Pin #
Function
Description
1
VCCB
Backup power for the real-time counter.
Do not connect to 3.3V directly!
2
MD
Mode selection pin.
3
RST
Reset line, active high.
