Details

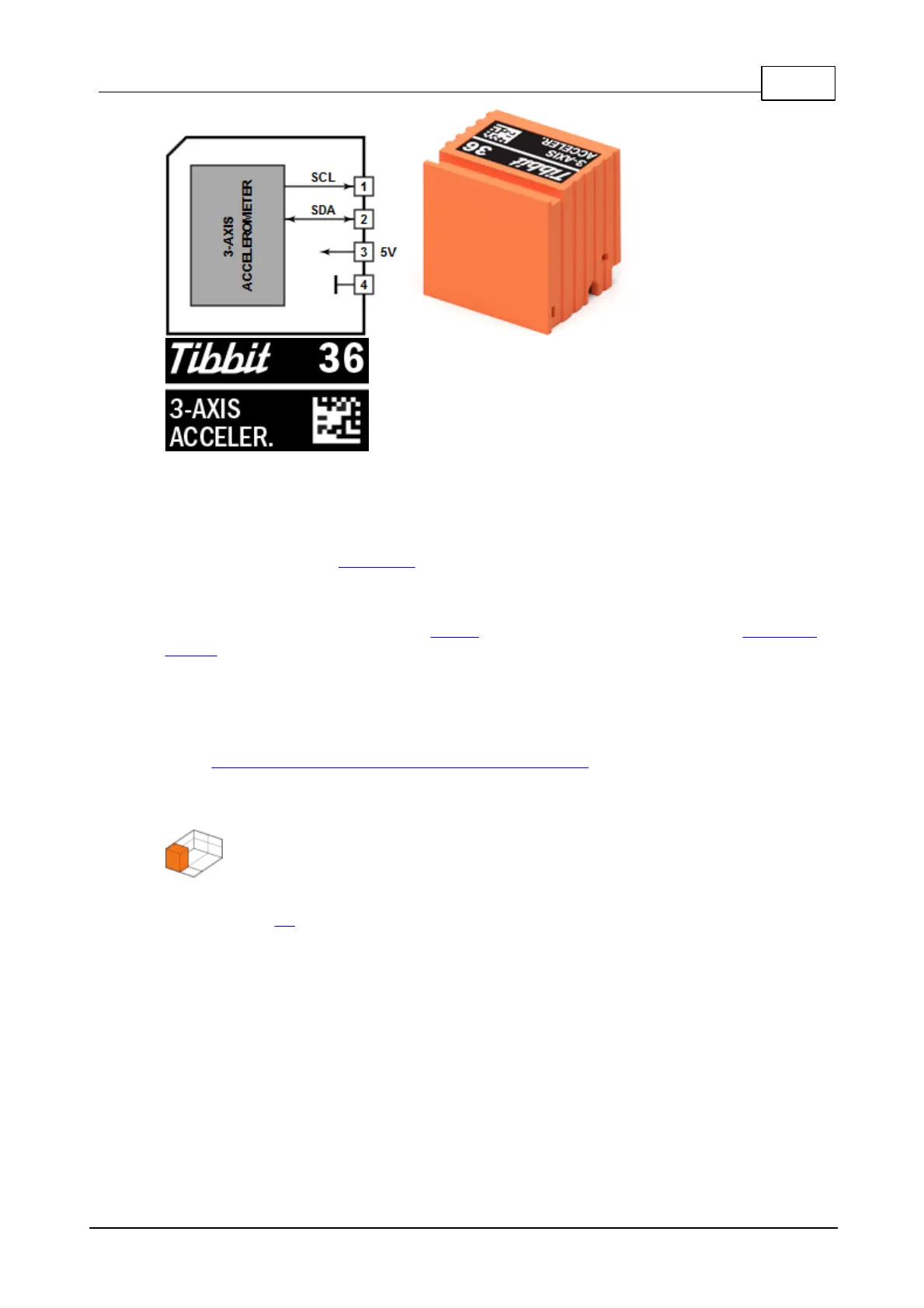

This Tibbit is based on the ADXL312 accelerometer IC with I2C interface. The sensor
is implemented as the C1 device.
The module measures acceleration in the +/-12G range, simultaneously in three
axes, and with 2.9mG resolution.
This C1 device requires the Tibbit #00-3 to be installed in the neighboring "M" Tibbit
socket. #00-3 provides two direct lines for I2C comms, as well as the ground and
+5V power for the ADXL312 IC.
Sample project
The use of this Tibbit is illustrated by a Tibbo BASIC test project. Yo can find it
here: https://github.com/tibbotech/CA-Test-Tibbit-36.
7.2.9.44
#37, C1: RF Connector
Function: RF connector
Form factor: C1
Special needs: ---
Power requirements: ---
See also: ---
