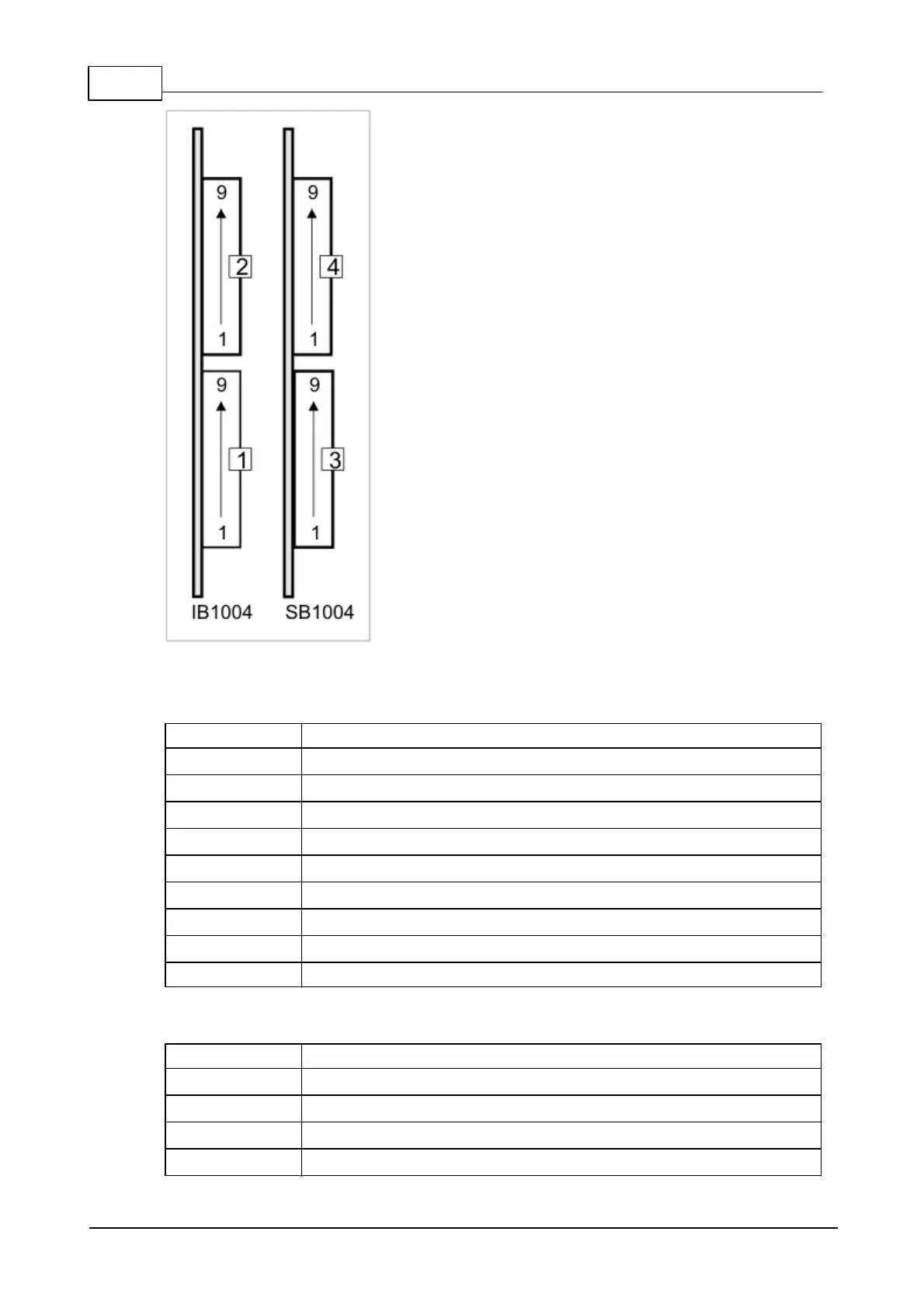

Terminal block 1
Terminal #
Function
9
A/D channel 4, negative input (-)
8
A/D channel 4, positive input (+)
7
A/D channel 3, negative input (-)
6
A/D channel 3, positive input (+)
5
A/D channel 2, negative input (-)
4
A/D channel 2, positive input (+)
3
A/D channel 1, negative input (-)
2
A/D channel 1, positive input (+)
1
A/D GROUND (isolated from the rest of the device)
Terminal block 2
Terminal #
Function
9
A/D channel 8, negative input (-)
8
A/D channel 8, positive input (+)
7
A/D channel 7, negative input (-)
6
A/D channel 7, positive input (+)
