BASIC ANALYZER OPERATION
Chapter 4
............
Sievers TOC-R3 Operation and Maintenance Manual
DLM 95000-01 EN Rev. A 103 © Veolia 2023
to go back to the previous level or to select a different sub-menu. For more information,
see “Navigation Icons” on page 103.

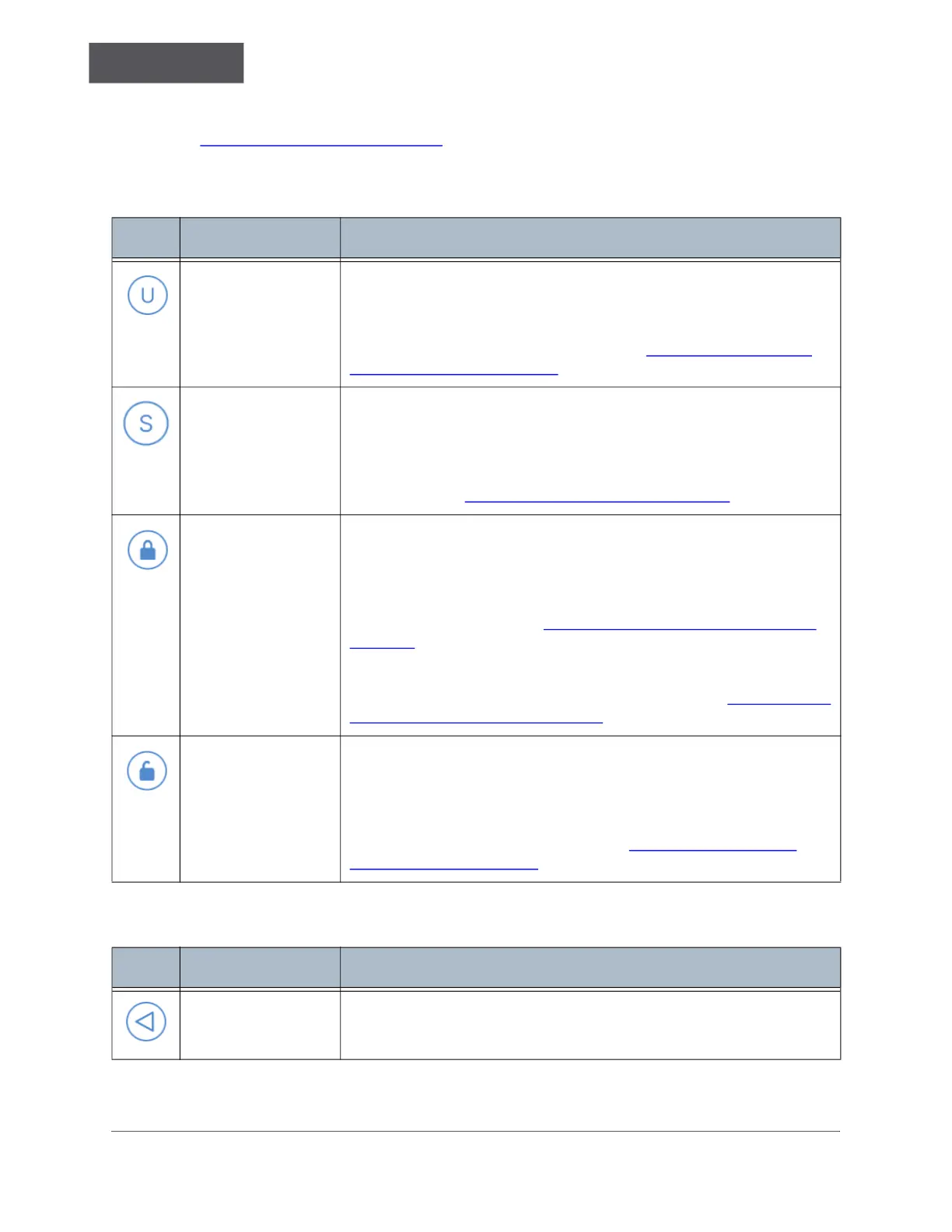

Table 4-1: Left Panel Icons
Icon Name Indication and Action
Unmount USB
Memory Device
Indication: A connection has been established with a USB memory
device.
Action: Select this icon from any screen to safely disconnect the USB
memory device. For more information, see “To “Unmount” the USB
Memory Device” on page 107.
Take a Screenshot Indication: A connection has been established with a USB memory
device.
Action: Select this icon from any screen to direct the Analyzer to take
a “Screenshot” of the current view of the Touchscreen. For more
information, see “To Take a “Screenshot”” on page 106.
User State, Locked Indication: Machine PIN function has been enabled and the Analyzer
firmware is Locked. If the “Auto Lock” function is also enabled, the
Analyzer firmware will automatically lock after a designated duration of
User inactivity occurs. Many settings and functions are not available
while the Touchscreen is Locked. For a list of functions available while
the Analyzer is Locked, see “Access to Functions While Locked” on
page 105.
Action: Select the Locked Icon to open the Unlock Analyzer dialog
and input the Machine PIN. For more information, see “To Unlock the
Analyzer Touchscreen” on page 104.
User State,
Unlocked
Indication: Machine PIN function has been enabled and the firmware
is Unlocked. This allows access to many settings and functions that
are not available when the Analyzer firmware is Locked.
Action: Select the Unlocked Icon to manually Lock the Analyzer
Touchscreen. For more information, see “To Unlock the Analyzer
Touchscreen” on page 104.
Table 4-2: Navigation Icons
Icon Name Indication and Action
Return Action: Select this icon to return to the previous view.
To Next Page
