FURNACE COMPARTMENT
. . . .. . . ... .... .... .... ..... ..
Sievers TOC-R3 Operation and Maintenance Manual
DLM 95000-01 EN Rev. A 240 © Veolia 2023
Furnace Compartment

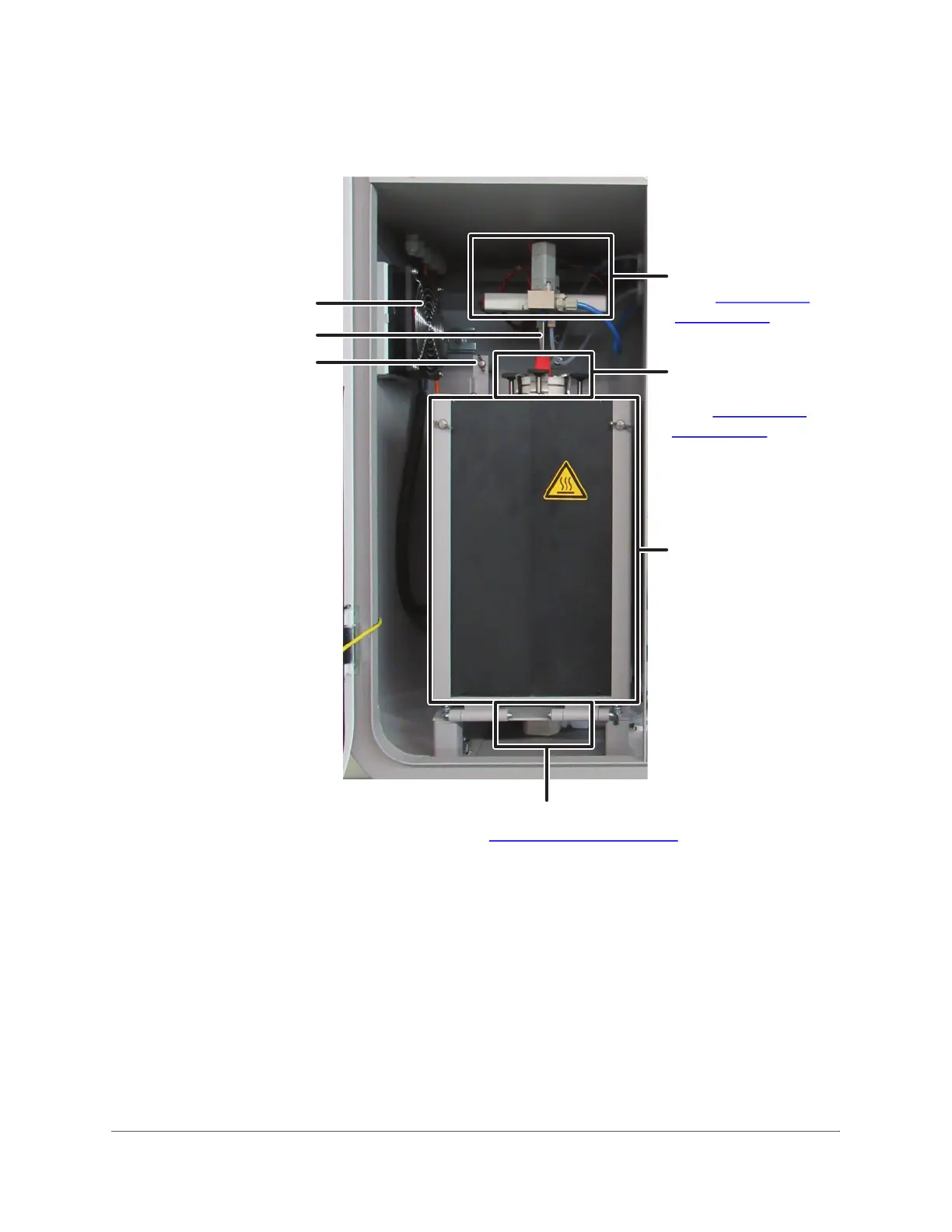

Figure A-11: Furnace Compartment
95loc002
Injection Block
(See Figure A-12
on page 241)
Furnace Head
Assembly
(See Figure A-13
on page 242.)
Furnace (EB1)
Furnace Foot Assembly
See Figure A-14 on page 243
Exhaust Fan
Injection Needle
Furnace Wing Screw
