DIMENSIONS AND LOCATIONS
Appendix A
Sievers TOC-R3 Operation and Maintenance Manual
DLM 95000-01 EN Rev. A 245 © Veolia 2023
Fluidics Compartment (1 of 2)

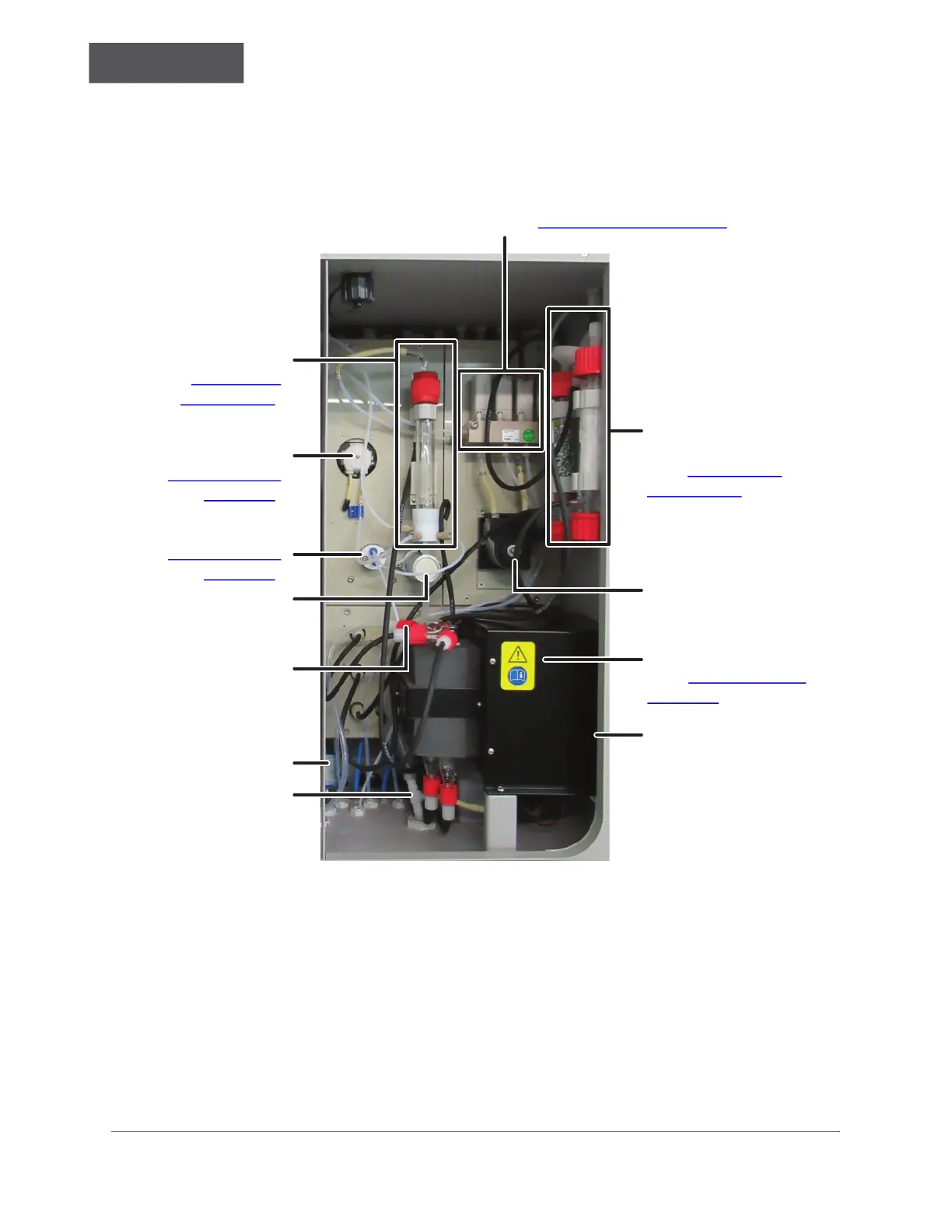

Figure A-16: Fluidics Compartment (1 of 2)
95loc003
Sample Manifold
(See Figure A-17 on page 246
)
Filters
(HS1, HS2, HS3)
(See Figure A-17
on page 246)
Sample Pump (GP1)
Gravity Drain
T-Fitting
Gas Cooler Unit (EC1)
(See Figure A-21 on
page 249)
MFSV Vent Absorber
Cartridge
Transfer Tube
Connection
Acid Pump (GP3)
(See Figure A-20 on
page 248)
Dilution Pump (GP4)
(See Figure A-19 on
page 248)
MFSV (CM2)
(See Figure A-18
on page 247)
Y9 Pinch Valve
Intake Fan
