DIMENSIONS AND LOCATIONS
Appendix A
Sievers TOC-R3 Operation and Maintenance Manual
DLM 95000-01 EN Rev. A 241 © Veolia 2023
Injection Block, Above the Furnace

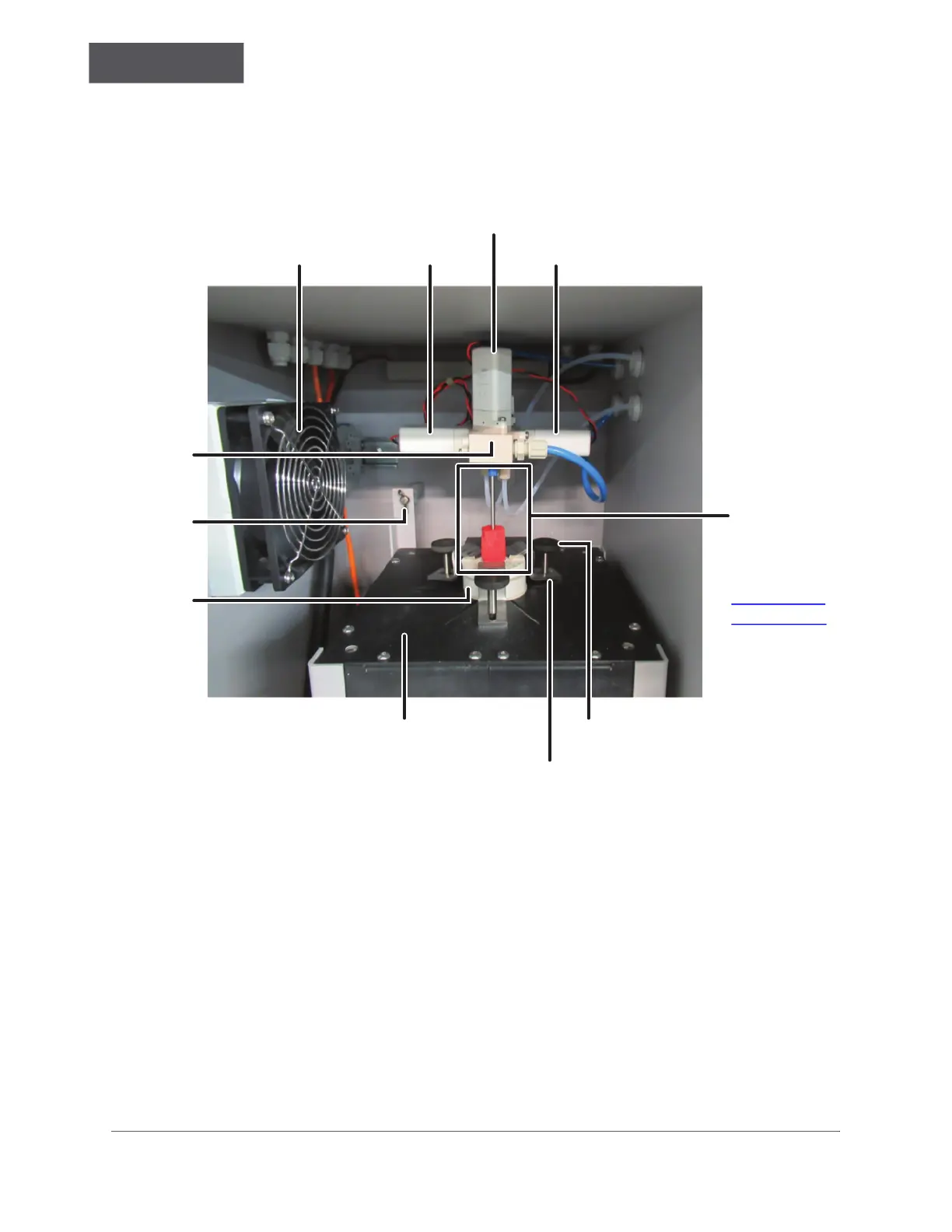

Figure A-12: Injection Block, Above the Furnace
95loc004
Y6 Valve
Injection
Block
Furnace
Head
Assembly
(See
Figure A-13
on page 242.)
Y7 Valve
Y5 Valve
Furnace
Wing
Screw
Exhaust
Fan
Thumb Screw
Furnace Head
Z-Bracket
Furnace
Sleeve
Furnace (EB1)
