INSTALLATION
Chapter 3
............
Sievers TOC-R3 Operation and Maintenance Manual
DLM 95000-01 EN Rev. A 75 © Veolia 2023

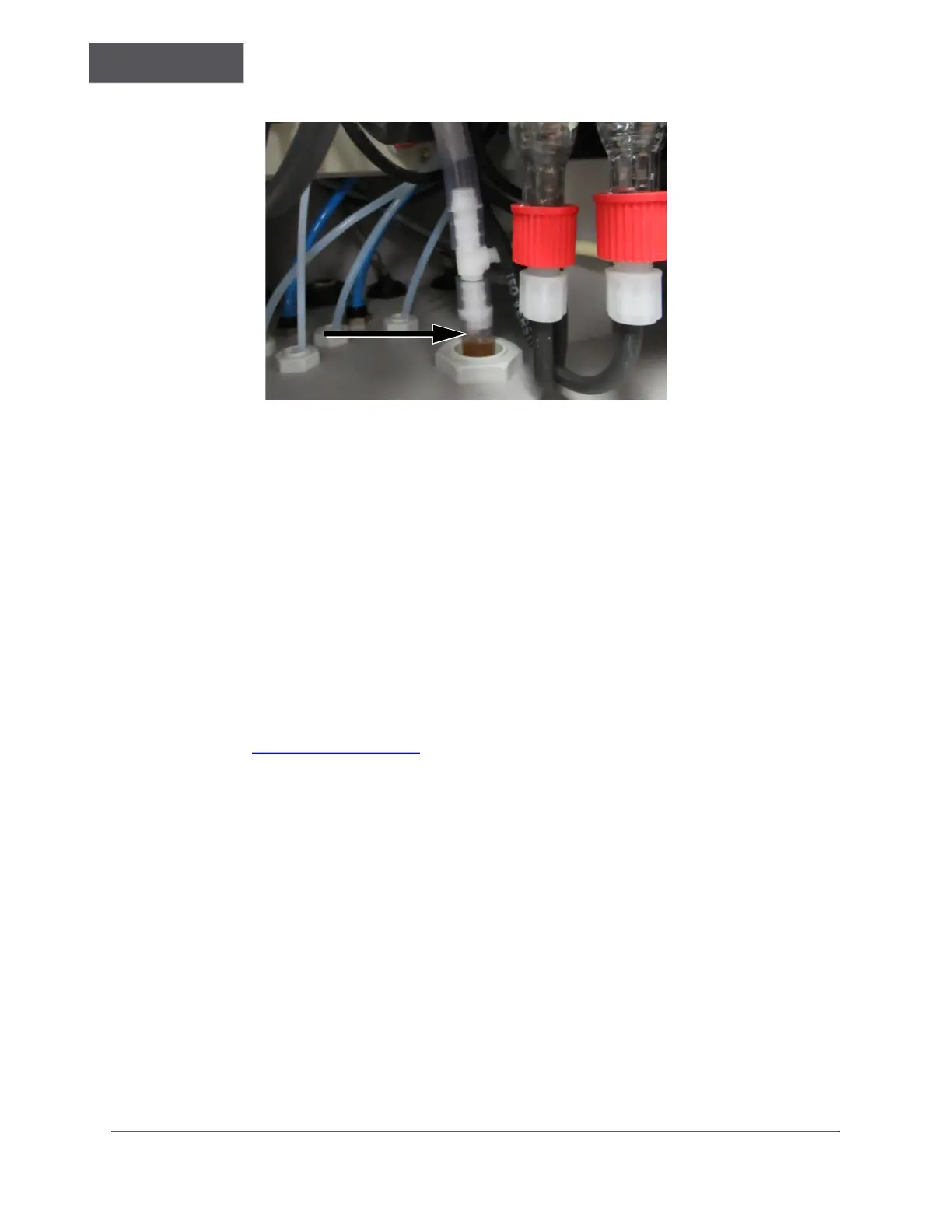

Figure 3-7: Connect the Waste Tubing [18]
6. The Analyzer may have been shipped with the MFSV Drain Tubing removed from the
Y9 Pinch Valve. Ensure the MFSV Drain Tubing is inserted into the Y9 Valve before
proceeding.
A. The Y9 Pinch Valve (MFSV Drain Valve) is located directly below the MFSV.
The Analyzer is shipped with the pinch tubing (also referred to as “Drain
Tubing”) intentionally removed from this valve and must be reinstalled during
Analyzer set up. The Y9 Pinch Valve allows for the manual drain operation of
the MFSV.
B. To reinstall the pinch tubing, push in the valve plunger (large black or white
circle) to open the valve and then insert the loose pinch tubing into the slot
located on the right side of the Y9 Valve.
C. Release the valve plunger once the Pinch/Drain Tubing has been installed.
This closes the Y9 Pinch Valve and pinches the MFSV Drain tubing shut. See
Figure 3-8 on page 76
.
