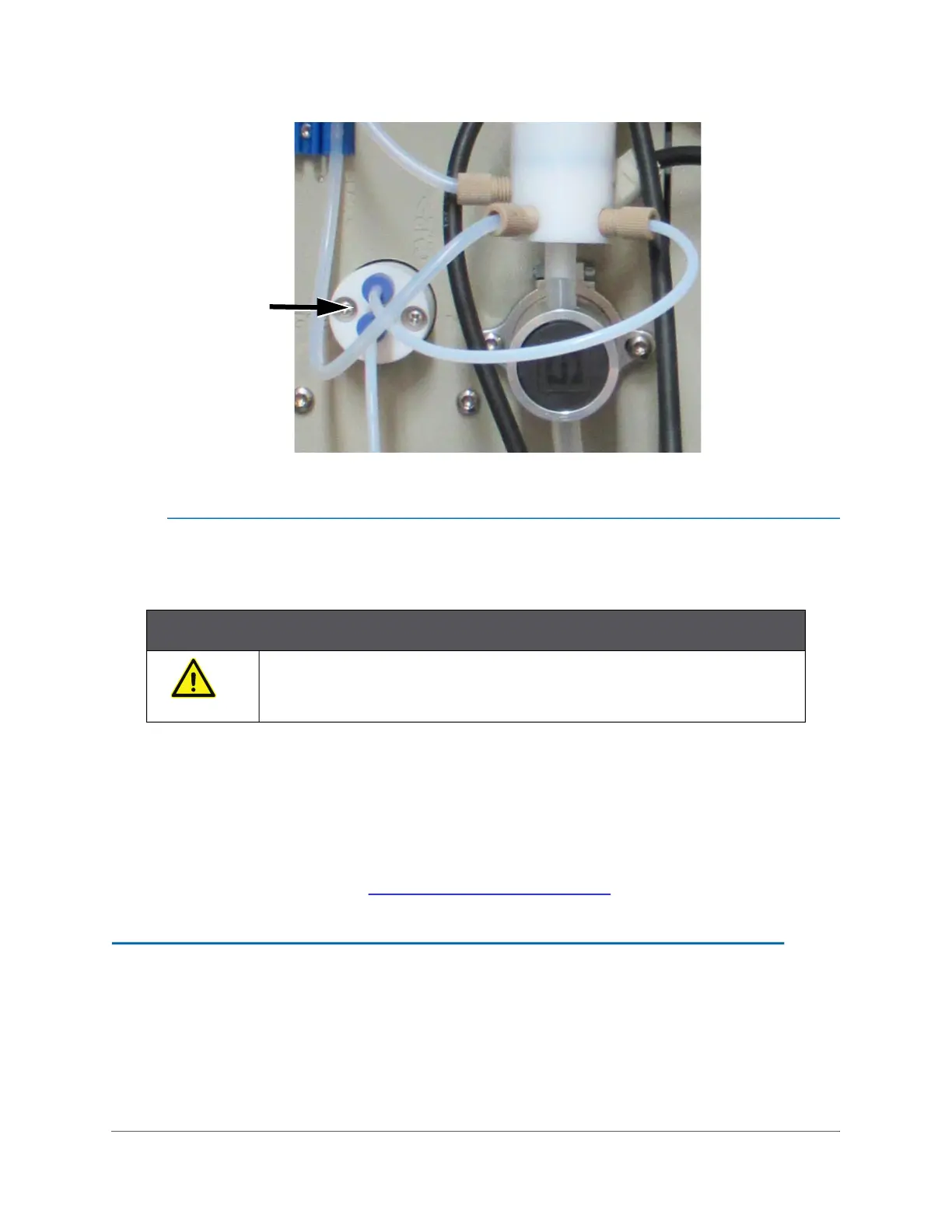

Figure 3-9: Connect the Acid Pump Tubing
Prepare the Acid
Prepare the Acid according to the manufacturer’s instructions and the SDS in an
appropriately labeled carboy (both Acid and Acid Carboy are User supplied). Safely store
the prepared Acid Carboy near the Analyzer. The Analyzer Acid Line (Port 4) comes pre-
installed from the factory. Place the loose end of the Acid Tubing into the prepared
carboy. Ensure that the tubing reaches the bottom of the carboy. The tubing length can be
adjusted or cut, if needed.
For more information, see “Acid Preparation” on page 175.
STEP 8: INSTALL THE DILUTION/RINSE WATER
If using either the Dilution or Rising functions, fill the Carboy (User supplied) with appropriate
dilution and rinse water. Safely store the prepared Carboy near the Analyzer. The Dilution/Rinse
Water Line (Port 3) comes pre-installed from the factory. Place the loose end of the Dilution/
Rinse Water Tubing into the prepared carboy. Ensure the tubing reaches the bottom of the
carboy. The tubing length can be adjusted or cut, if needed.
Warning
Always follow the manufacturer’s instructions and SDS guidelines for
preparation, handling, and disposal of all standards, reagents, and
consumables.
