DIMENSIONS AND LOCATIONS
Appendix A
Sievers TOC-R3 Operation and Maintenance Manual
DLM 95000-01 EN Rev. A 227 © Veolia 2023
Analyzer Dimensions – Front View

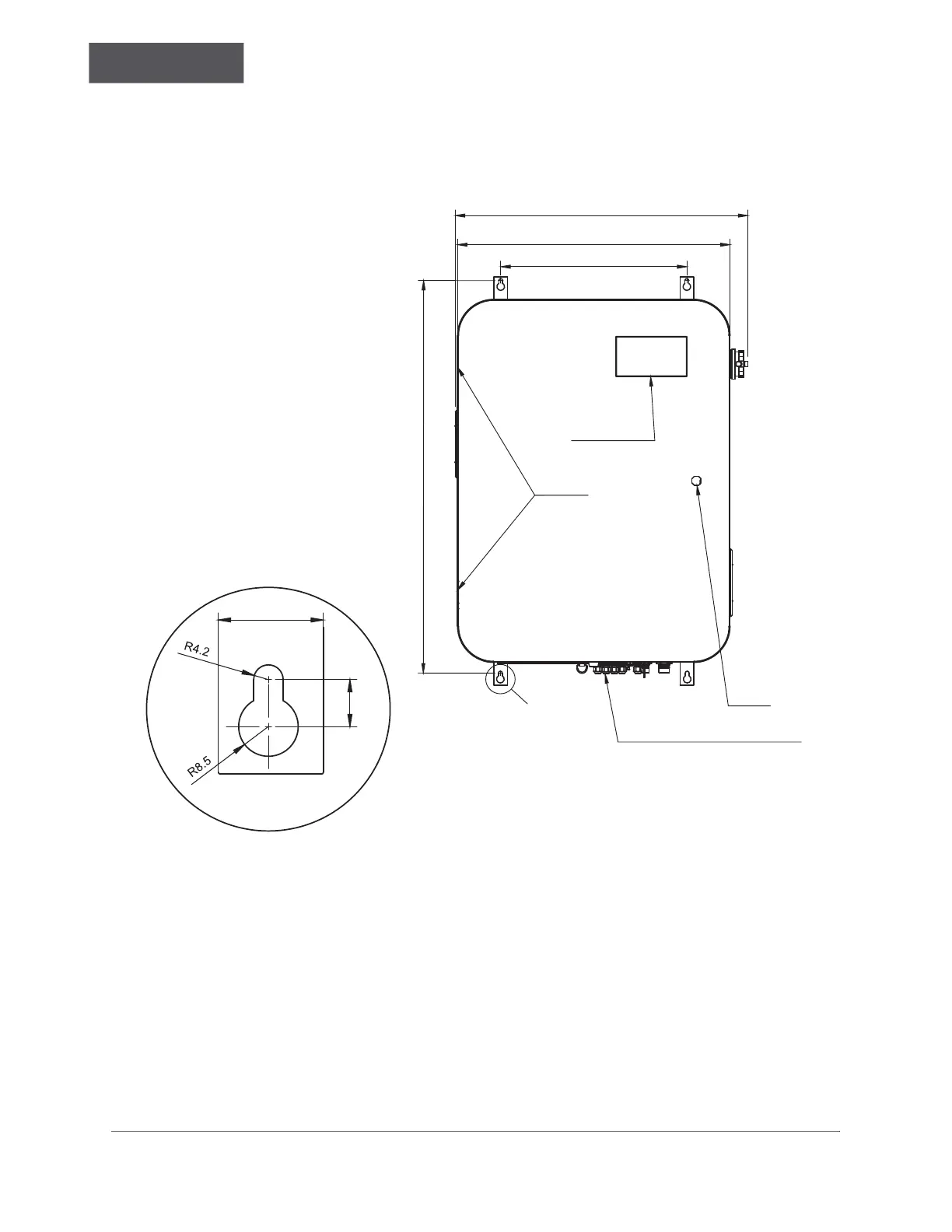

Figure A-1: Analyzer Dimensions, Front View
A
A
Display cutout
Cable and tubing connecƟons
Door lock
door hinges
30 mm
1.2 in
13.39 mm
0.53 in
864.9 mm
34 in
644.3 mm
25.4 in
600 mm
23.6 in
409.9 mm
16.1 in
95inst001
