INSTALLATION
Chapter 3
............
Sievers TOC-R3 Operation and Maintenance Manual
DLM 95000-01 EN Rev. A 79 © Veolia 2023
• “Dilution” is required for some Methods, depending on applications and sample matrix.
• “Rinsing” (and the use of the Auto Rinse features) is highly recommended for all
Methods and applications. For more information, see “Rinsing” on page 130.
STEP 9: PREPARE THE FURNACE
Locate items [2] through [17] in the Shipping Kit. See Table 3-1 on page 61.

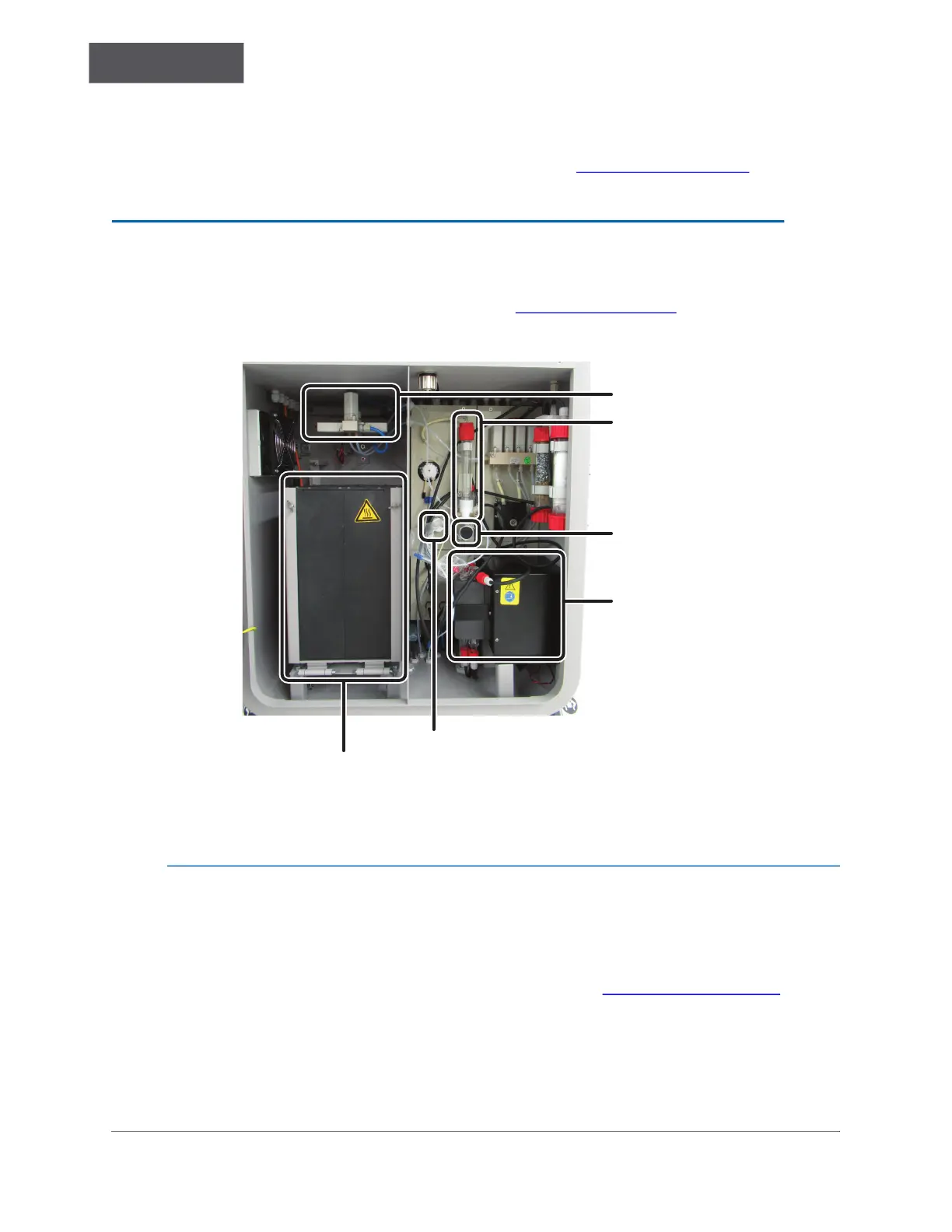

Figure 3-10: Analyzer Locations - First View
Access the Furnace
1. Remove the Furnace Access Cover from the bottom of the Analyzer. Release the four
captive screws anticlockwise. Set the Cover aside somewhere safe.
2. Locate the Furnace in the left side compartment. See Figure 3-10 on page 79
.
3. From the top left corner of the Furnace, disconnect the Wing Screw securing the
Furnace in its upright position. Do not lose this hardware!
Injection Block
MFSV (CM2)
MFSV Drain Valve (Y9)
Gas Cooler Unit (EC1)
Furnace (EB1)
Acid Pump (GP3)
To Next Page
