INSTALLATION
Chapter 3
............
Sievers TOC-R3 Operation and Maintenance Manual
DLM 95000-01 EN Rev. A 83 © Veolia 2023
metal Z-Brackets [9] only touch the High Temperature Gasket [7]! If needed, slide
the slotted Z-Brackets farther away from the center fitting before tightening the
Thumb Screws [17]. See Figure 3-14 on page 83
.

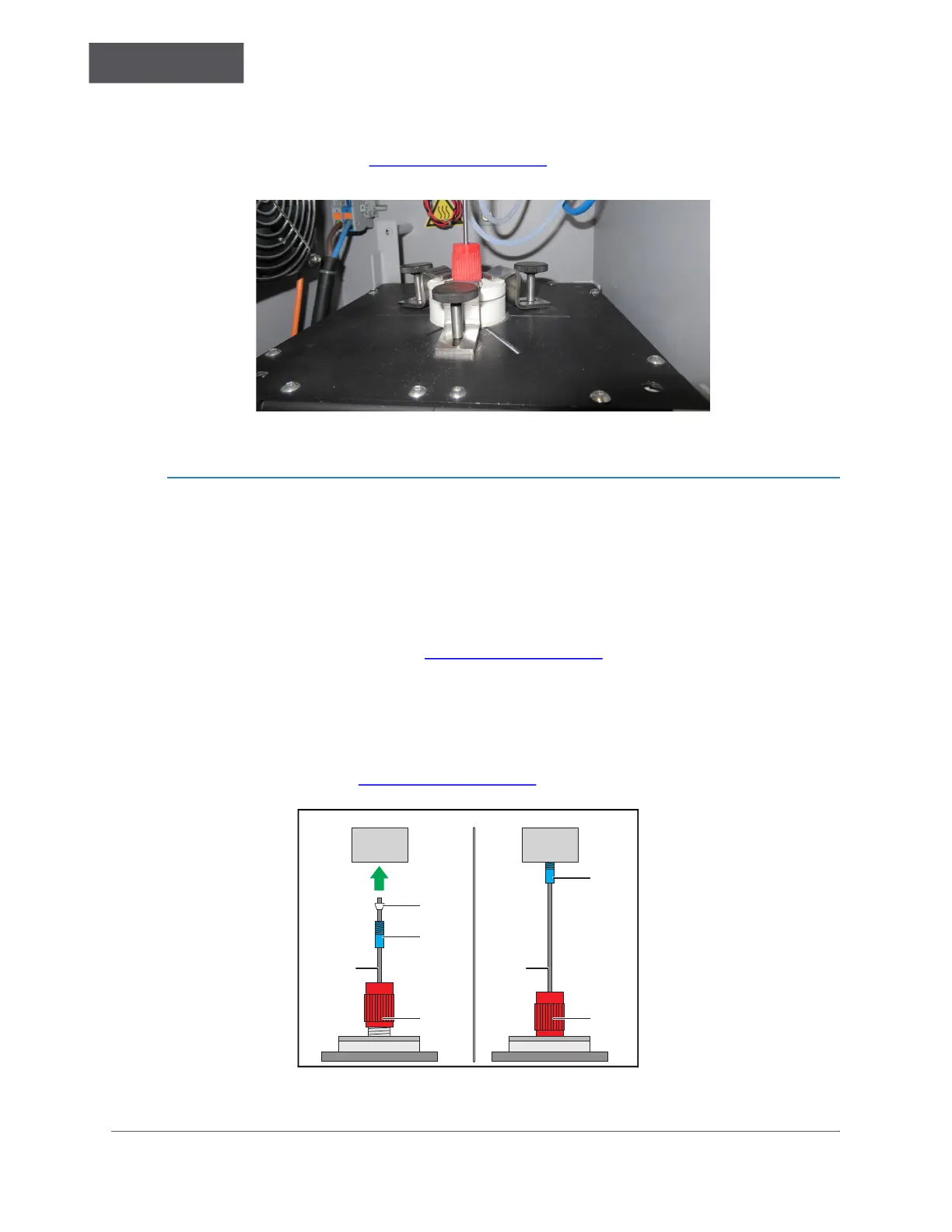

Figure 3-14: Tight Z-Brackets and Thumb Screws
Insert the Injection Needle into the Injection Block
1. Carefully tilt the Furnace back into its vertical, upright position.
2. Secure it in place using the Wing Screw removed earlier.
3. While holding the Injection Needle [15] in one hand, carefully loosen the Compression
Nut [10A] with the other. Important! Do not let go of the Injection Needle! It will fall
into Furnace Cartridge! See Figure 3-15 on page 83
.
4. Carefully slide the Injection Needle [15] up and insert it into the Injection Block port.
Ensure that the Ferrule [14B] slots into the Injection Block and then tighten the
Injection Block Compression Fitting [14A] over the Ferrule [14B] to be finger-tight.
5. Next, re-tighten the Compression Nut [10A] to be finger-tight to secure the Injection
Needle in place. See Figure 3-15 on page 83
.
Figure 3-15: Connect Injection Needle to Injection Block
[15]
[14A]
[14B]
[10A]
[15]
[14A]
[10A]
