Sievers TOC-R3 Operation and Maintenance Manual
DLM 95000-01 EN Rev. A 80 © Veolia 2023
4. Carefully tilt the Furnace forward 45° on its hinge. See Figure 3-11 on page 80.

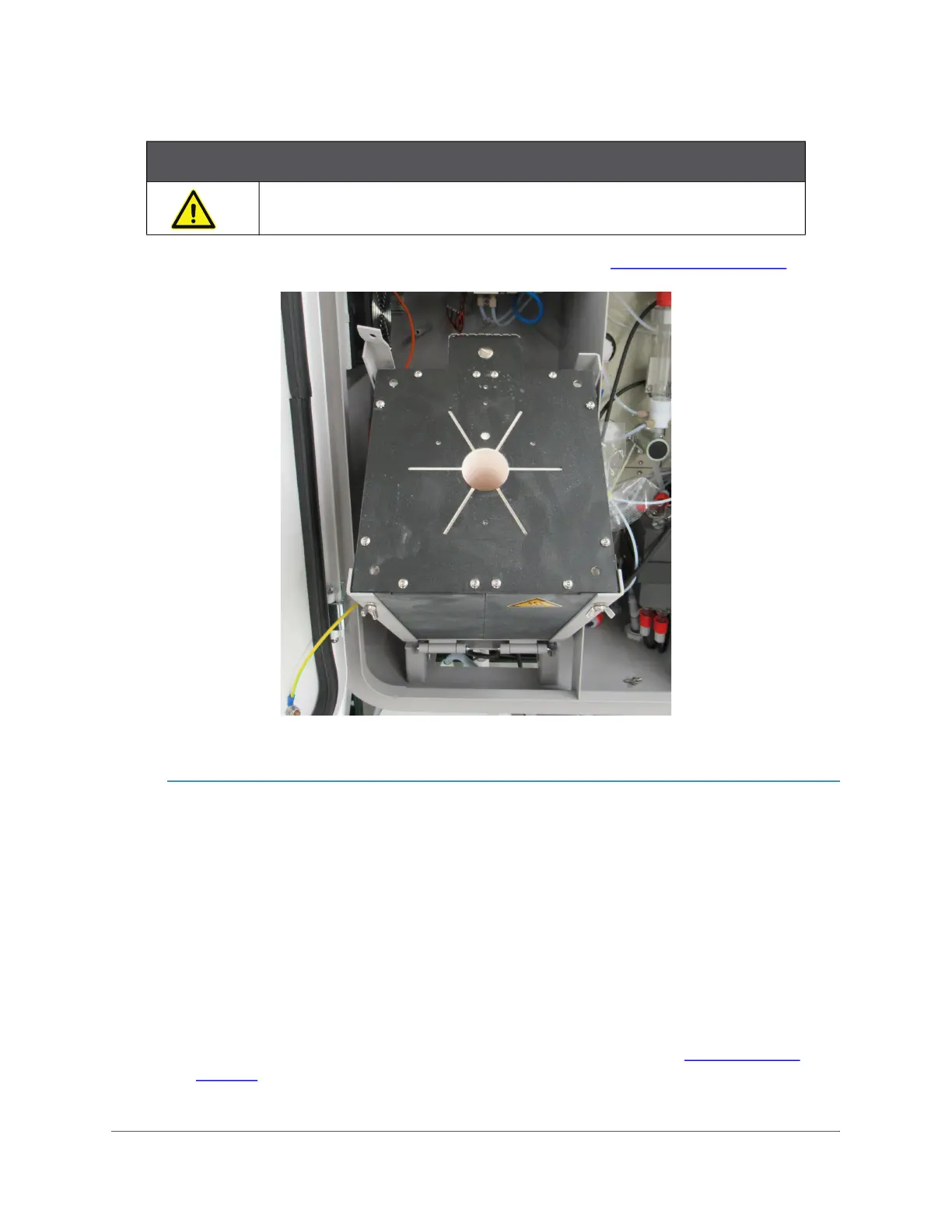

Figure 3-11: Tilt the Furnace
Prepare the Furnace
Locate items [2], [8], [9], and three of the item [17].
1. Slide the Isoplan High Temperature Gasket [8] (Large ID) on to the Furnace Sleeve
[2] until it is flush with the collar.
2. Insert the Furnace Sleeve [2] (and attached Gasket) into the central hole of the
Furnace and push it all they way down until the Gasket sits flush with the Furnace
surface.
3. Working one at a time, install the three Furnace Head Z-Brackets [9] to the top of the
Furnace using the three Thumb Screws [17]. These brackets will be tightened in a
later step. Attach them to the Furnace but keep them loose. See Figure 3-12 on
page 81.
Warning
Caution! Possible pinch point when accessing the Furnace! Keep hands
away from the hinge!
