4-40 Phaser 6180 Color Laser Printer Service Manual
General Troubleshooting
Motor Tests
Main Motor (FULL2/FULL1/HALF1/LOW)
Caution
The Main Motor is in the Main Drive. When performing this procedure,
remove and cover the Print Cartridges to avoid exposure to light.
o
e
The rotational speed of the Main Motor is as follows:
■ LOW < HALF < FULL2 < FULL1
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Transfer Unit (page 8-7).
4. Remove the Print Cartridges (page 8-9).
5. Use a paper clip to secure the Interlock Switch.
6. Perform the Main Motor (FULL2/FULL1/HALF/LOW) test: Engine Diag >
Motor Test > Main Motor (FULL2/FULL1/HALF/LOW).

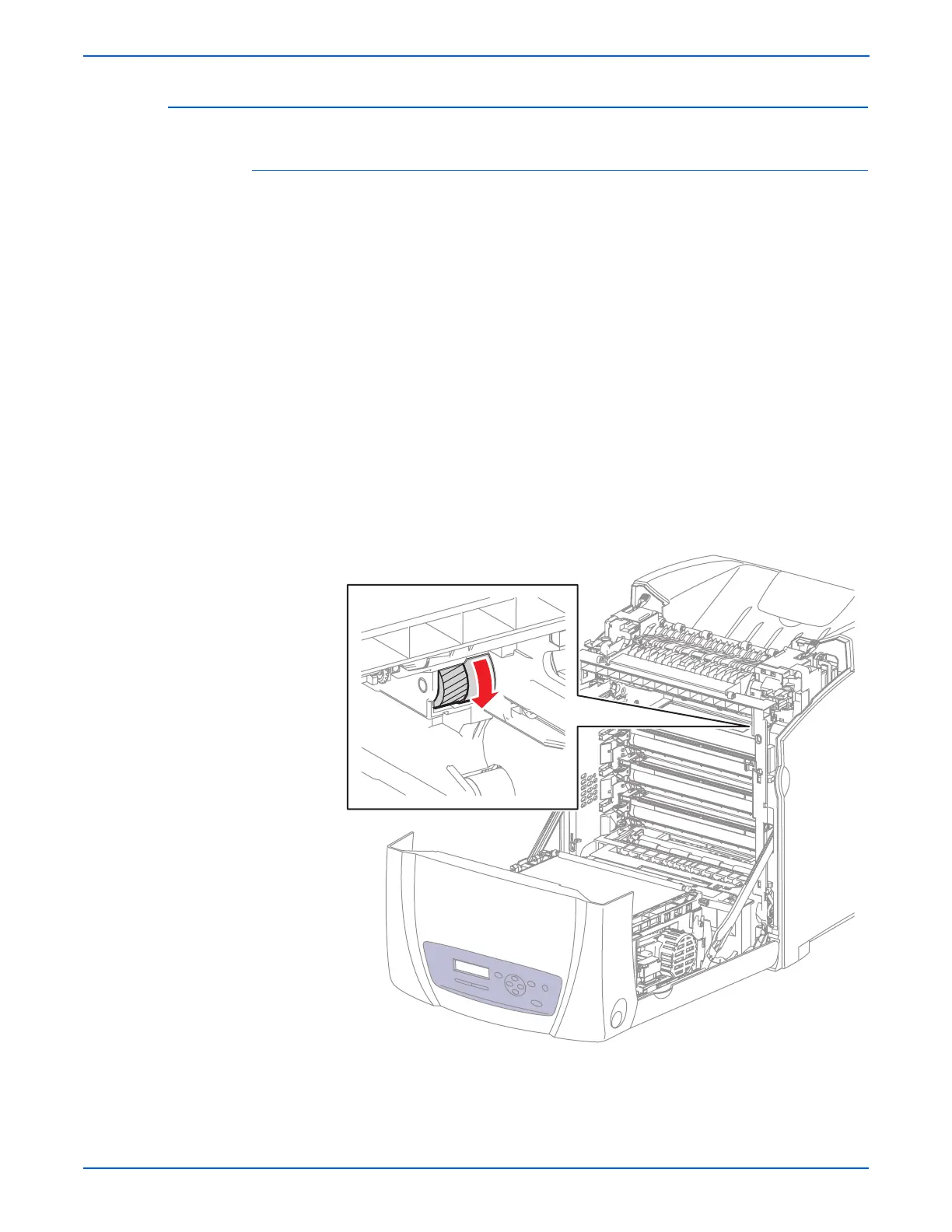

7. Verify that the Main Motor is running and the gear is rotating.
8. Press the Cancel button to stop the Main Motor test.
9. Remove the paper clip from the Interlock Switch.
s6180-365
