58 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly
BIAS (PL5.1.13)
1. Remove the Rear Cover (page 8-11).
2. Remove the Right Side Cover (page 8-12).
3. Remove the Left Side Cover (page 8-13).
4. Remove the Top Cover (page 8-14).
5. Remove the LED (page 8-60).
o
e
It is not necessary to disconnect the connector on the MCU Board for the
following step.
6. Remove the HVPS (page 8-61).

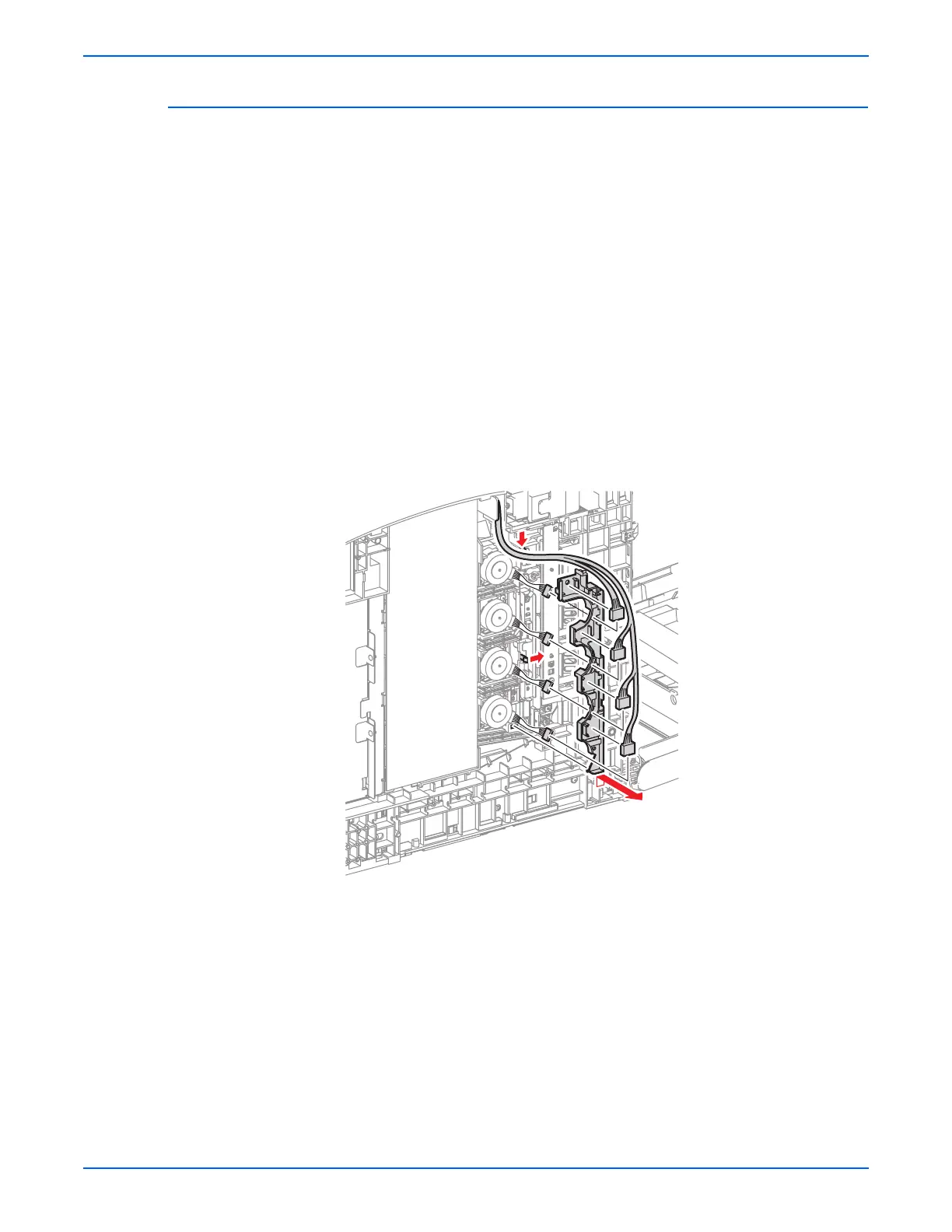

7. Disconnect the Dispenser Motor connectors and release the wiring
harnesses from the Harness Motor Duct.
8. Release the 2 hooks securing the Harness Motor Duct.
9. Slightly shift the Harness Motor Duct upward to release the convex
section from the printer. Place the connectors through the hole of the
Harness Motor Duct and remove the Harness Motor Duct.
s6180-043
To Next Page
