Xerox Phaser 6180 - Tray 1 (MPT) Roll (PL3.1.8)

Phaser 6180 Color Laser Printer Service Manual 37
Service Parts Disassembly
Tray 1 (MPT) Roll (PL3.1.8)
1. Remove the Rear Cover (page 8-11).
2. Remove the Right Side Cover (page 8-12).
3. Remove the MPT Feed Spring (PL3.1.4).

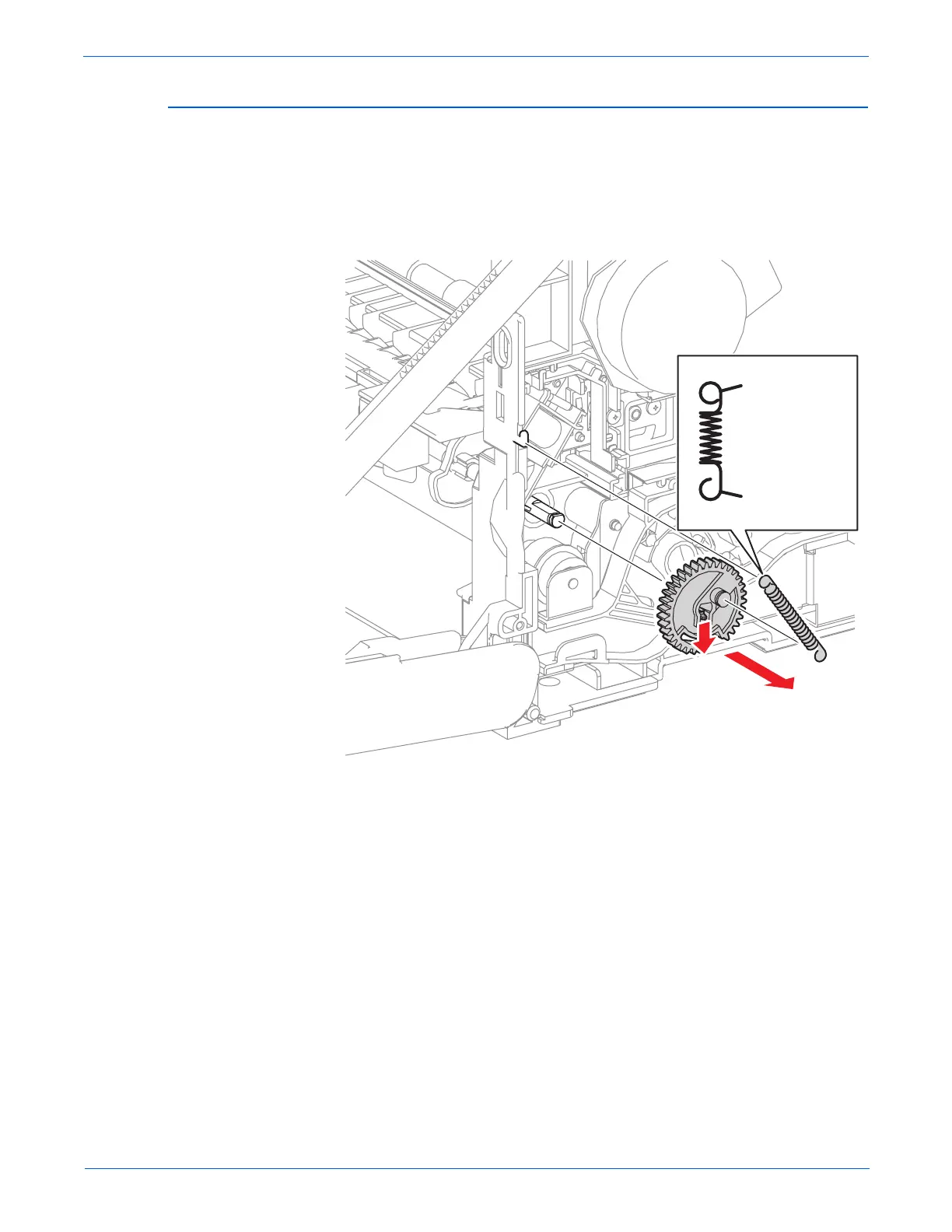

4. Release the hook of the MPT Gear (PL3.1.5) and remove the Gear from
the MPT Shaft (PL3.1.12).
s6180-022
Printer Side
MPT Gear Side
