Phaser 6180 Color Laser Printer Service Manual 89
Service Parts Disassembly
Image Processor Board (PL9.1.27)
1. Remove the Rear Cover (page 8-11).
2. Remove the Right Side Cover (page 8-12).
3. Remove the Left Side Cover (page 8-13).

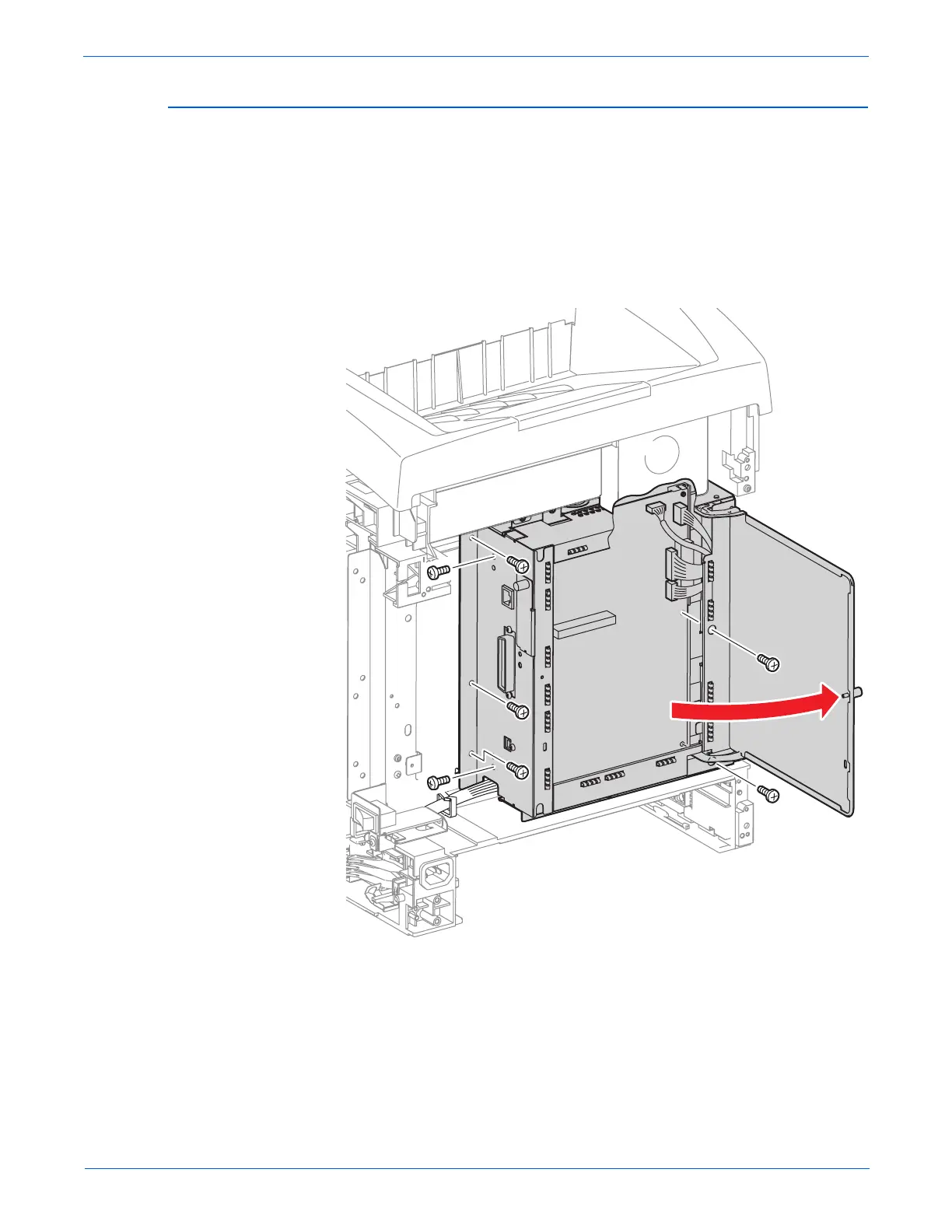

4. Loosen 1 Knurling Screw (PL9.1.22) and open the Window Shield
(PL9.1.21).
5. Disconnect all the Image Processor (I/P) Board connectors.
6. Remove 7 screws (6 mm) securing the IF Shield (PL9.1.28) to the printer.
s6180-038
To Next Page
