Xerox Phaser 6180 - Notations Used in the Wiring Diagrams

10-16 Phaser 6180 Color Laser Printer Service Manual
Plug/Jack and Wiring Diagrams
Notations Used in the Wiring Diagrams

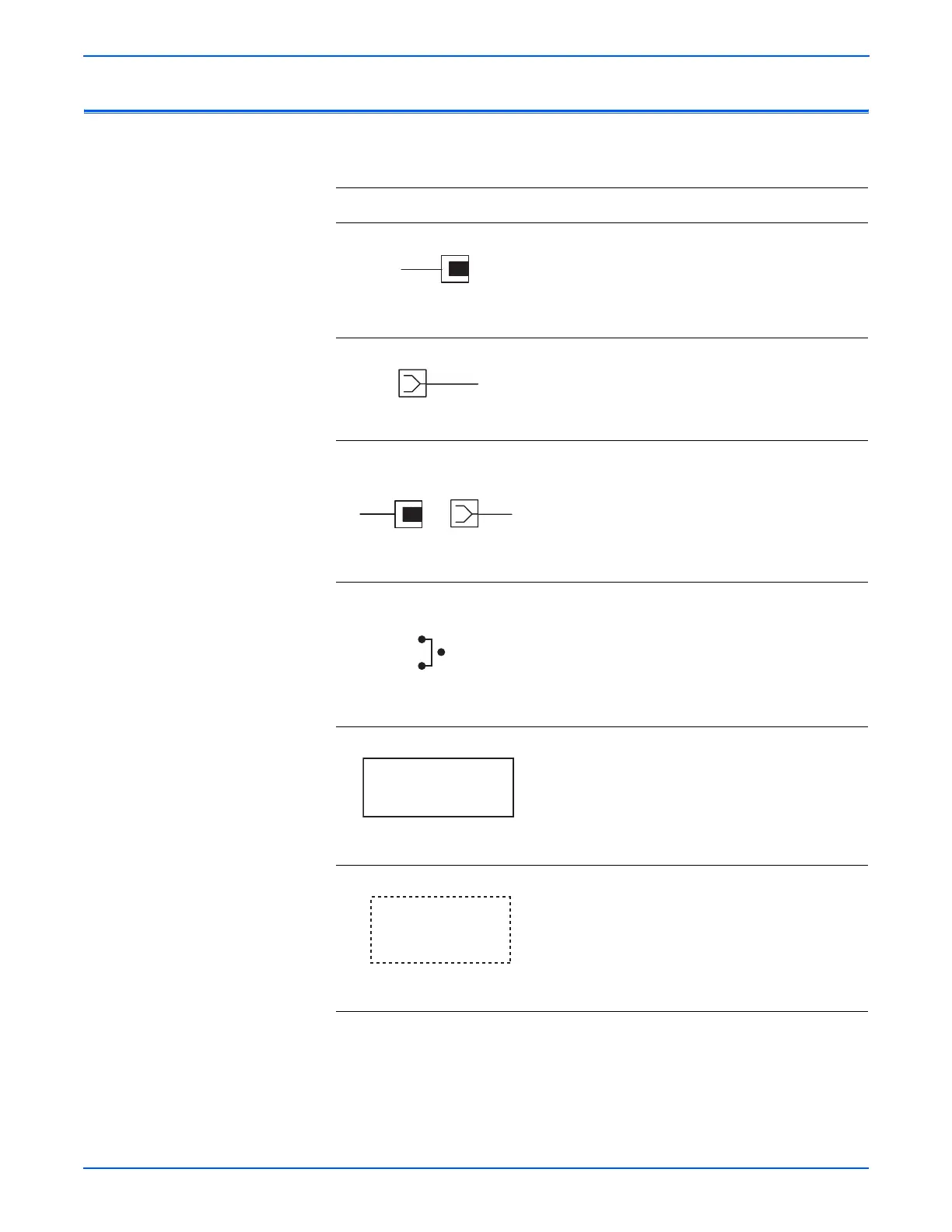

The following table lists the symbols used in the wiring diagrams.
Symbol
Description
Denotes a Plug.
Denotes a Jack.
Denotes Pin yy and Jack yy of the connector Pxx
and Jxx.
Denotes a Jumper Point (JPxxx/xxx). Each end of
the Jumper connection has a numeric
designation.
Denotes the parts.
PL X.Y.Z implies the item “Z” of plate (PL) “X.Y”
in Parts List.
Denotes functional parts attached with functional
parts name.
s6180-467
s6180-468
P/Jxx
YY
s6180-469
JPxxx
s6180-470
Fuser
PL X.Y.Z
s6180-471
Heater
s6180-472
