Phaser 6180 Color Laser Printer Service Manual 107
Service Parts Disassembly
Tray 3 Right Guide (PL12.2.11)
1. Remove Tray 3 from the Optional 550-Sheet Feeder.
2. Remove the Tray 3 Cover (page 8-99).
3. Remove the Tray 3 Right Cover (page 8-98).
4. Remove the Tray 3 Size Switch (page 8-105).

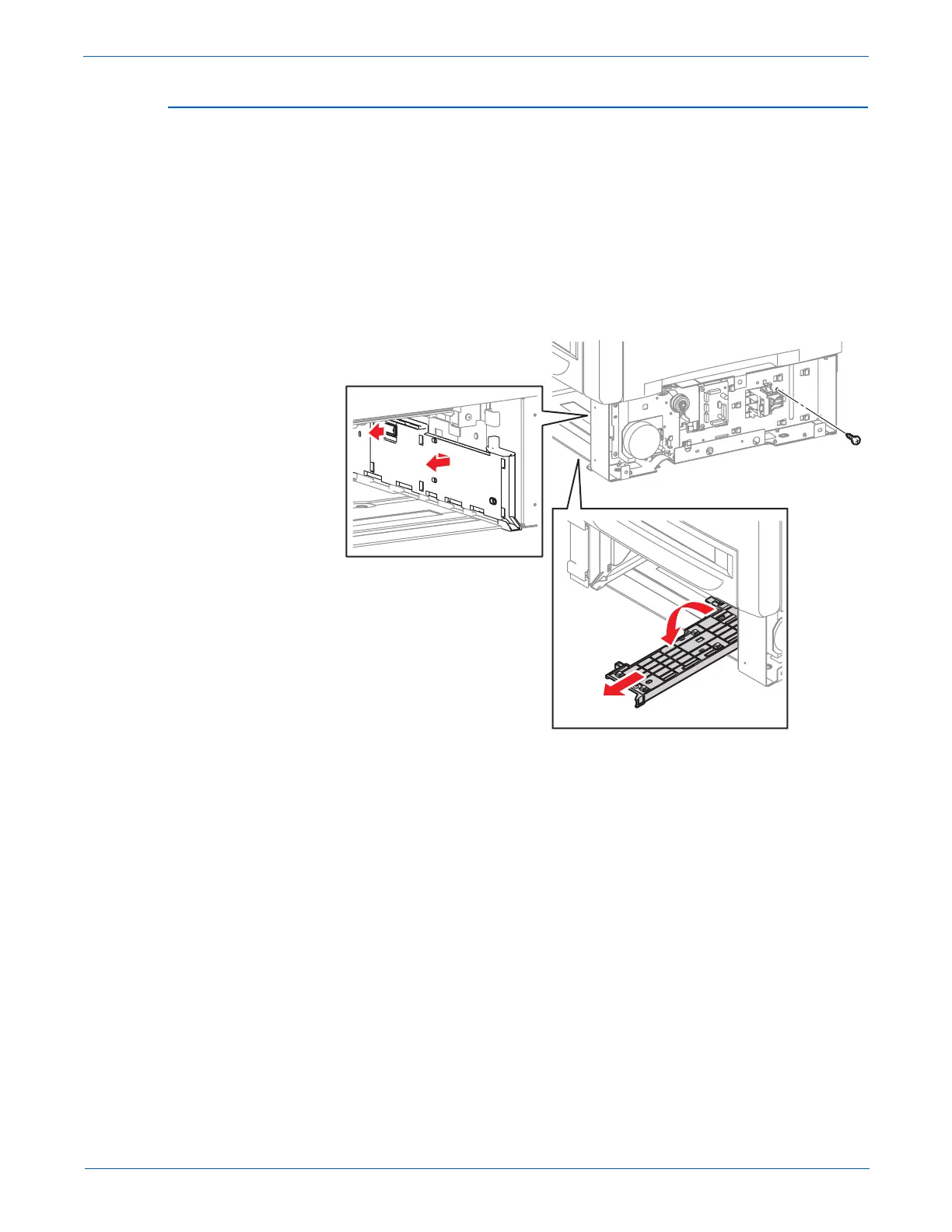

5. Remove 1 screw (8 mm) securing the Tray 3 Right Guide to the Frame
(PL12.2.1).
6. Release the hook securing the Tray 3 Right Guide to the Frame. Push the
Right Tray 3 Guide forward, release the 12 hooks, and push the Tray 3
Right Guide downward to remove it.
s6180-230
To Next Page
