Xerox Phaser 6180 - Standard Orientation of the Printer

Phaser 6180 Color Laser Printer Service Manual 8-3
Service Parts Disassembly
Standard Orientation of the Printer

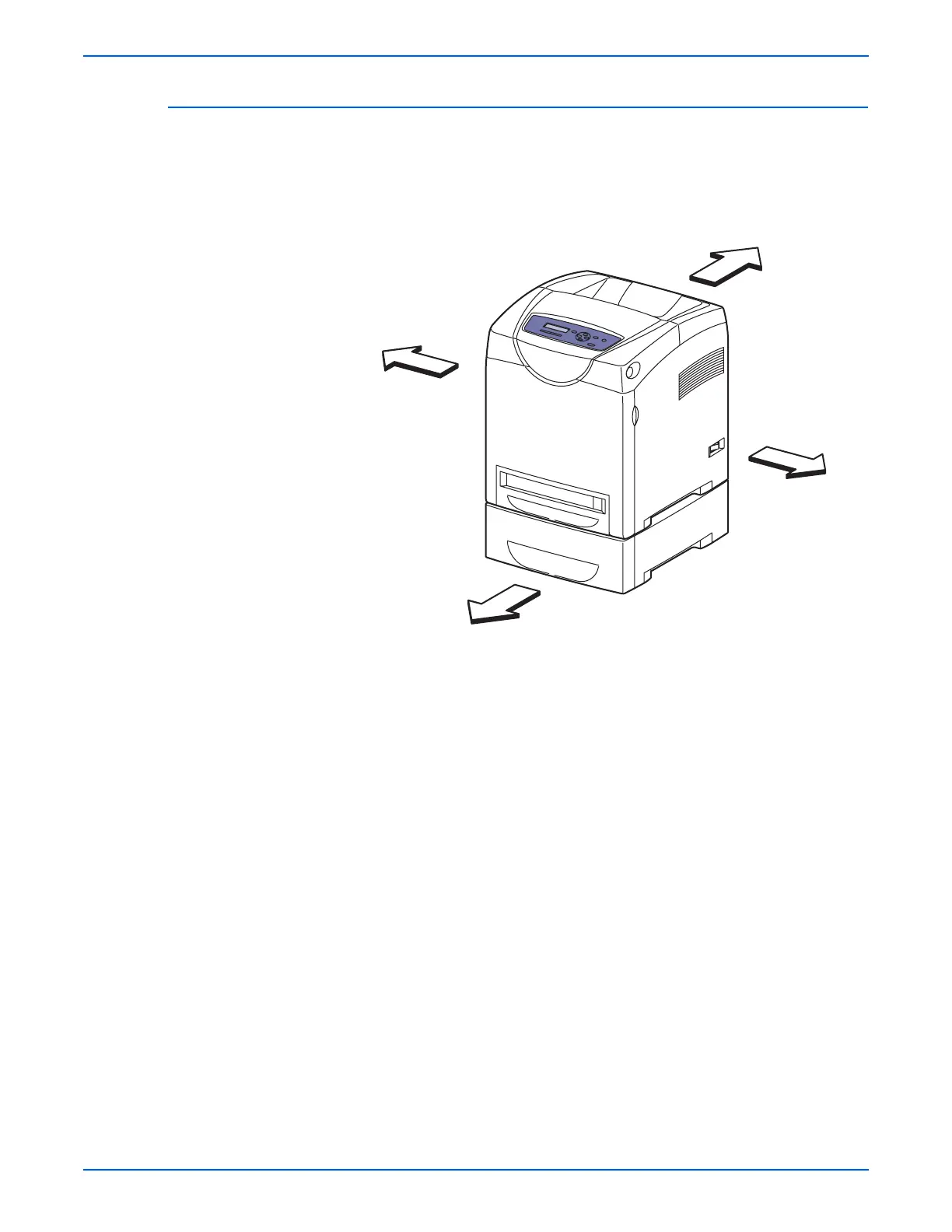

When needed, the orientation of the printer is called out in the procedure as
an aid for locating the printer parts. The following figure identifies the Front,
Rear, Left, and Right sides of the printer.
Rear
Front
Left
Right
s6180-003
