Xerox Phaser 6180 - Left Tray Guide (PL7.1.19)

Phaser 6180 Color Laser Printer Service Manual 71
Service Parts Disassembly
Left Tray Guide (PL7.1.19)
1. Remove Tray 2.
2. Remove the Rear Cover (page 8-11).
3. Remove the Left Side Cover (page 8-13).
4. Remove the Tray 2 Cover (page 8-17).

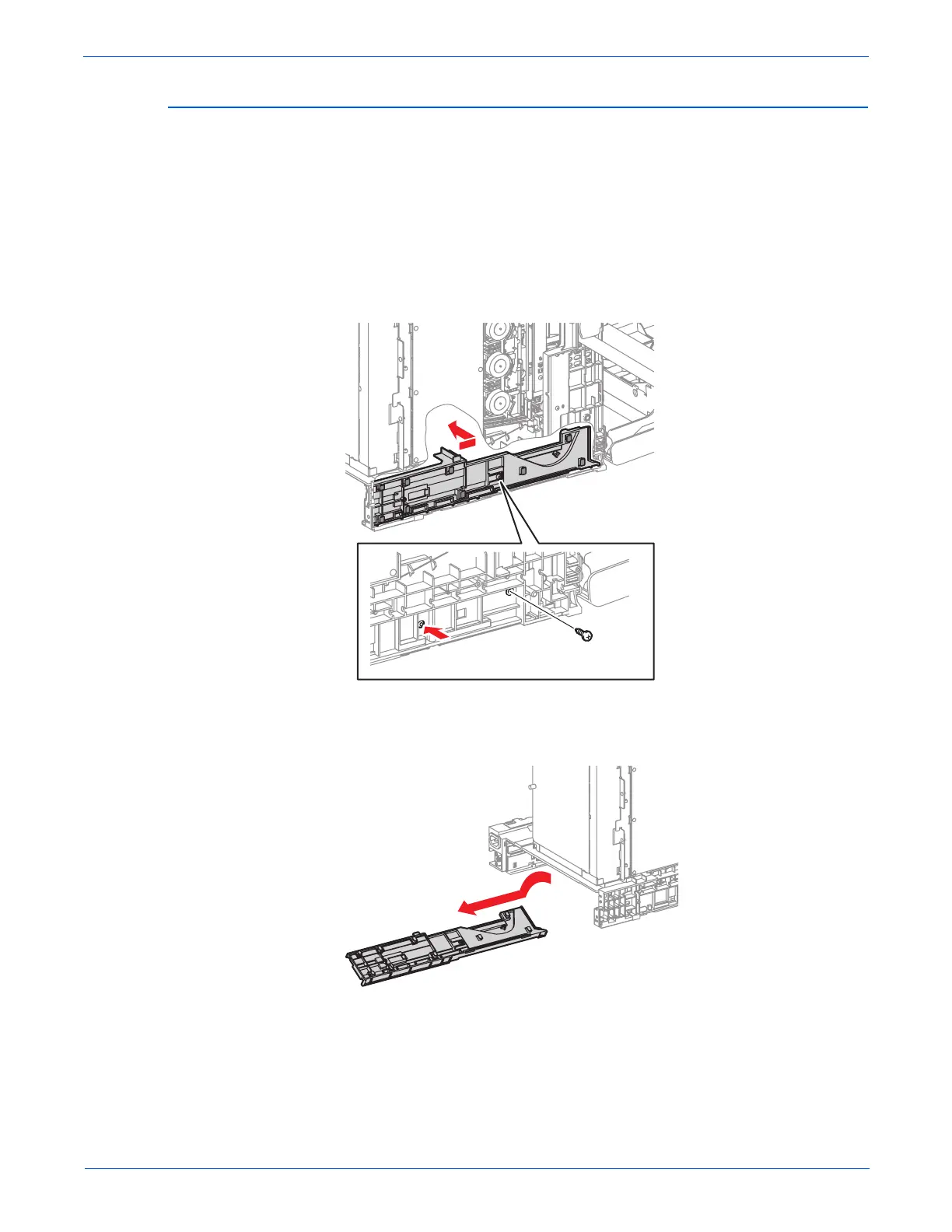

5. Remove 1 screw (8 mm, flanged) securing the Left Tray Guide (PL7.1.19)
to the printer.
6. Shift the Left Tray Guide toward the front side while pushing the notch of
the Left Tray Guide and release 9 hooks from the printer.
7. Push the Left Tray Guide down toward the inside and remove it from the
printer.
s6180-209
s6180-210
