Xerox Phaser 6180 - Bottom Plate - Tray 2;Tray 3 (PL2.2.2)

Phaser 6180 Color Laser Printer Service Manual 29

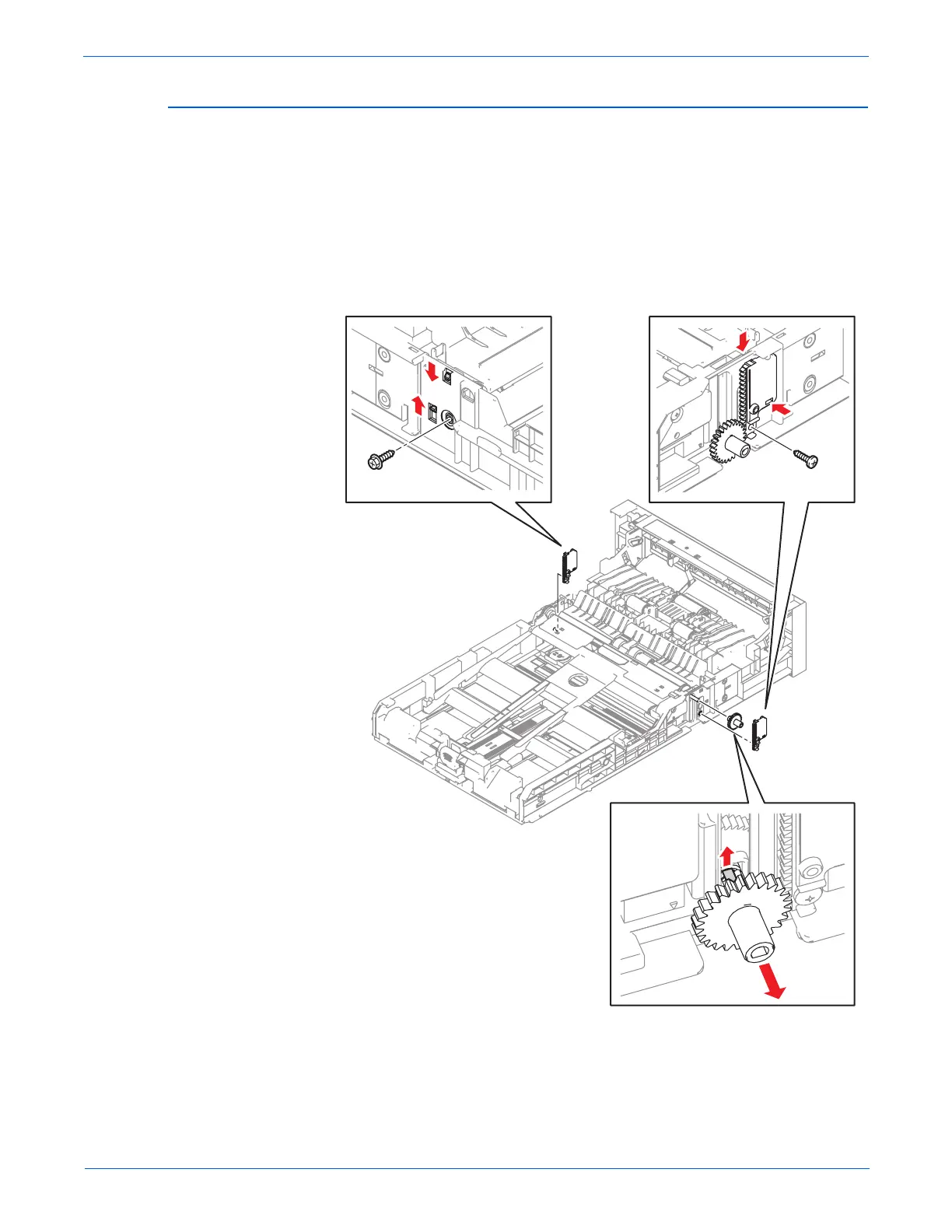

Service Parts Disassembly
Bottom Plate - Tray 2/Tray 3 (PL2.2.2)
1. Remove Tray 2.
2. Remove the Tray 2 left and right Side Guides (page 8-31).
3. Remove 2 screws (10 mm) securing the Gear Lock Plate on the left and
right sides of Tray 2.
4. Use a screwdriver to release the tabs and remove the Gear Lock Plate
(PL2.2.21).
5. Release the hook on the right Bottom Plate Gear (PL2.2.27) and remove
the right Bottom Plate Gear from the Bottom Plate Shaft (PL2.2.5).
s6180-184
