Xerox Phaser 6180 - Duplex Gate Chute (PL6.1.13)

64 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly
Duplex Gate Chute (PL6.1.13)

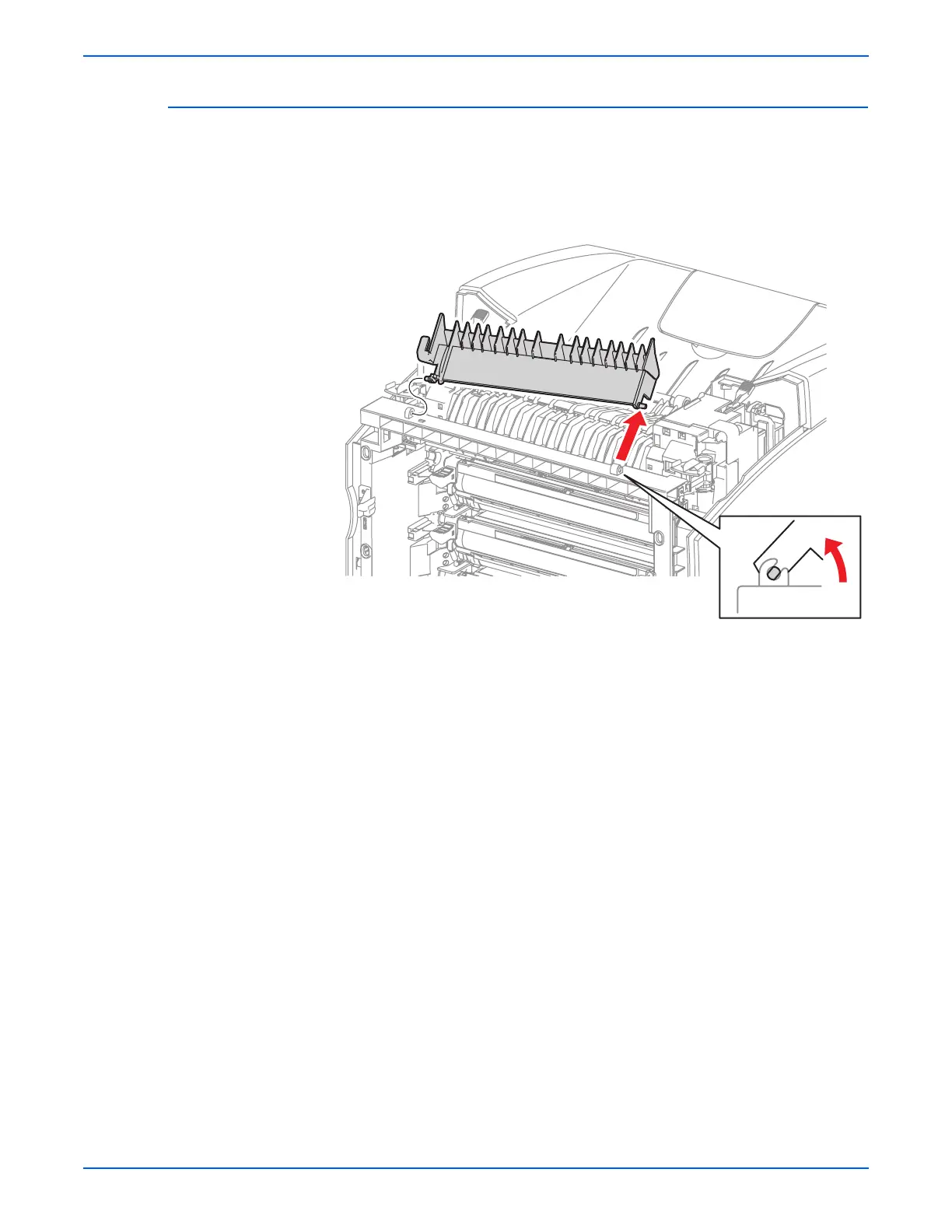

1. Open the Duplex Gate Chute approximately 45° and align the cut surface
of the axis on the right side of the Duplex Gate Chute with the notch on
the printer.
2. Detach the axis on the left side of the Duplex Gate Chute from the hole of
the printer and remove the Chute.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Ensure to open the Duplex Gate Chute at approximately 45° angle
and align the cut surface of the shaft on the right side of the Chute
with the notch on the printer.
s6180-013
