Xerox Phaser 6180 - Covers; Rear Cover (PL1.1.4)

Phaser 6180 Color Laser Printer Service Manual 8-11
Service Parts Disassembly
Covers
Rear Cover (PL1.1.4)

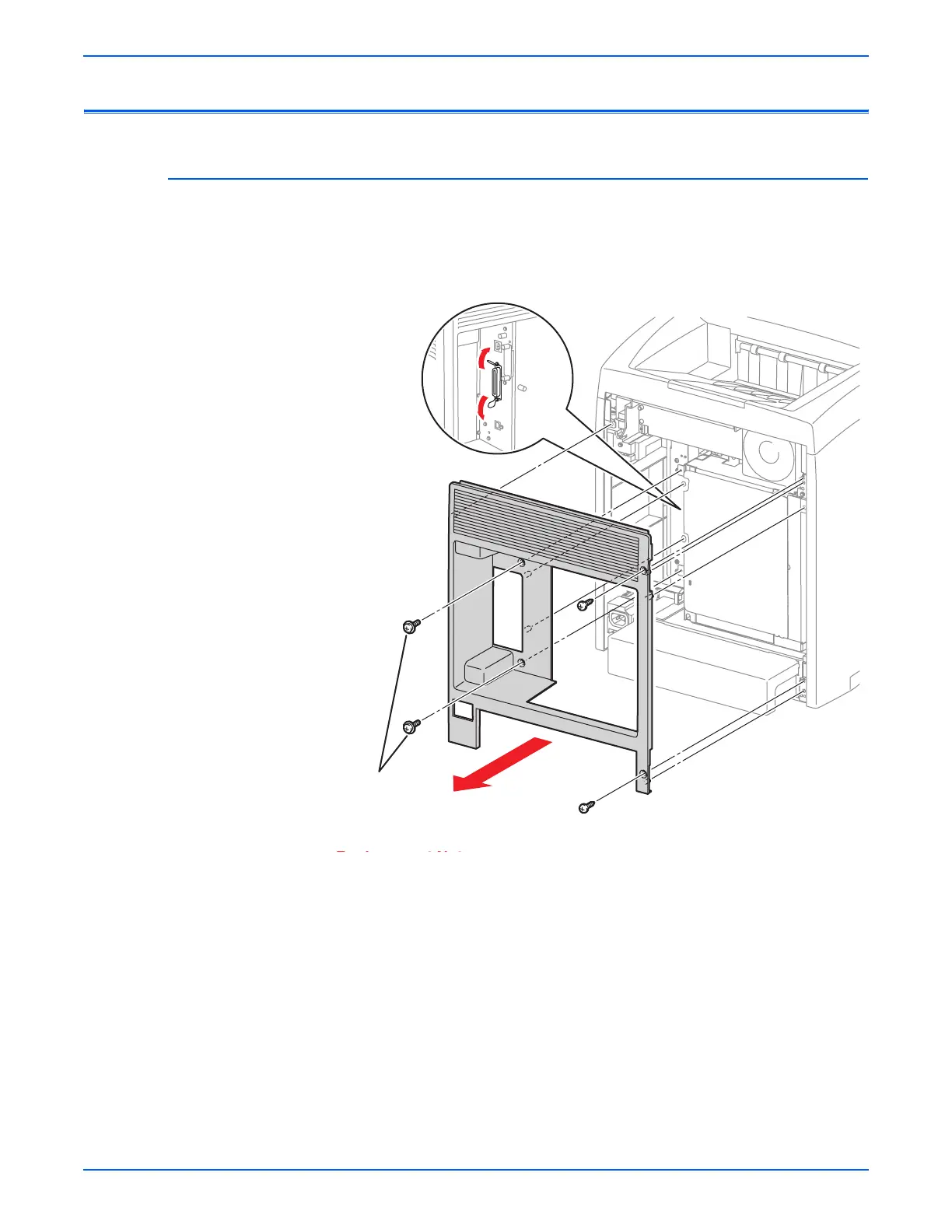

1. Remove 2 screws (10 mm) and 2 screws (8 mm, flanged) securing the
Rear Cover.
2. Push the metal clips on the Parallel connector against the shield and
remove the Rear Cover.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Ensure to hold down the metal clips on the Parallel connector while
inserting the Rear Cover to prevent bending the clips.
s6180-020
Flanged Metal
Screws
