20 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly
Tray 1 (MPT) Base (PL1.2.26)

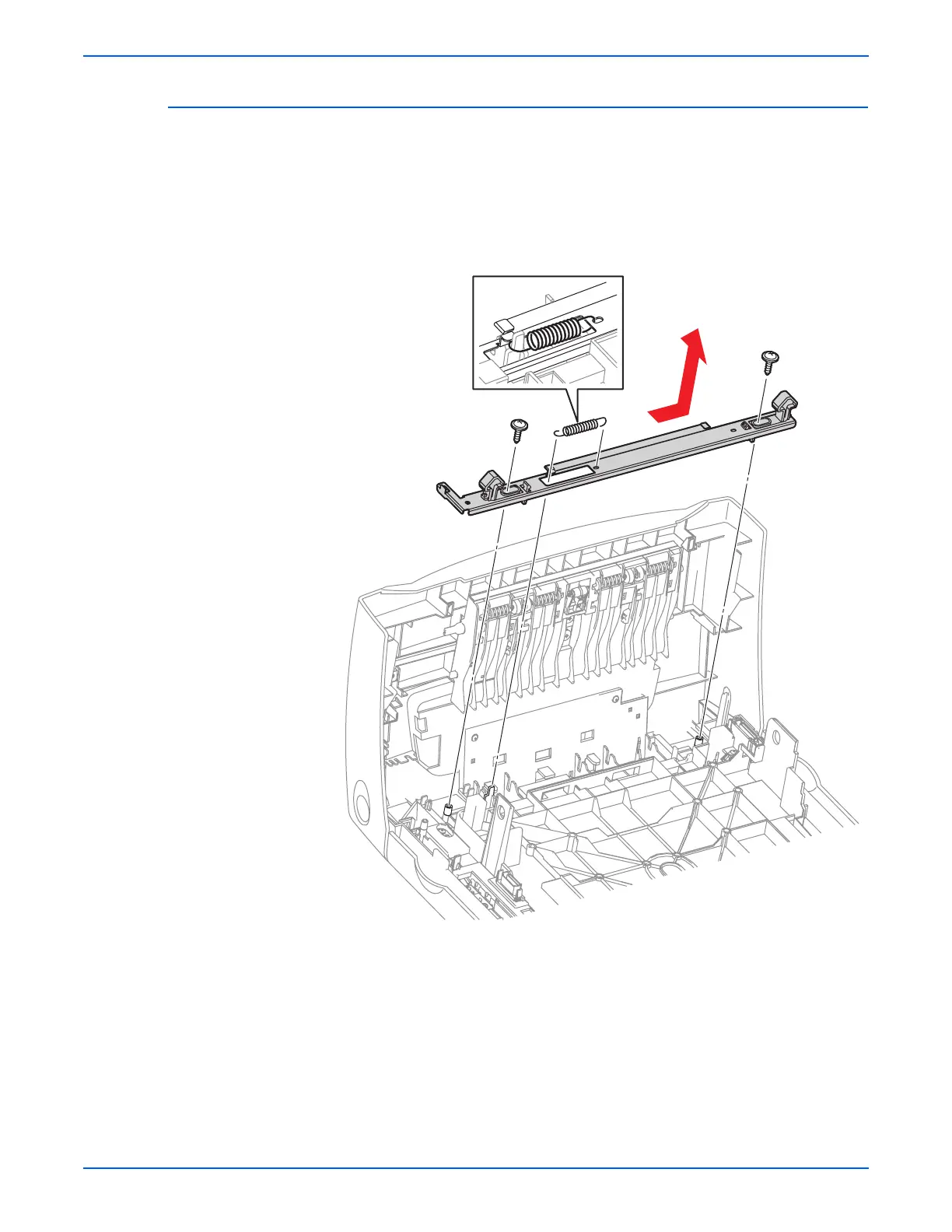

1. Remove the Duplex Unit (page 8-94).
2. Remove the Latch Spring (PL1.2.3) from the Latch Plate (PL1.2.2).
3. Remove 2 screws (black, 10 mm, flanged) securing the left and right sides
of the Front Latch (PL1.2.4).
4. Simultaneously shift the Latch Plate and the Front Latch to the left and
remove the parts from the Front Cover.
s6180-019
