Xerox Phaser 6180 - Feed Clutch (PL3.1.20)

42 Phaser 6180 Color Laser Printer Service Manual
Service Parts Disassembly

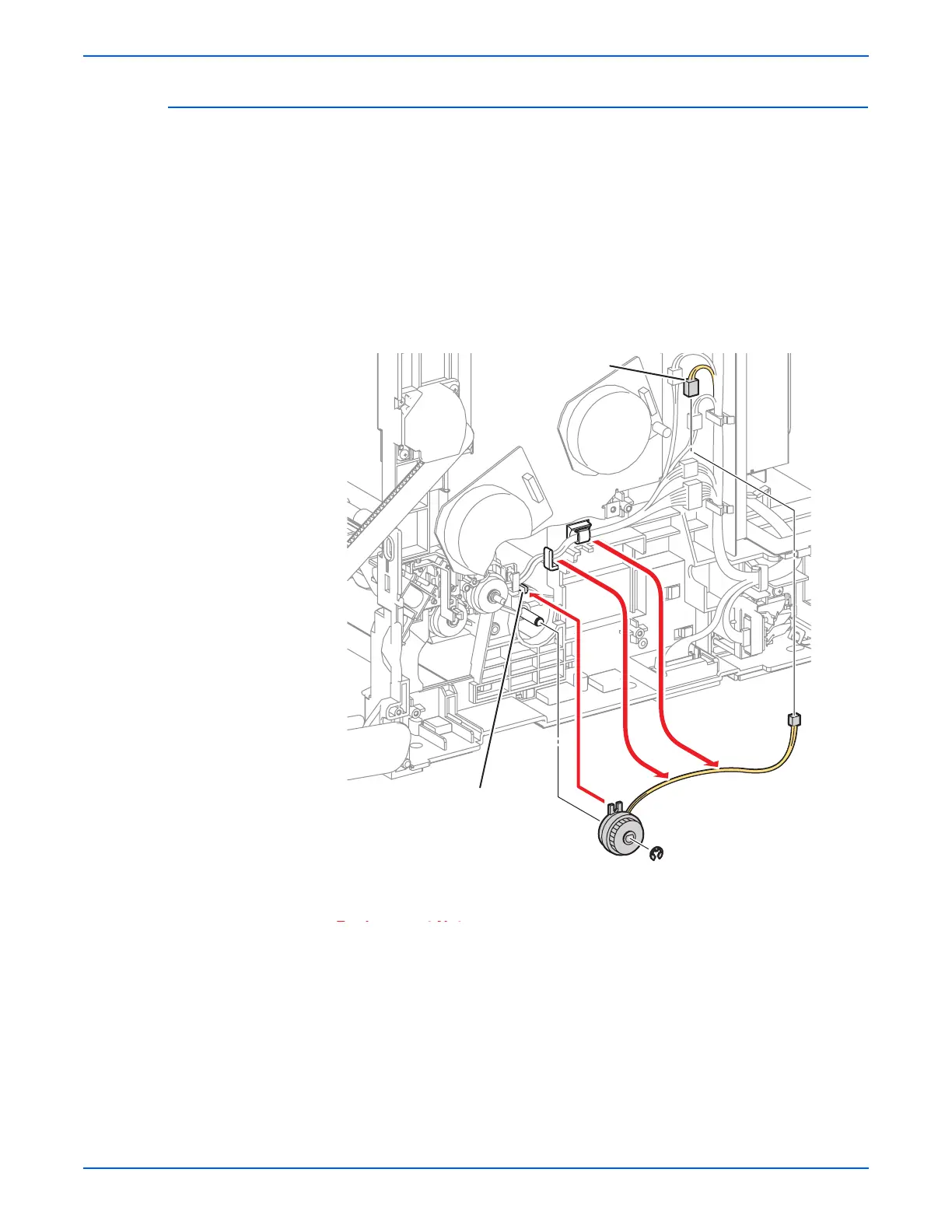

Feed Clutch (PL3.1.20)
1. Remove Tray 2.
2. Remove the Rear Cover (page 8-11).
3. Remove the Right Side Cover (page 8-12).
4. Remove the Drive Assembly (page 8-76).
5. Disconnect the Feed Clutch connector P/J235.
6. Release the yellow Feed Clutch wiring harness from the clamp and the
hook on the printer frame.
7. Remove the E-ring securing the Feed Clutch to the Feeder (PL3.2.1).
8. Remove the Feed Clutch from the Feeder.
R
ep
l
acemen
t
N
o
t
e
R
ep
l
acemen
t
N
o
t
e
Ensure to match the color of the Clutch Harness and the color of the
Clutch positioning rib. The Feed Clutch Harness is Yellow.
s6180-255
Yellow
P/J235
