Phaser 6180 Color Laser Printer Service Manual 93
Service Parts Disassembly
Multi-Protocol Network Card (PL9.1.30)
1. Turn the printer power Off.
2. Disconnect the power cord.
3. Loosen 1 Knurling Screw (PL9.1.22) and open the Window Shield
(PL9.1.21).

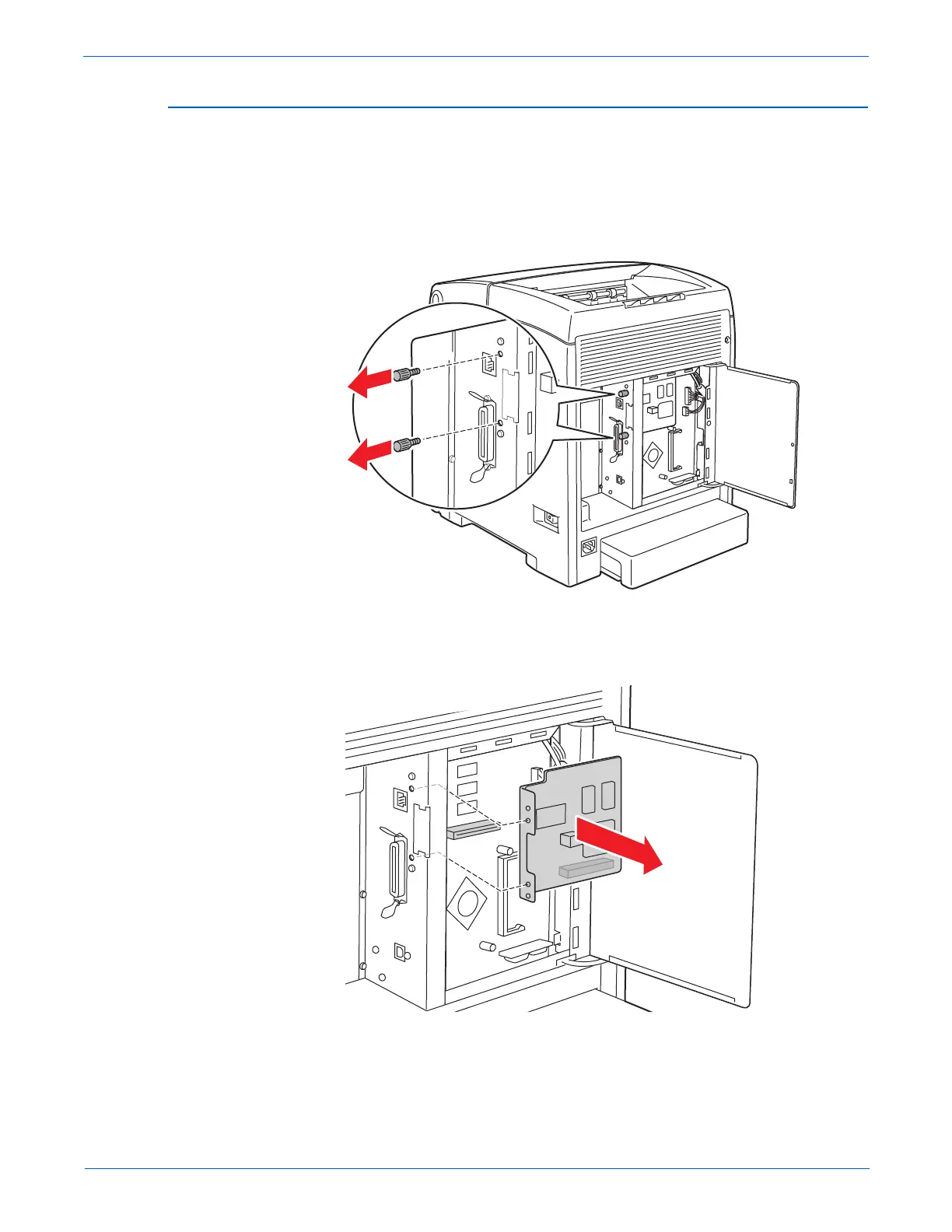

4. Loosen 2 screws securing the Multi Protocol Network Card (MPC).
5. Disconnect the MPC from the Image Processor Board (PL9.1.27) and
remove the card.
s6180-501
s6180-502
